Connector pin arrangement dimensions, Connection (female side) connector cable, 1st with pre-wired connector – SMC Networks Reed Switch Solid State Switches User Manual

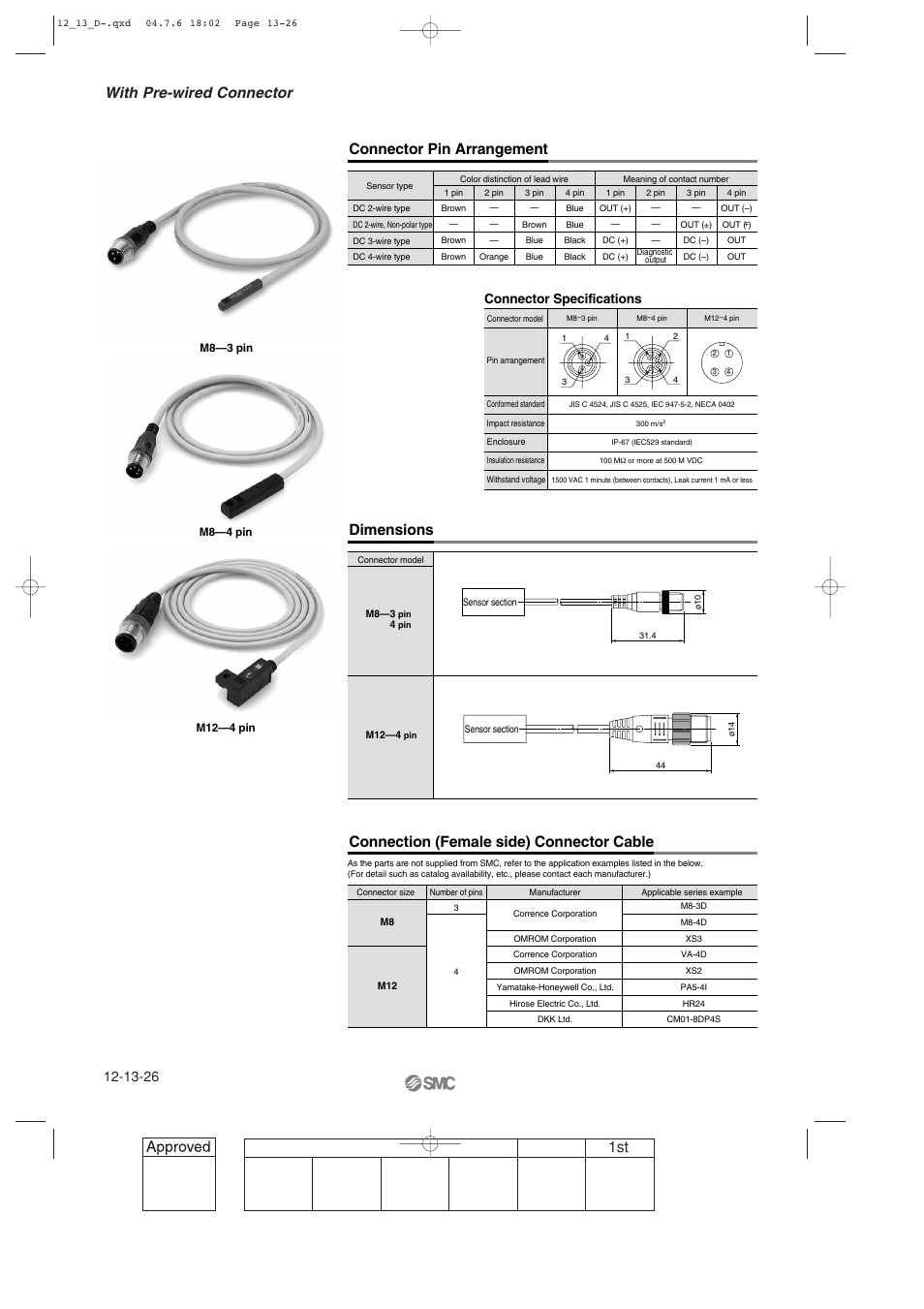

Page 26: Connector specifications
