Page 54
-52-
Model M1113 (Mfg. Since 2/08)
PA
RT
S
200
201
202
203
203
204
205
205
206
206
207
207
208
209
210
211
212
213
214
215
216
217

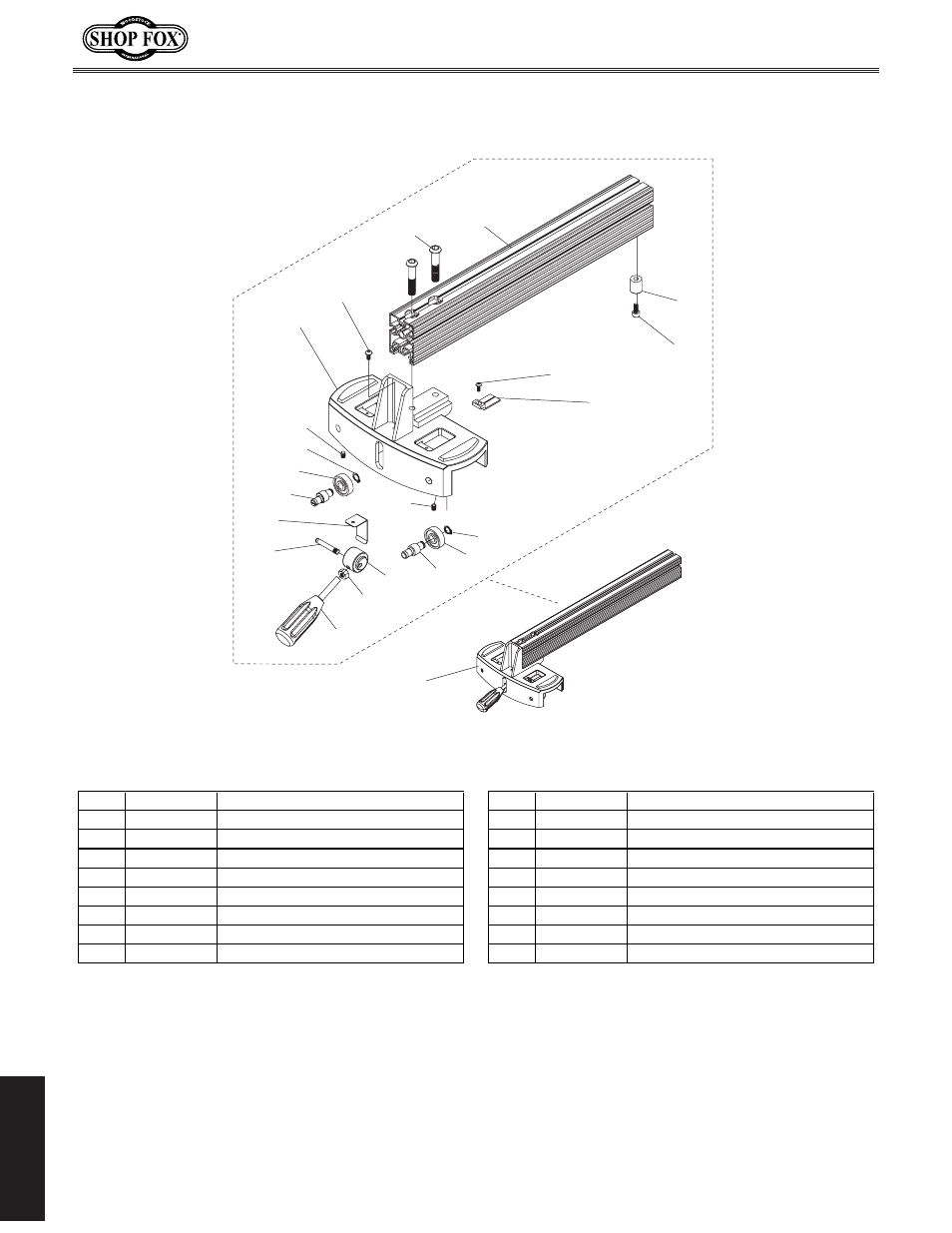

Fence.Breakdown
REF PART #
DESCRIPTION
REF PART #
DESCRIPTION
200
XM1113200 FENCE ASSY
209
XM1113209 PIN 6 X 43
201
XM1113201 FENCE BODY
210
XM1113210 PLATE
202
XPCAP64M
CAP SCREW M10-1.5 X 25
211
XM1113211 FENCE LOCK HANDLE
203
XPBHS11M
BUTTON HD CAP SCR M6-1 X 10
212
XPN03M
HEX NUT M8-1.25
204
XM1113204 FENCE BASE
213
XM1113213 LOCK MECHANISM
205
XPSS11
SET SCREW 1/4-20 X 1/4
214
XM1113214 BEARING SHAFT
206
XPR01M
EXT RETAINING RING 10MM
215
XM1113215 FENCE SCALE INDICATOR PLATE
207
XP6200
BALL BEARING 6200ZZ
216
XPCAP04M
CAP SCREW M6-1 X 10
208
XM1113208 ECCENTRIC SHAFT
217
XM1113217 RUNNER
