-14-
Model M1113 (Mfg. Since 2/08)
SE
TU
P

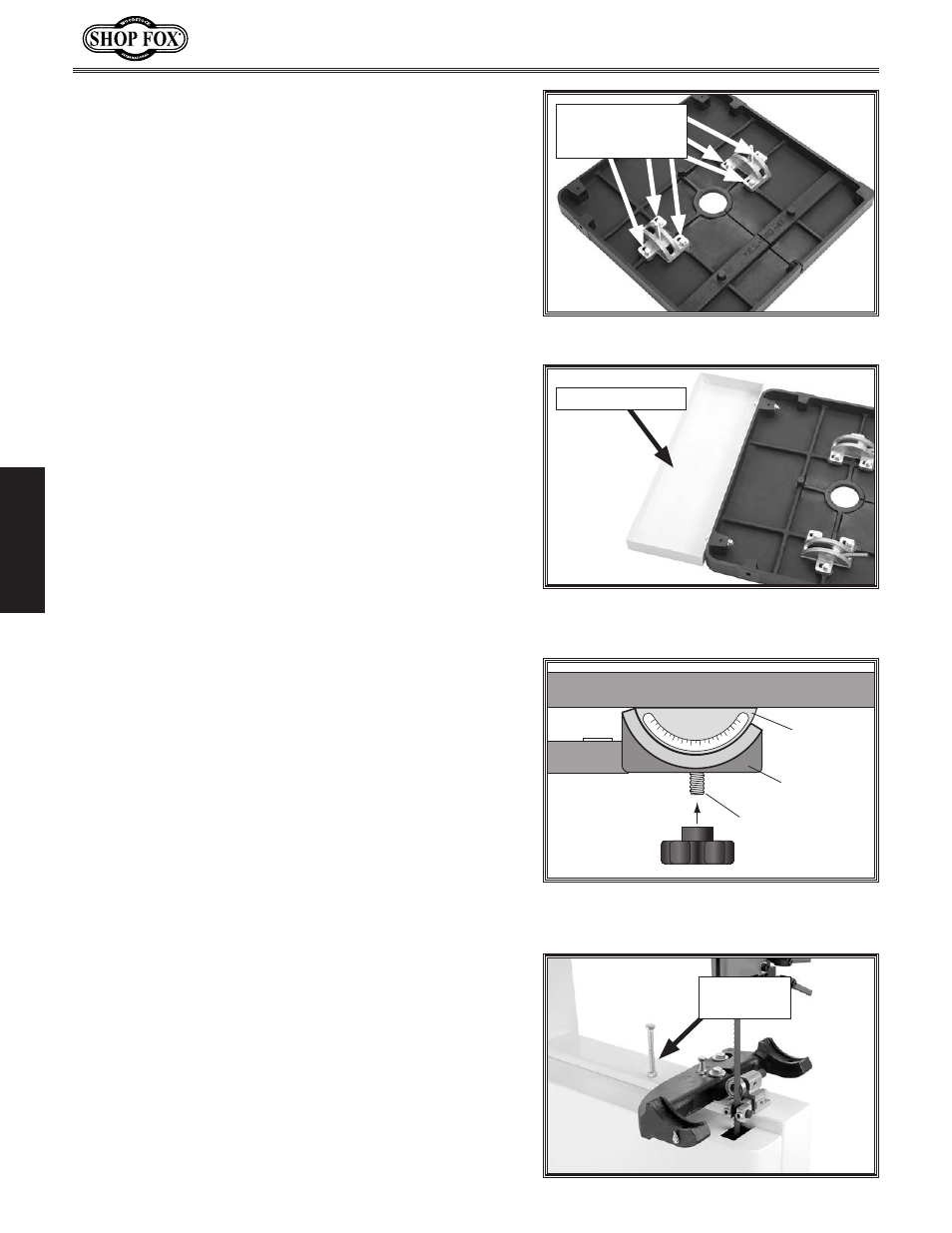

To.assemble.the.bandsaw,.do.these.steps:
1.. Place the bandsaw table upside down on a flat sur-
face (preferably a workbench) and make sure the
table trunnion mounting bolts ( Figure.9) are tight.
Assembly
Figure.9. Table trunnion mounting bolts.
Table
Trunnion
Table
Trunnion
Base
Trunnion Bolt
Trunnion Knob
Figure.11. Installing the table on trunnion
base.
Figure.12. Table stop bolt.
Table Stop
Bolt
4. Thread the two table trunnion knobs onto the trun-
nion bolts, as illustrated in Figure.11.
5.. Adjust the table stop bolt (Figure.12) so the table is
approximately perpendicular to the blade. (Precise
adjustment of the table stop bolt will be covered
later.)
6. Place the table insert in the center of the table, so
it sits flush with the table top surface.
7. Insert the table pin into the end of the table slot.
Figure.10. Table extension attached to
table on flat surface.
2.. Attach the table extension to the table with the two
5 ⁄
16
-18 x 2" hex bolts, two 5 ⁄
16
-18 hex nuts, and four
5 ⁄
16
" flat washers, as shown in Figure.10. Make sure
that the table and table extension are firmly pressed
against the flat surface and tighten the bolts/nuts.
3. Remove the table pin from the table slot, fit the
table around the blade, and rest the table trunnions
on the trunnion base, making sure the trunnion bolts
extend through the bottom of the trunnion base.
Table Trunnion
Mounting Bolts
Table Extension
