-23-
Model M1113 (Mfg. Since 2/08)
SE
TU
P
To ensure cutting accuracy when the table is first
installed, align the table so the miter slot is parallel to
the bandsaw blade. This procedure works best with the
largest blade that the machine accepts.
To.align.the.miter.slot.parallel.to.the.bandsaw.blade,.
do.these.steps:
1. Make sure the blade is correctly tracked and ten-
sioned.
2.. DISCONNECT BANDSAW FROM POWER!
3. Loosen the trunnion bolts that secure the trunnions
to the table.
4. Place an accurate straightedge along the blade. The
straightedge should lightly touch both the front and
back of the blade (the flat part only) without touch-
ing the blade teeth.
5. Use a fine ruler to gauge the distance between the
straightedge and the miter slot. The distance you
measure should be the same at both the front and
back ends of the miter slot, as indicated by positions
" A" and "B" in Figure.33.
6. Adjust the table until the distance between the
blade and miter slot is equal at both ends.
7. Tighten the trunnion bolts.

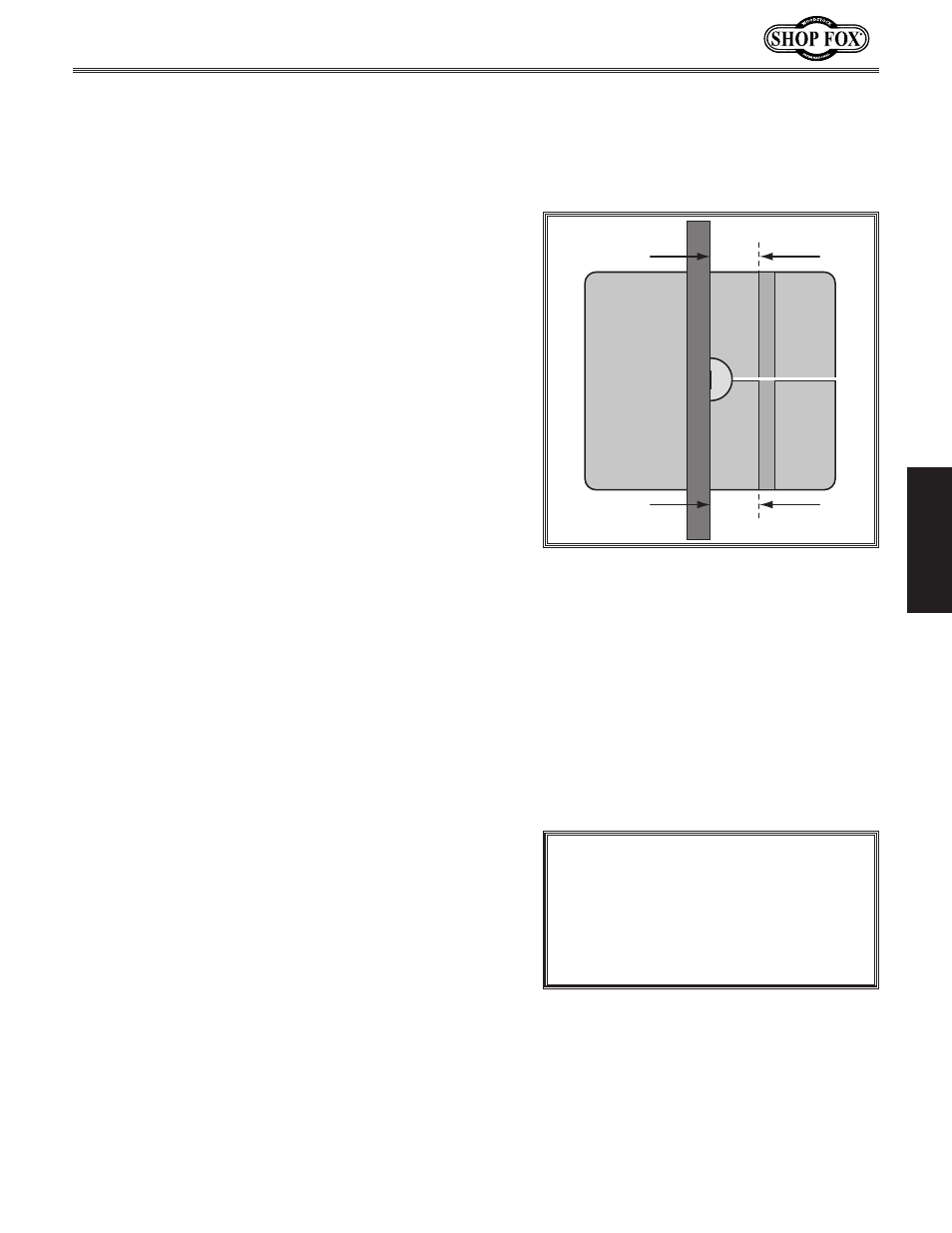

Table.Alignment
A
B
Miter Slot
Parallel
with Blade
when A = B
Straightedge
Figure.33. Checking if miter slot is
parallel to blade.
To.align.the.fence.parallel.with.the.miter.slot,.do.these.
steps:
1. Mount the fence on the right-hand side of the blade,
at the edge of the miter slot, then lock it in place.
2. Loosen the two cap screws that mount the front rail
brackets to the table.
3. Shim between the front rail brackets and table to
make the fence parallel with the miter slot.
Tip:.Shim stock works well for this, but small pieces
of paper can also work in a pinch.
4.. Tighten the front rail mounting bolts.
Fence.Alignment
NOTICE
Adjusting. the. fence. parallel. to. the.
miter.slot.does.not.guarantee.straight.
cuts.. The. miter. slot. may. need. to. be.
adjusted.parallel.to.the.blade..Refer.to.
the.Table.Alignment.instructions..
