ELECTRICAL
DO.NOT.work.on.your.electrical.system.
if. you. are. unsure. about. electrical.
codes.and.wiring!.Seek.assistance.from.
a. qualified. electrician.. Ignoring. this.
warning.can.cause.electrocution,.fire,.
or.machine.damage.
220V.Operation
The Model M1113 operates on 220V single-phase power.
We recommend connecting this machine to a dedicated
circuit with a verified ground, using the circuit size given
below. Never replace a circuit breaker with one of higher
amperage without consulting a qualified electrician to
ensure compliance with wiring codes. This machine must
be connected to a grounded circuit!
A plug is not supplied with this machine. See below for
the recommended plug type for this machine.
If.you.are.unsure.about.the.wiring.codes.in.your.area.
or.you.plan.to.connect.your.machine.to.a.shared.cir-
cuit,.you.may.create.a.fire.or.circuit.overload.hazard—
consult.a.qualified.electrician.to.reduce.this.risk.
We do not recommend using an extension cord; however,
if you have no alternative, use the following guidelines:
• Use a cord rated for Standard Service (S).
• Do not use an extension cord longer than 50 feet.
• Ensure that the cord has a ground wire and pin.
• Use the gauge size listed below as a minimum.
Extension.Cords
Operating.Voltage Amp.Draw Min..Circuit.Size Recommended.Plug Extension.Cord
220V Single-Phase 5 Amps 15A NEMA 6-15 (not incl.) 14 Gauge

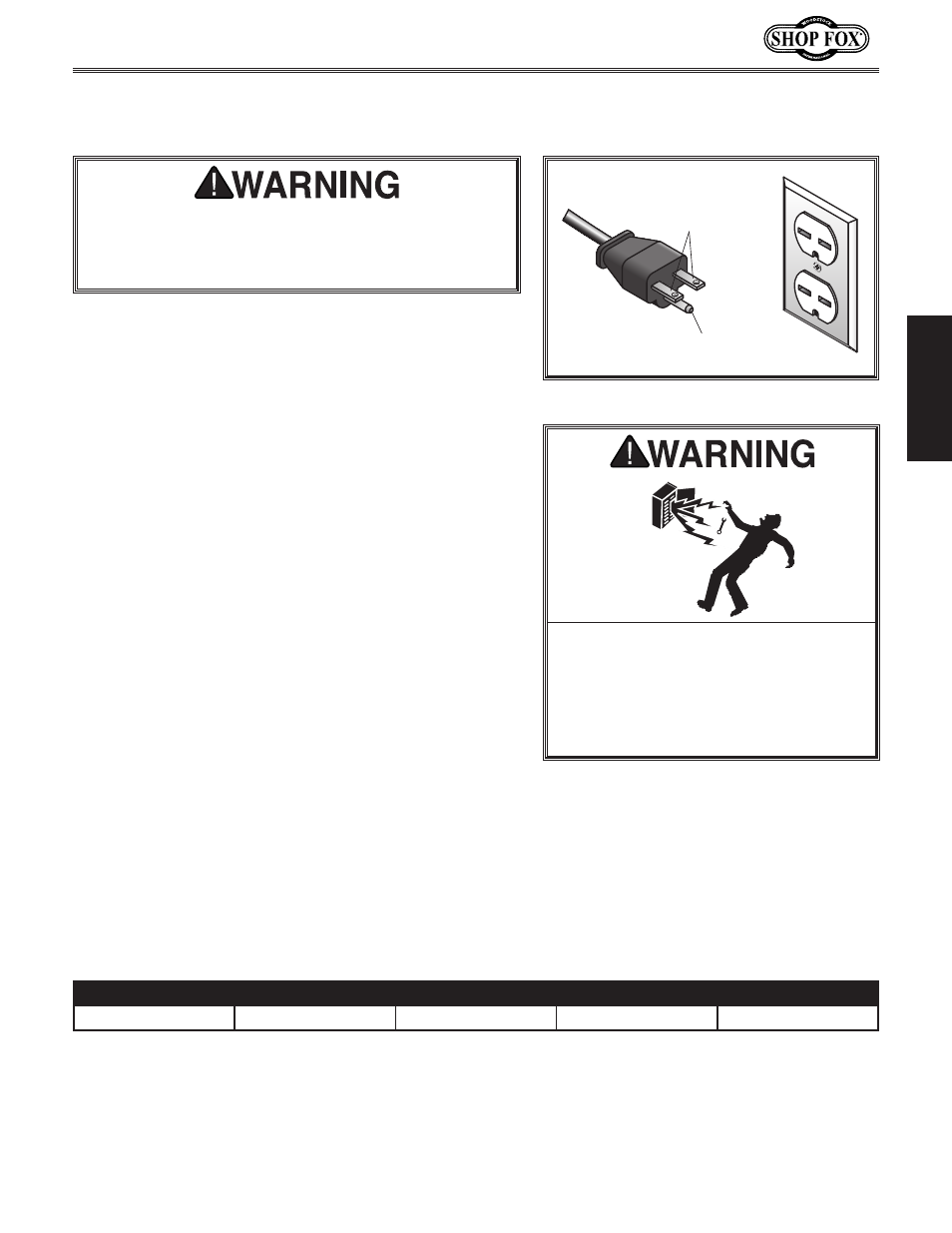

Figure.1. 6-15 plug and receptacle.
Grounding Prong
Current Carrying Prongs
6-15 PLUG
GROUNDED
6-15 RECEPTACLE
220V
Electrical.Specifications
The. machine. must. be. properly. set. up. before. it. is.
safe.to.operate..DO.NOT.connect.this.machine.to.the.
power. source. until. instructed. to. do. so. in. the. "Test.
Run".portion.of.this.manual.
