OPERATIONS
General
This machine will perform many types of operations
that are beyond the scope of this manual. Many of these
operations can be dangerous or deadly if performed incor-
rectly.
The instructions in this section are written with the under-
standing that the operator has the necessary knowledge
and skills to operate this machine. If.at.any.time.you.are.
experiencing.difficulties.performing.any.operation,.stop.
using.the.machine!
If you are an inexperienced operator, we strongly recom-
mend that you read books, trade articles, or seek training
from an experienced bandsaw operator before performing
any unfamiliar operations. Above.all,.your.safety.should.
come.first!
READ.and.understand.this.entire.instruc-
tion.manual.before.using.this.machine..
Serious. personal. injury. may. occur. if.
safety.and.operational.information.is.not.
understood. and. followed.. DO. NOT. risk.
your.safety.by.not.reading!

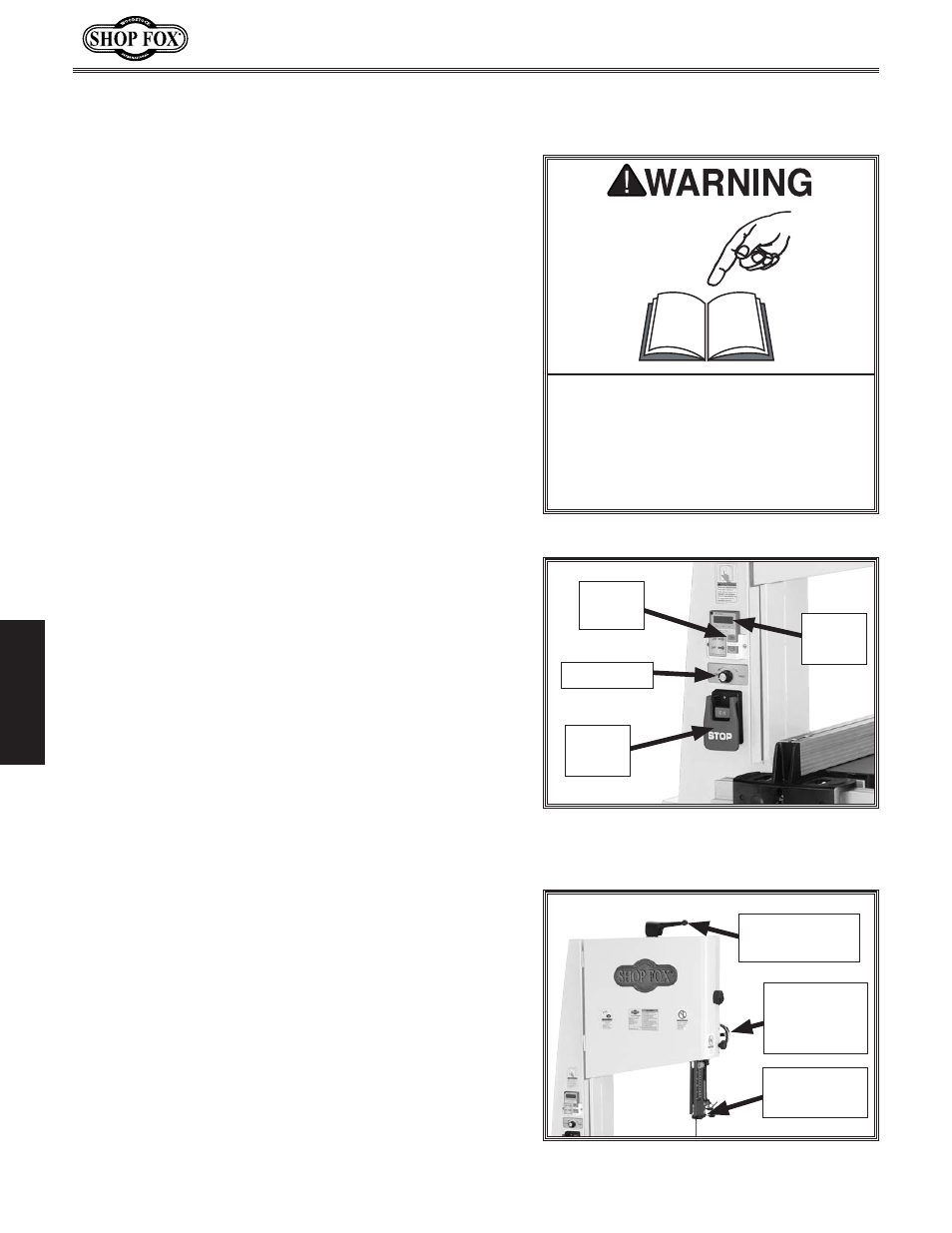

Figure.34..Motor, speed, and power
controls.
Figure.35. Blade tension/guide post
controls.
Speed Dial
Power
Switch
Motor
Switch
Digital
Display
Blade Tension
Lever
Blade Guide
Elevation
Handwheel
Blade Guide
Assembly
Basic.Controls
Motor.Switch: Starts and stops the motor. Only works
after the power switch has been reset and turned ON.
Speed.Dial: Adjusts the speed of the motor, which is dis-
played in FPM on the digital display.
Power.Switch:.Turns power ON/OFF to the motor switch.
OFF button must be reset (by pushing it all the way in)
before power will turn ON again.
Blade.Tension.Lever:.Increases/decreases blade tension
when rotated. Quickly releases blade tension when piv-
oted up.
Blade.Guide.Elevation.Handwheel: Raises/lowers the
upper blade guide assembly when rotated. The blade
guide assembly should always be no farther than 1" above
the workpiece when cutting.
