Model M1113 (Mfg. Since 2/08)
SE
RV
IC
E

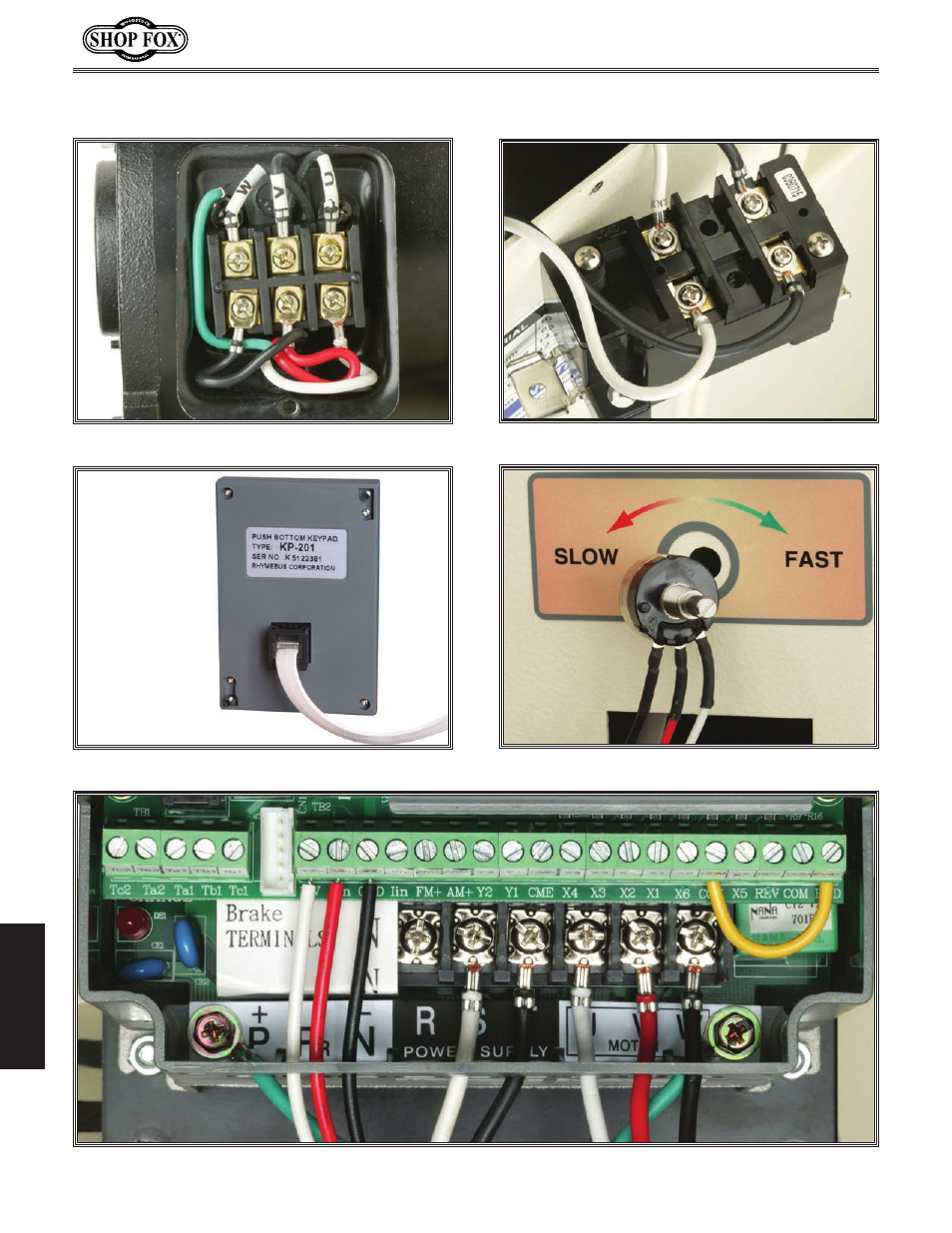

Electrical.Component.Wiring
Figure.62. Inverter/controller box terminal blocks.
Figure.61. Variable speed dial. Figure.59. Motor switch.
Figure.60. Power switch. Figure.58. Motor junction box wiring.
