Connection Panel

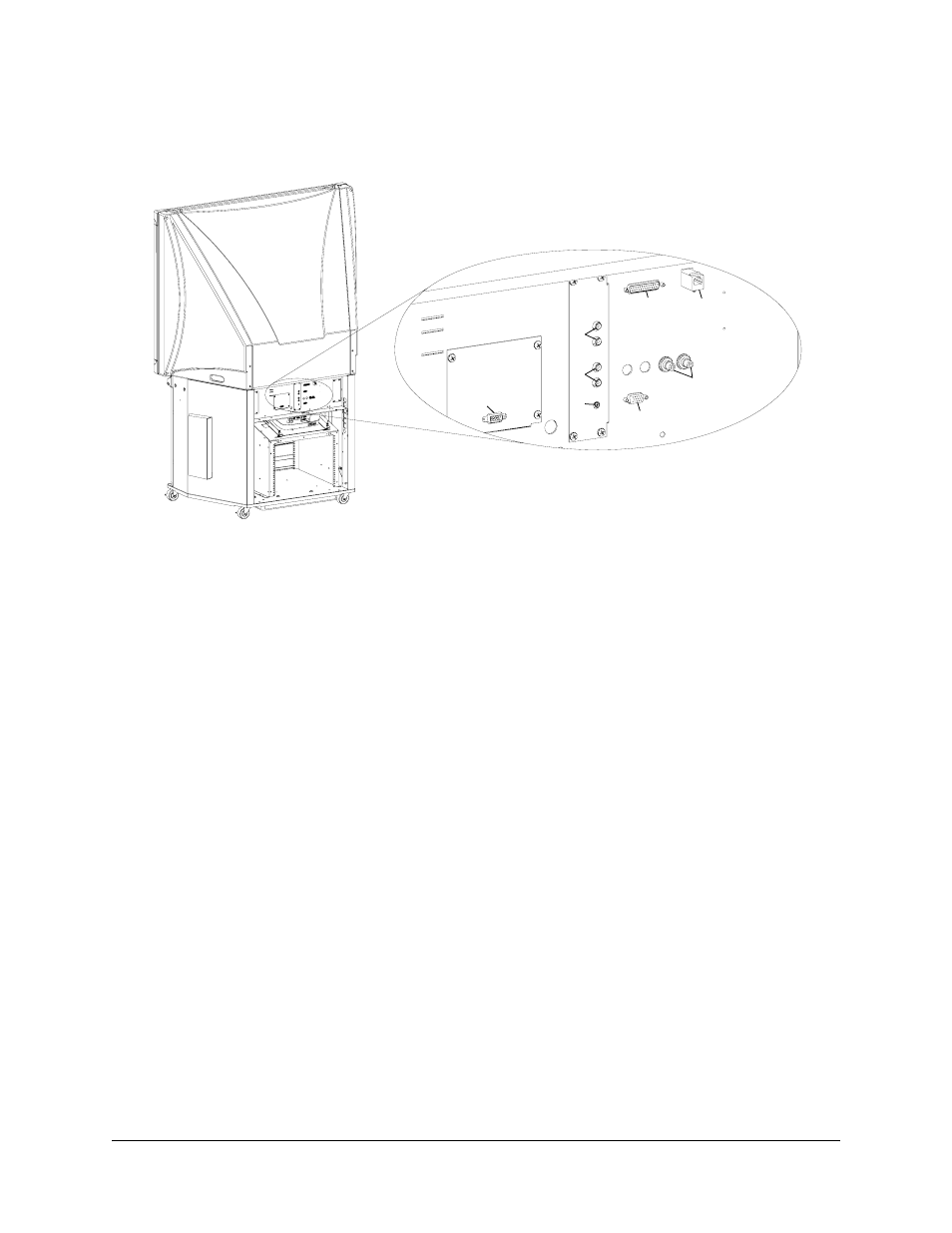

You can use the connection panel to make a variety of external connections to the 4000i cabinet.
1. Printer (Female) – Enables connection to an external printer. See page 9 for more
information.
2. Network – Enables connection to a network. See page 10 for more information.
3. VCR/DVD Audio OUT – These cables are already linked with an RCA cable to the Audio IN
jacks on the connection panel. Keep the right and left channel connections correct for stereo
sound.
4. Computer 2 Video IN (Female) – Used to connect a guest laptop. See page 10 for more
information.
5. Computer 2 Audio IN (Female) – Used to connect a guest laptop. For more information, see
page 10.
6. Audio IN – These connectors are already linked with an RCA cable to the VCR/DVD Audio
jacks on the connection panel. Keep the right and left channel connections correct for stereo
sound.
7. Room Audio OUT – Enables connection to an external sound system. See page 10 for more
information.
8. Computer 2 Serial IN (Female) – Used to connect a guest laptop. See page 10 for more
information.
1 2
3
3
4
5
6
7
8
