99-00582-20 REV A0 Finalizing the Installation 15

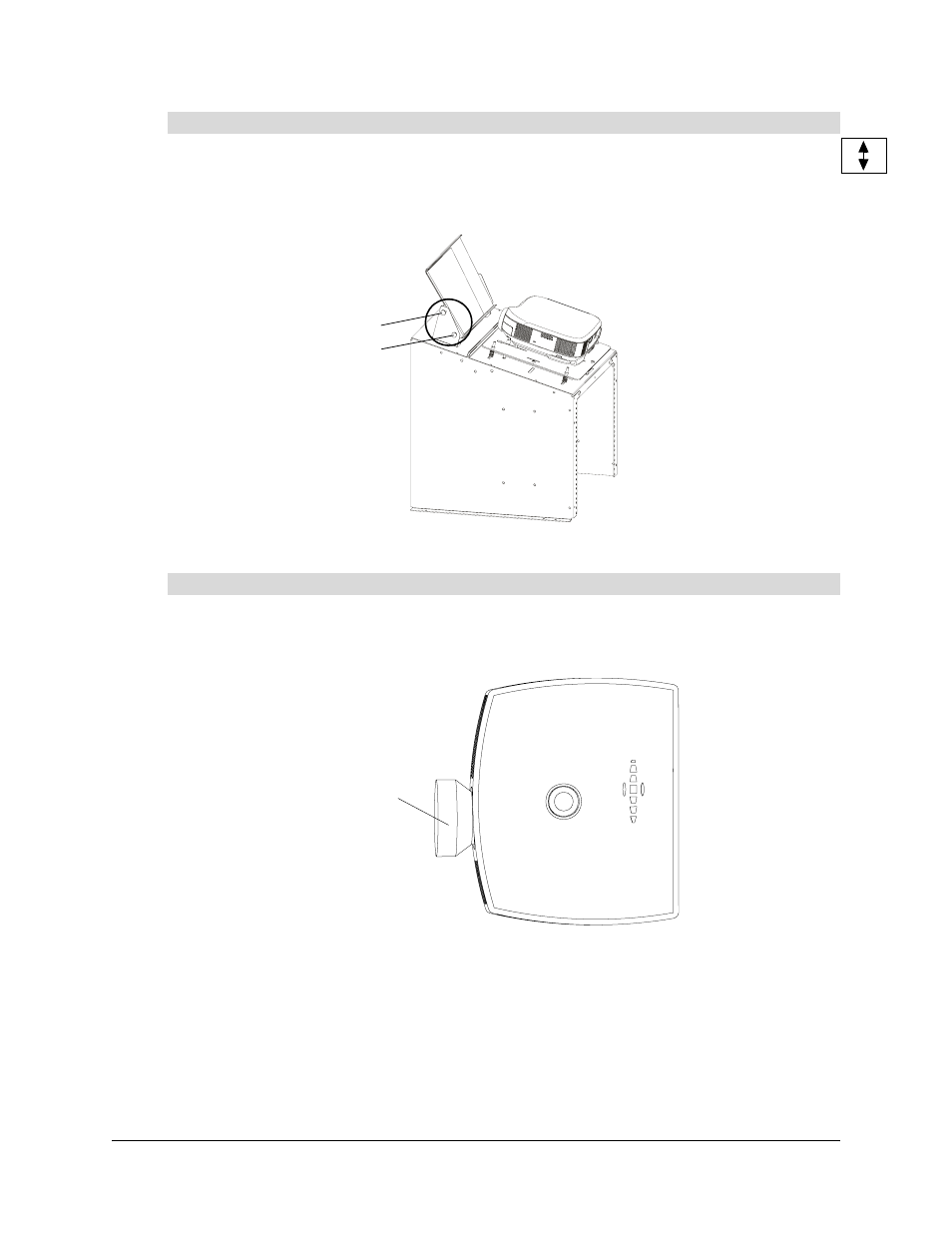

1. Loosen the upper thumbscrews on both sides of the small mirror. Don’t loosen the lower pivot.
2. Gently push the mirror away from you to lower the image, or pull it towards you to raise the
image.
3. When you’ve finished adjusting the mirror, tighten the thumbscrews.
Gently and slowly turn the projector’s lens until the projected image appears clearly on the 4000i’s
screen.
To move the image up or down
To adjust the focus
Upper Thumbscrew
Pivot
(Do not loosen)
Gently turn this lens
to adjust the focus.
