Chapter 2: Installation

2-5

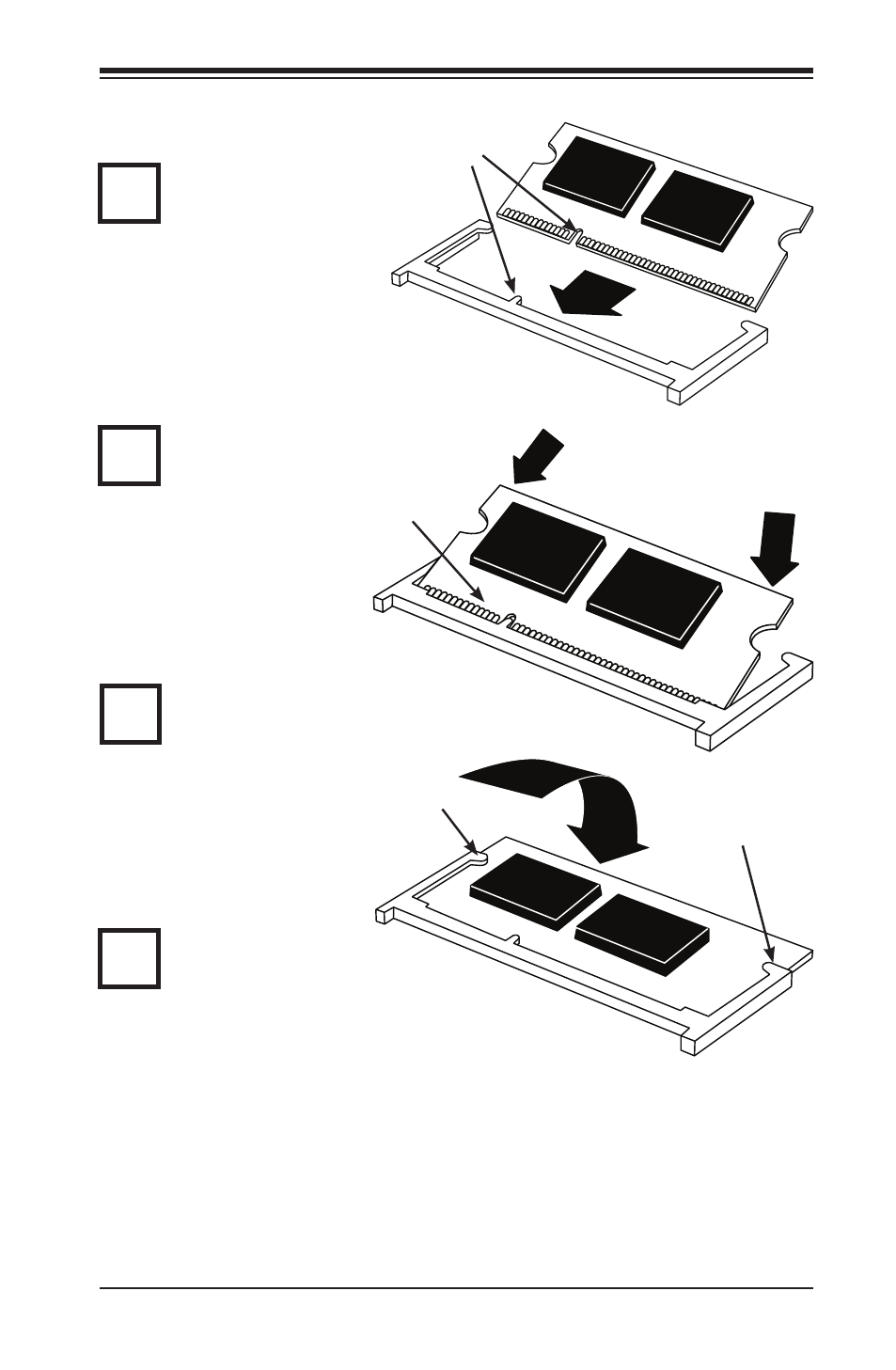

Insert the SO DIMM

module vertically at

about a 45 degree

angle.

To Remove:

Use your thumbs to

gently push the side

clips near both ends

away from the module.

This should release

it from the slot. Pull

the SO DIMM module

upwards.

The SO DIMM Socket

Position the SO DIMM

module's bottom key

so it aligns with the

receptive point on the

slot.

Press down until the

module locks into

place. The side clips

will automatically

secure the SO DIMM

module, locking it into

place.

1

2

3

4

Insert this end first

Press down until the module
locks into place.

Locking clip

Locking clip

Align
