2-2
X7SPA and X7SPE Motherboard Series User's Manual
MH
2
MH
3
MH 4
D17
JPW1
JUSB1
JD1
JPC3
JPUSB1
JWD
1
JPG1 JBMC1 JPL1
JPT1
JPL2
JDIMM2
1
JDIMM1
JI2C2
JI2C1 JOH1 JL1
JL 2
SP1
+
J2
J3
JBT1
JBAT1
JPCIE1
JUSB
5
JUSB4
JUSB3 JUSB
2
JLPC80
R1050
JSMB1
FAN1 FAN2
JC OM2
JC OM4
JPI2C1
JWF
1
J8
JVGA1
CD 1
JP B
FAN
FA
N
COMS CLEAR
2-3 DISABL
E
1-2 ENABL
E
JPB:BMC ENABLE/DISABL
E
CD-in
JPT1:TP
M ENABLE/DISABL
E
1-2 ENABL
E
2-3 DISABL
E
AUDIO FP
T-SGPIO2 T-SGPIO1
JPI2C:PWR I2C
JSMB1:SMBus1
JPUSB1:USB
WA
KE UP
2-3 DISABLE 1-2 ENABLE
JWF1:DOM PW
R
JD1:1-3 PWR LED
4-7 SPEAKE
R
ON:ENABLE JI2C2 OFF:DISABLE
JI2C1 OFF:DISABLE ON:ENABLE
JL2:
AU DIO FRONT P
ANEL SELEC
T
ON:A
C'97 FRONT P
ANE
L
OF F: HD
AU DIO FRONT P
ANE
L
JPG1:VG
A
2-3 DISABLE 1-2 ENABL
E
2-3 DISABL
E
JPL2:1-2 ENABL
E
JPL1:1-2 ENABL
E
2-3 DISABL
E
JL1:CHASISS INTRUSIO
N
JF1 PWR ON RST X OH/FF NIC2 NIC1 HDD LED PWR LED X NMI
2-3 NMI
JWD1:1-2 RST JBT1:
LAN2
LAN1
I-SATA5
I-SATA2
I-SATA4
I-SATA1
I-SATA3
I-SATA0
SLOT1 PCI-E X4 (IN X16 SLOT)
SYS
CPU KB/MOUSE
CO
M4
CO
M3
COM2
COM1
SODIMM2 SODIMM1
CPU
J6
J5
J10 J11
J12
J13
J1 4
JPF

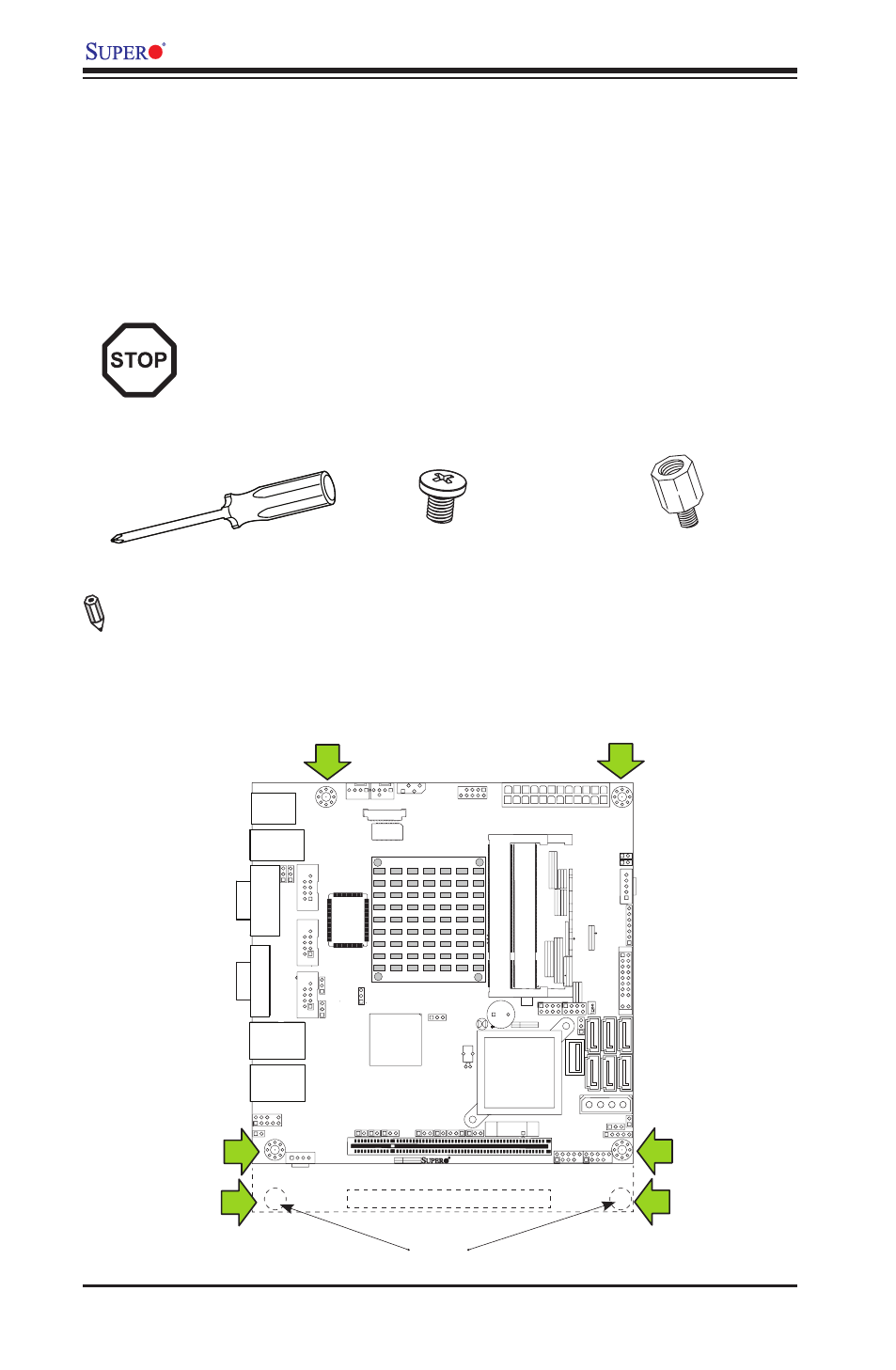

2-2 Motherboard Installation
All motherboards have standard mounting holes to fit different types of chassis.
Make sure that the locations of all the mounting holes for both motherboard and
chassis match. Although a chassis may have both plastic and metal mounting fas-
teners, metal ones are highly recommended because they ground the motherboard
to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.
Then use a screwdriver to secure the motherboard onto the motherboard tray.
Caution: Some components are very close to the mounting holes. Please
take precautionary measures to prevent damage to these components
when installing the motherboard to the chassis.
Tools Needed
Philips Screwdriver Pan head screws (4-6 pieces)
Location of Mounting Holes
There are four (4) mounting holes on the X7SPA series, and six (6) on the X7SPE
series motherboard.
Stand Offs (4-6 pieces)
(Only if needed)
Note: The above items are not provided with this motherboard.
X7SPE Series Only
