description/installation

h1000 pilot

Page 16

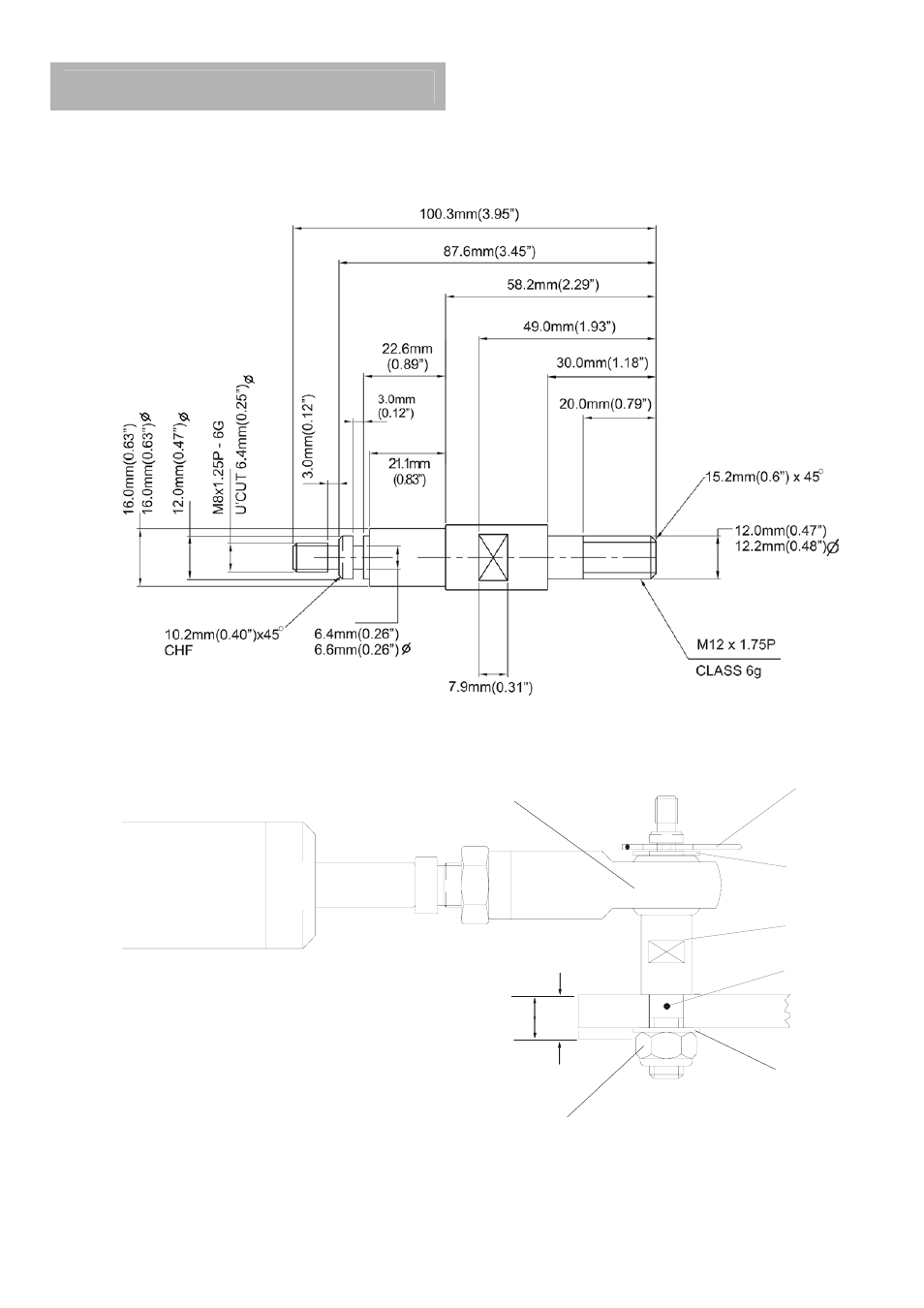

type 1 and 2 rose joint and am bolt detail

‘R’ CLIP

R

3773

RECOMMENDED
QUADRANT THICKNESS

NUT TORQUE - 27NM

20 Ft.Ib

W A S H E R

LOCTITE

TILLER BOLT

W A S H E R

ROD END

12MM
MIN

16MM
MAX
