B&G H1000 Autopilot - Manual (Page 11)

description/installation
h1000 pilot
Page 10
rudder reference unit

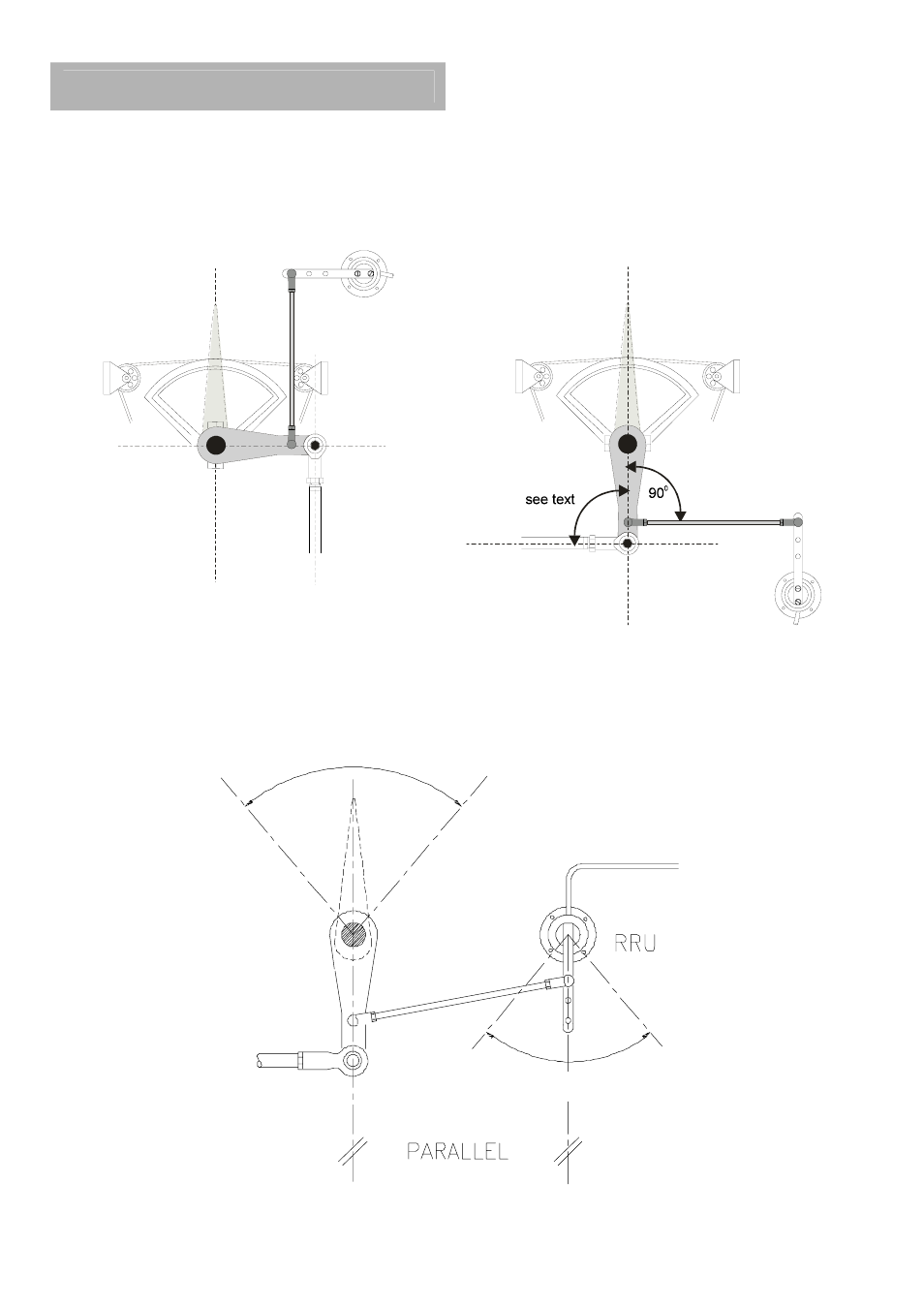

The RRU can be mounted in a variety of positions and orientations depending on the layout of the
steering system.
If the maximum rudder angle is less than 90 q then the position of the RRU or the drag-link must be
adjusted so that the operating arm of the RRU swings through a minimum of 90.
90° MINIMUM RRU ANGLE
1V minimum
variation
