Main Window Elements and Their Functions

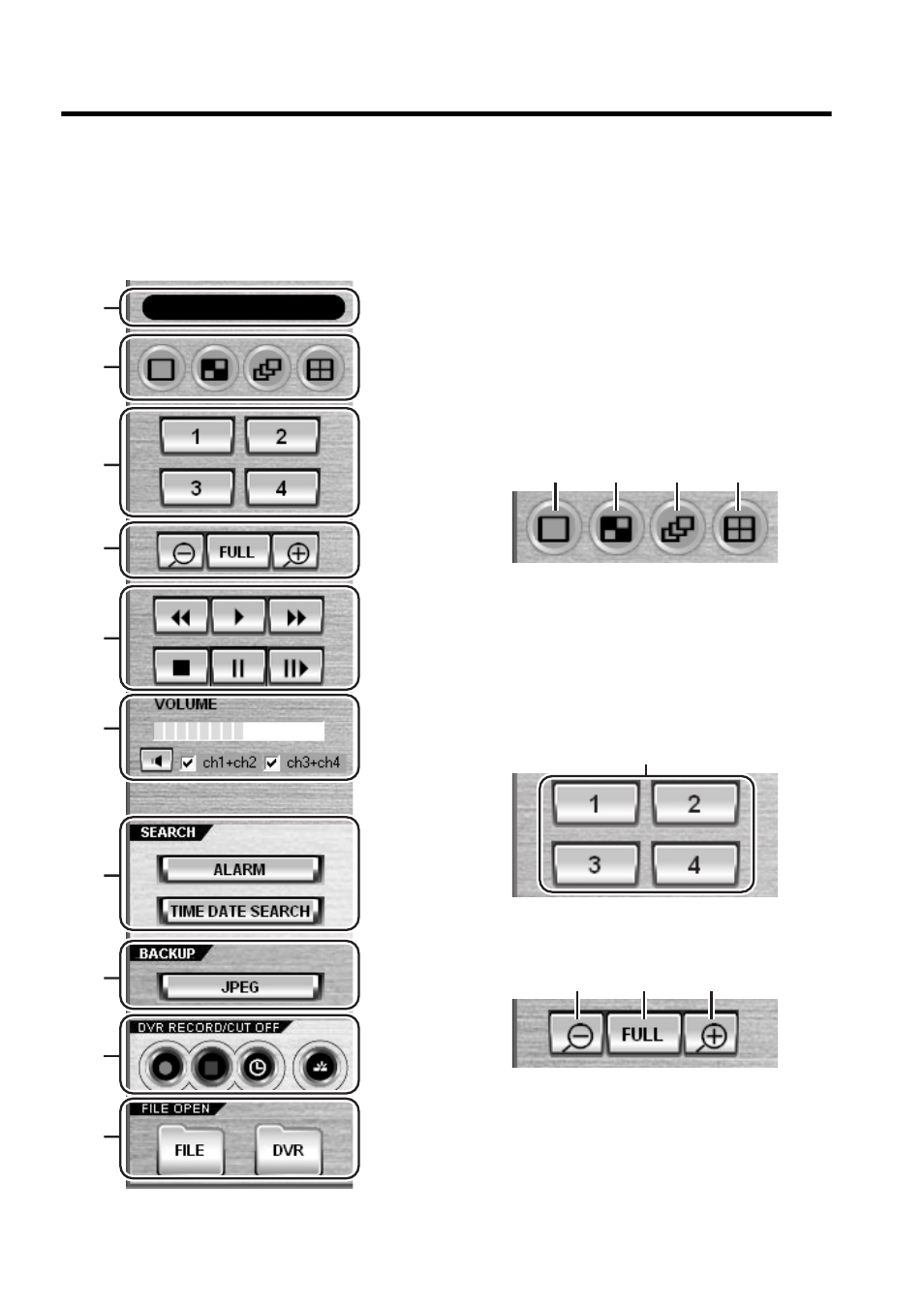

b Control Panel
The control panel contains buttons that provide one-click access to the most common functions
such as specifying the channel configuration, switching the viewing pane layouts, playing back or
recording video as well as to various control/configuration windows.
1
Operating mode indicator for timer
download
• Program: There is a scheduled timer
download that has not been started yet.
• Downloading: A timer download is
ongoing.
2
Layout selector buttons (ID1/2/3/4)
1 Single-view layout
2 Four-view layout
3 Sequence (auto switch) mode
4 Multi-view (4x4) layout
3
Channel selector buttons (ID1/2/3/4)
4
Zoom/scale buttons (ID1/2/3/4)
1 Zoom in on the currently displayed
2 Zoom out on the currently displayed
image until it reverts to the original size.
3 Full screen mode
2
1
3
4
5
6
7
8
9
À
1 2 3 4
Display channel selection
2 3 1
