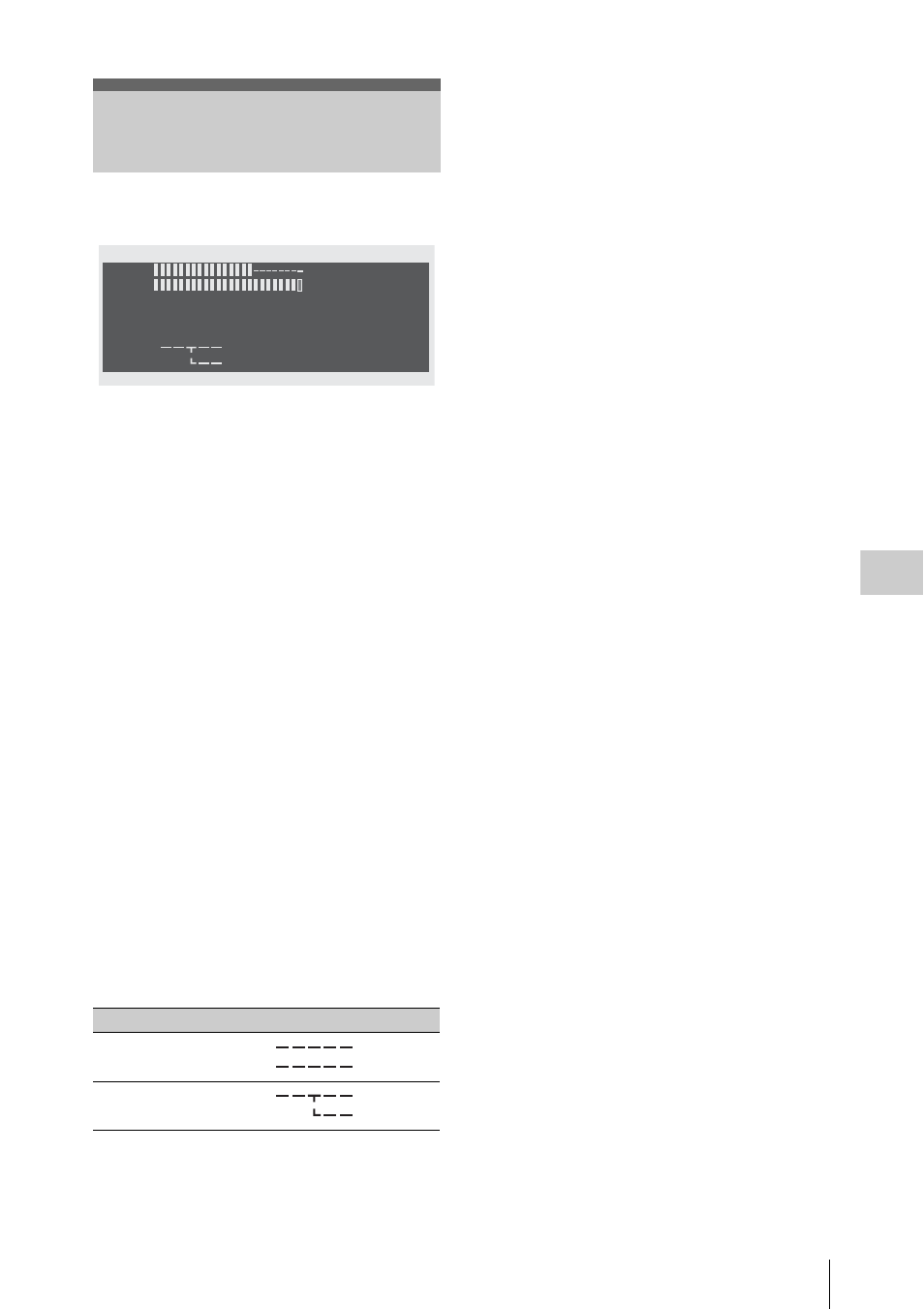

AUDIO Status Screen 103
St
at
us
Di
s
p
la
y
s
Information regarding audio signals is displayed.
CH-1/CH-2/CH-3/CH-4: Audio level meters
In E-E Display/Recording mode, the levels of the
CH-1 and CH-2 audio inputs (E-E audio levels)
are displayed.
In Playback mode, the playback audio levels of
CH-1/CH-2 or CH-3/CH-4 are displayed
according to the “Output CH” setting of the
AUDIO SET menu.
If audio input is fed in via the i.LINK (HDV/DV)
connector in Thumbnail Screen/Pause mode or in
external input recording, the input audio levels
are indicated. In this case, the channel indications
at the left of the meters are CH-1 and CH-2
regardless of the “Output CH” setting of the
AUDIO SET menu.
Wind Filter: Wind filter settings
The current settings of “Wind Filter CH-1” and
“Wind Filter CH-2” of the AUDIO SET menu are
displayed.
AGC Link: AGC link status
The “AGC Link” status (Linked or Separate) of
the AUDIO SET menu is displayed.
EXT–CH-1/CH-2: Audio input settings
The inputs to CH-1 and CH-2 according to the
“EXT CH Select” setting of the AUDIO SET
menu are displayed.
Headphones: Headphone output
The output audio channel(s) for the headphones
is(are) displayed. The “Monitor CH” setting of
the AUDIO SET menu is valid as-is.
Speaker: Speaker output
The output audio channel(s) for the built-in
speaker is(are) displayed. As the speaker is
monaural, the outputs are CH-1+CH-2 or CH-
3+CH-4 even in stereo mode.
With nonstereo settings, the “Monitor CH”
setting of the AUDIO SET menu is valid as-is.
AUDIO Status Screen
EXT CH Select Display
CH-1/CH-2
CH-1
CH-1
CH-2
Wi nd F i l t er CH-1 : On
CH-2: On
EXT-1 CH-1
EXT-2 CH-2 AGC Li nk : L i nked
Headphones : CH-3 / CH-4
Speaker : CH-3+CH-4
AUDIO 2 / 5
oo -40 -30 -20 -10 0 OVER
EXT-1
EXT-2 CH-1
CH-2
EXT-1
EXT-2 CH-1
CH-2
