8.2 general Spa Features And Controls
1
9a
10
11
12
2
3
4
4
5
4
2 2
2
12 3 3 6
7
3
12
12
9b
12
8
8

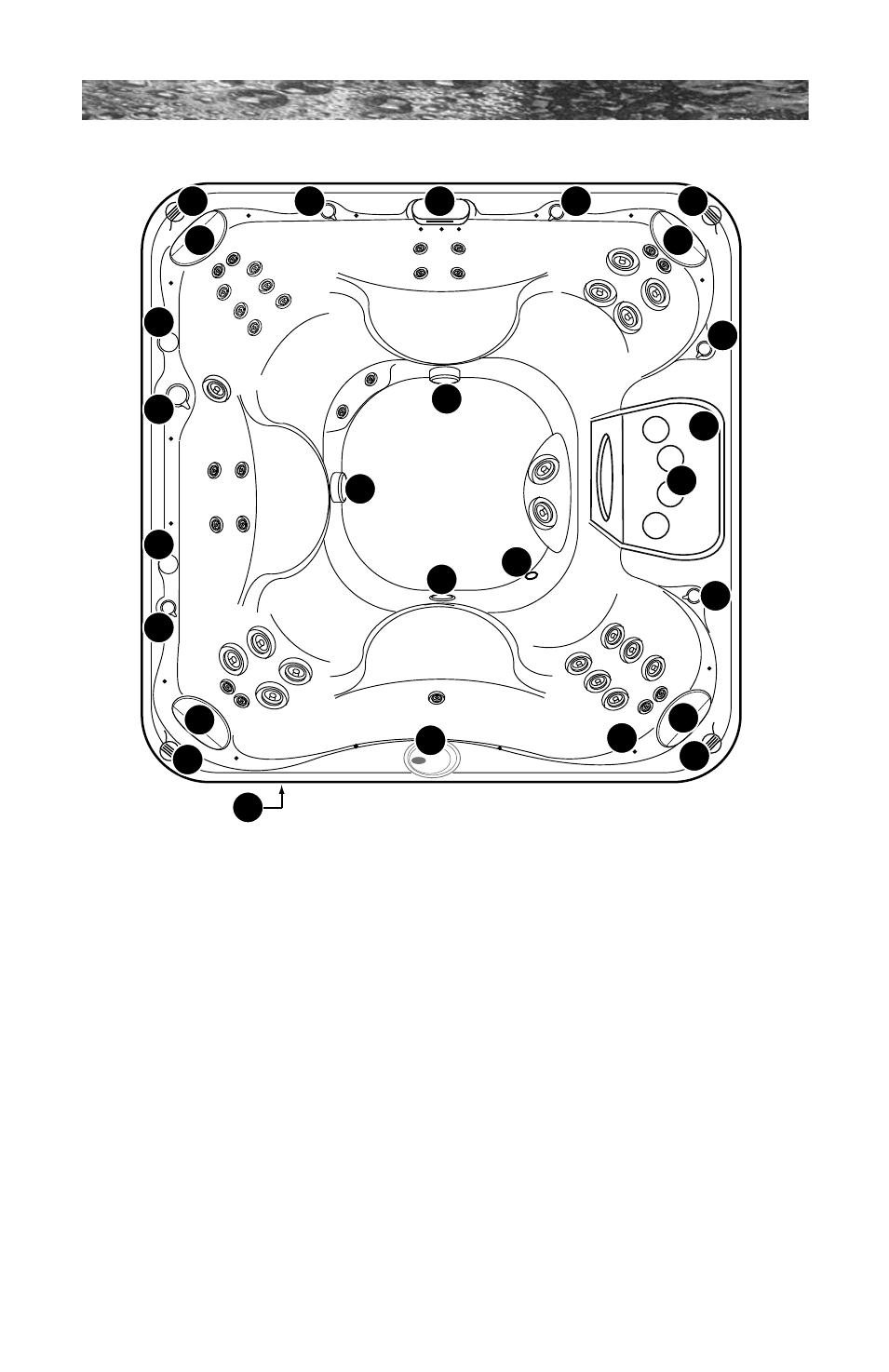

1. Control Panel
2. Headrest Pillows (4 ea.)
3. Air Controls (4 ea.)
4. Cup Holders (6 ea.)
5. Massage Selector (1 ea.)
6. Waterfall
7. Waterfall control valve (1 ea.)
8.
Suction Fittings & Fitlers (Filters
protect massage selector from debris
entrapment/damage. Filters require
periodic cleaning. (2 ea
.)
9. Lighting System Options:
•
Standard Underwater light system
includes incandescent light (9a).
• Optional LED lighting system includes
LED footwell light (9a) and multiple led
accents lights (9b).
10. Gravity Drain: Fitting functions as floor
gravity drain, heater return and optional
CD ozone return.
11. Filter lid with four cup holders and two
underlying filter cartridges.
• Spas without the circulation pump
option utilize both filter cartridges for
jets pump 1.
• Spas with the circulation pump option
utilize one filter cartridge closest to
waterfall valve (7) for jets pump 1 and
the second cartridge for the 24 hour
circulation pump.
12. Optional audio system speakers (4 ea.)
and AM/FM/CD stereo deck (1 ea.)
located on front spa skirt.
Hartford model illustrated - Jet locations and features will vary
by model. Specifications subject to change without notice.
