5. PERFORMANCE CHARTS
230 / 208V
(2) High and Low Pressure
2 Indoor Unit: KS2462R Outdoor Unit: CL2462R
• High Pressure

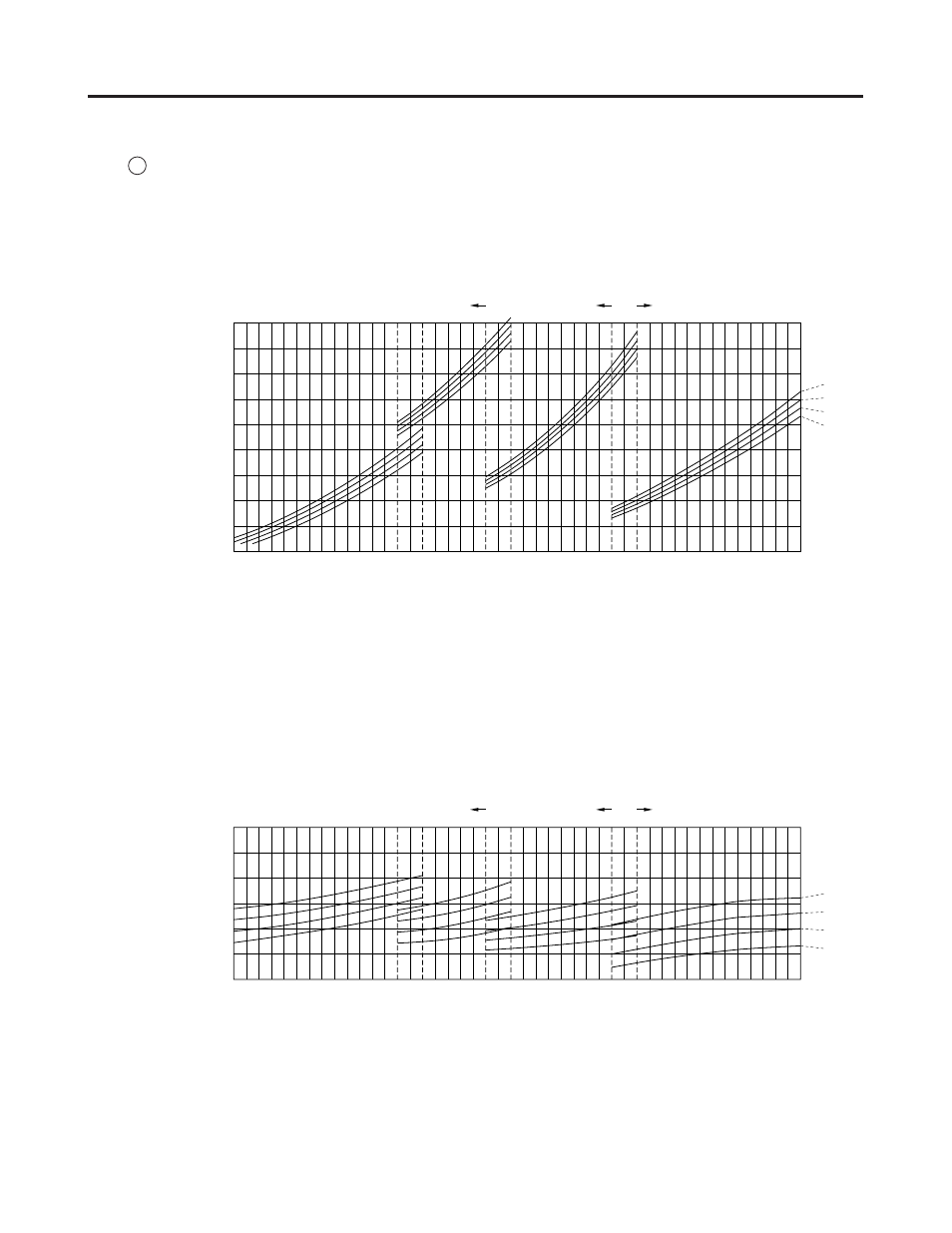

High pressure characteristics versus outdoor ambient temperature and indoor temperature.
(Indoor relative humidity: 50%, Indoor fan speed: High)
• Low Pressure
Low pressure characteristics versus outdoor ambient temperature and indoor temperature.
(Indoor relative humidity: 50%, Indoor fan speed: High)
230 / 208V
1067_X_S
85 (30)
80 (27)
75 (24)
70 (21)
Discharge pressure (psig)
460
480
500
360
340
380
400
420
320
300
59 68 77 86 95 104
(15) (20) (25) (30)
23 32 41 50
(–5) (0) (5) (10) (35) (40)
Outdoor ambient temp.
°
F (
°
C)
Indoor
temp.
°
F (
°
C)
Outdoor fan speed
Med Low High
Suction pressure (psig)
140
130
150
160
170
120
110
Indoor
temp.
°
F (
°
C)
85 (30)
80 (27)
75 (24)
70 (21)
1068_X_S
59 68 77 86 95 104
(15) (20) (25) (30)
23 32 41 50
(–5) (0) (5) (10) (35) (40)
Outdoor ambient temp. ° F ( ° C)
Outdoor fan speed
Med Low High
