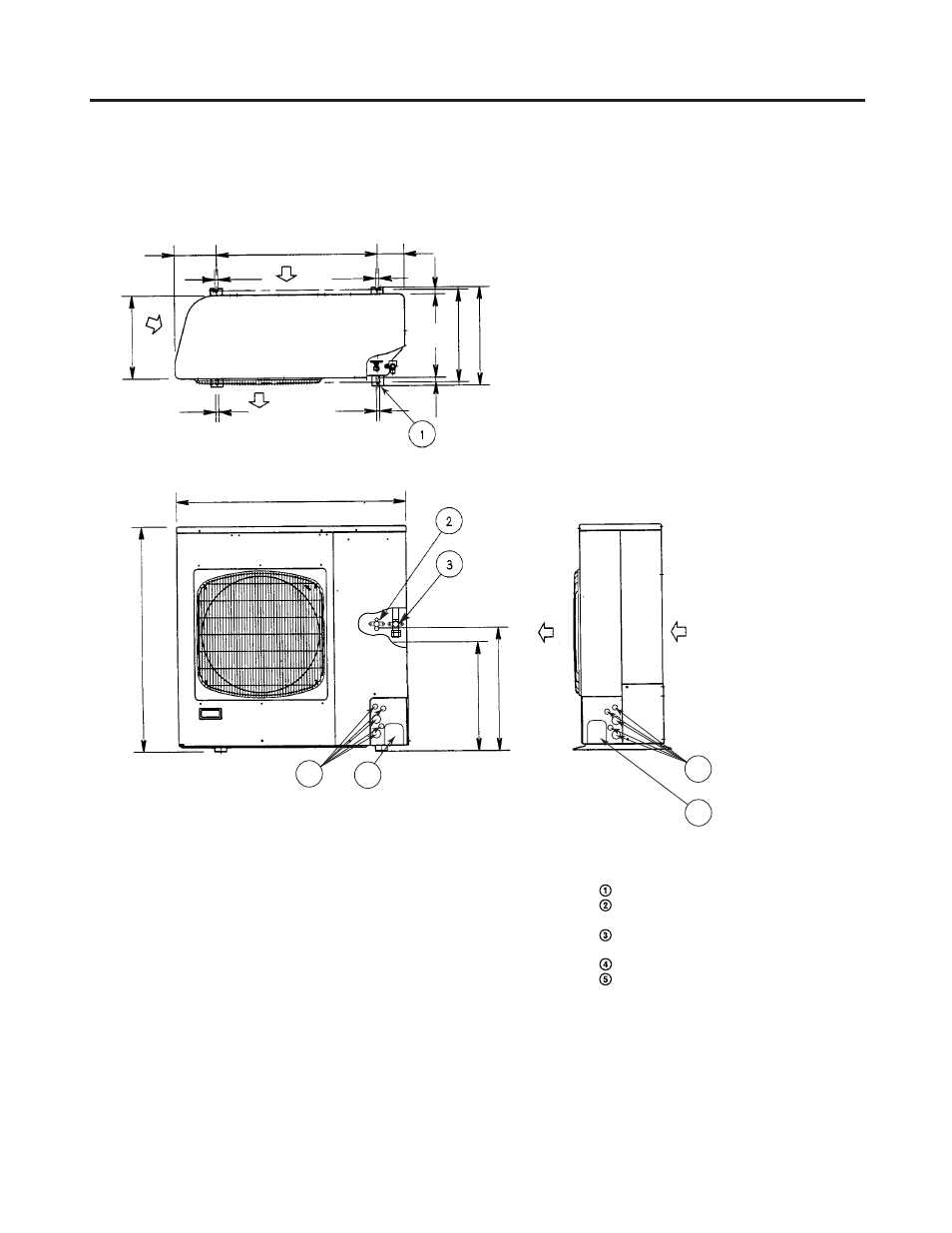

3. DIMENSIONAL DATA

(2)

Outdoor Unit: C2462R, CL2462R

13-3/8

36-5/8

6-23/32

25-31/32

4-3/8

14-31/32

16-7/8

18-1/16

25/32

3/4

15-15/16

Dimension : inch

Hole for anchor bolt (4-R1/4)
Refrigerant tube joint (narrow tube)
Flare connection 3/8 in (9.52 mm)
Refrigerant tube joint (wide tube)
Flare connection 3/4 in (19.05 mm)
Refrigerant tubing inlet
Power supply inlet

1/2
