– 13 –

SM830092

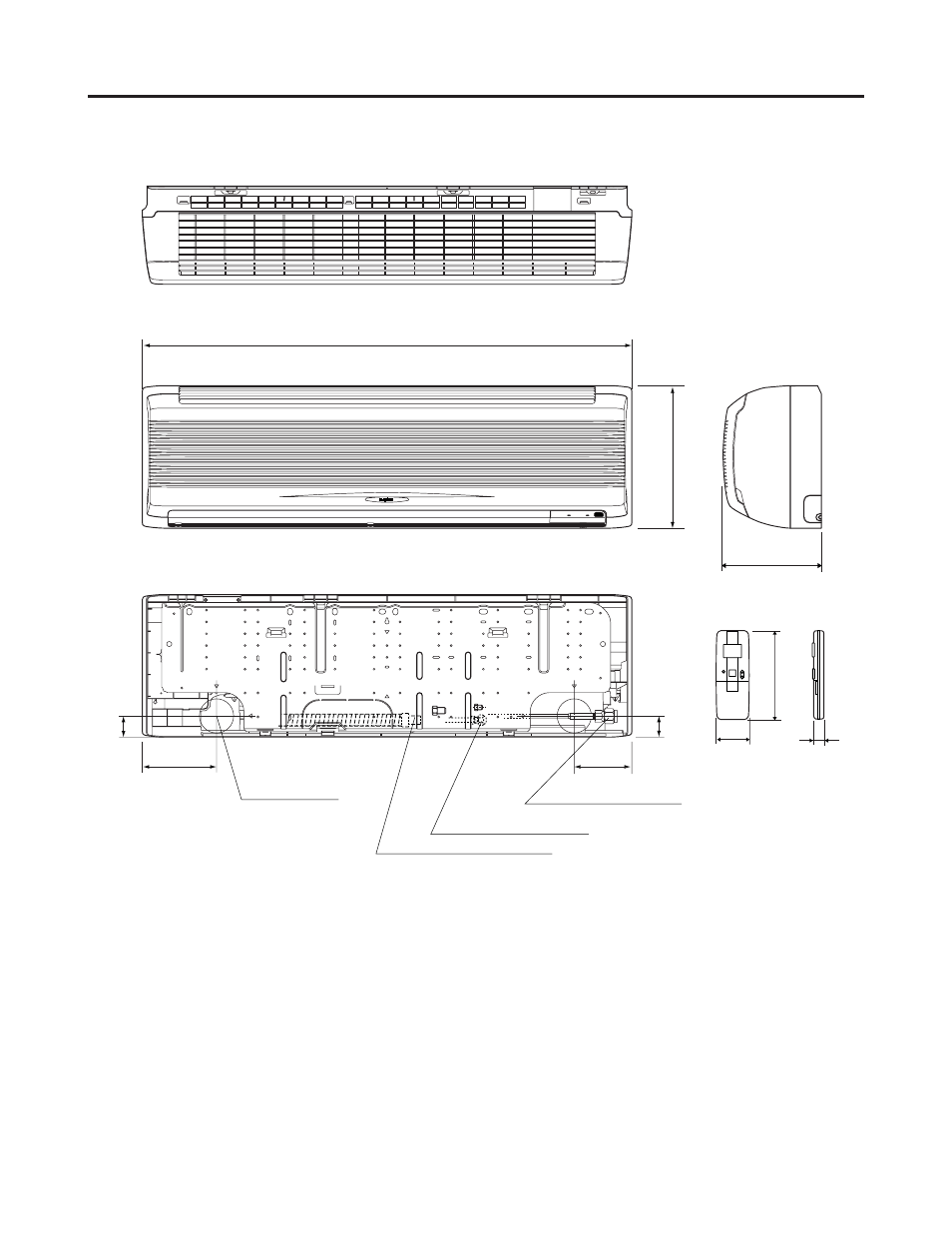

3. DIMENSIONAL DATA

(1)

Indoor Unit: KS2462R

6-27/32

Center of tubing
hole (2 places)

Narrow tube 3/8"(ø9.52)

Wide tube 3/4"(ø19.05)

8-31/32

Remote control unit

1-7/8

5-5/16

13

44-7/8

1-7/8

Drain hose O.D. 23/32"(ø18)

2-13/32

25/32

6-7/32

Dimension : inch
