67
■ RS-232C terminal
■ COMPUTER IN-1 (PC) / COMPUTER OUT Terminal
Pin number Signal name
1 N/C
2 RD
3 TD
4 N/C
5 GND
Pin number Signal name
6 N/C
7 N/C
8 N/C
9 N/C
Pin number Signal name
1 Red
2 Green
3 Blue
4 N/C
5 N/C
6 GND (Red)
7 GND (Green)
8 GND (Blue)
Pin number Signal name
9 N/C
10 GND (SYNC)
11 GND
12 N/C
13 H.SYNC
14 V.SYNC
15 N/C
Specifications (Cont.)

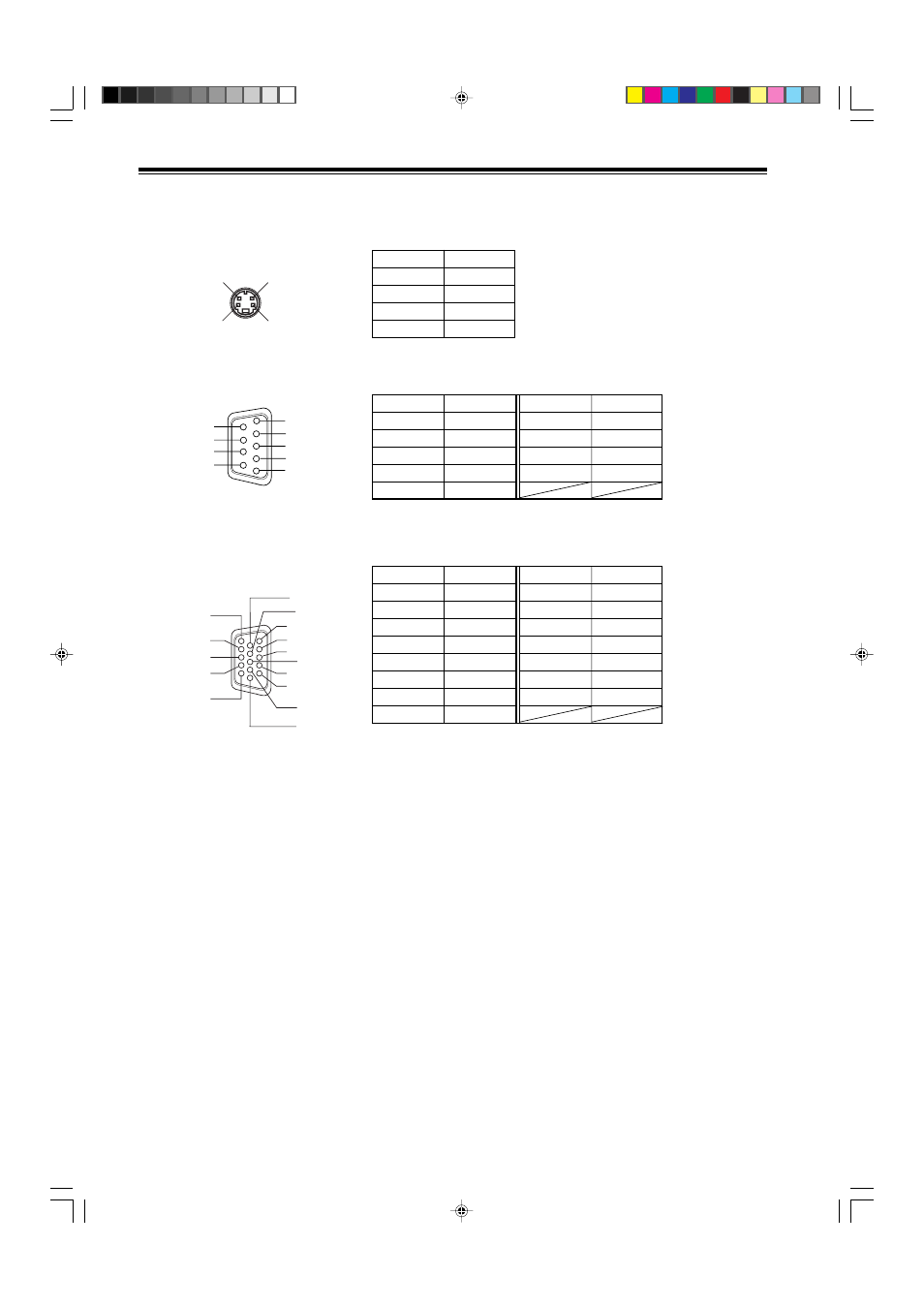

Pin assignment (Specifications for terminals)
■ Y/C terminal
Pin number Signal name
1 GND (Y)
2 GND (C)
3 Y
4 C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
3
5
6
9
4
8
2
1
7
1 2
3 4
