22
R
RGB
Y/C V
G H/C S
B V
RGB OUT
RS-232C
REMOTE
RGB IN-2
CON
EXT. IN
RGB IN-1
• Desktop type

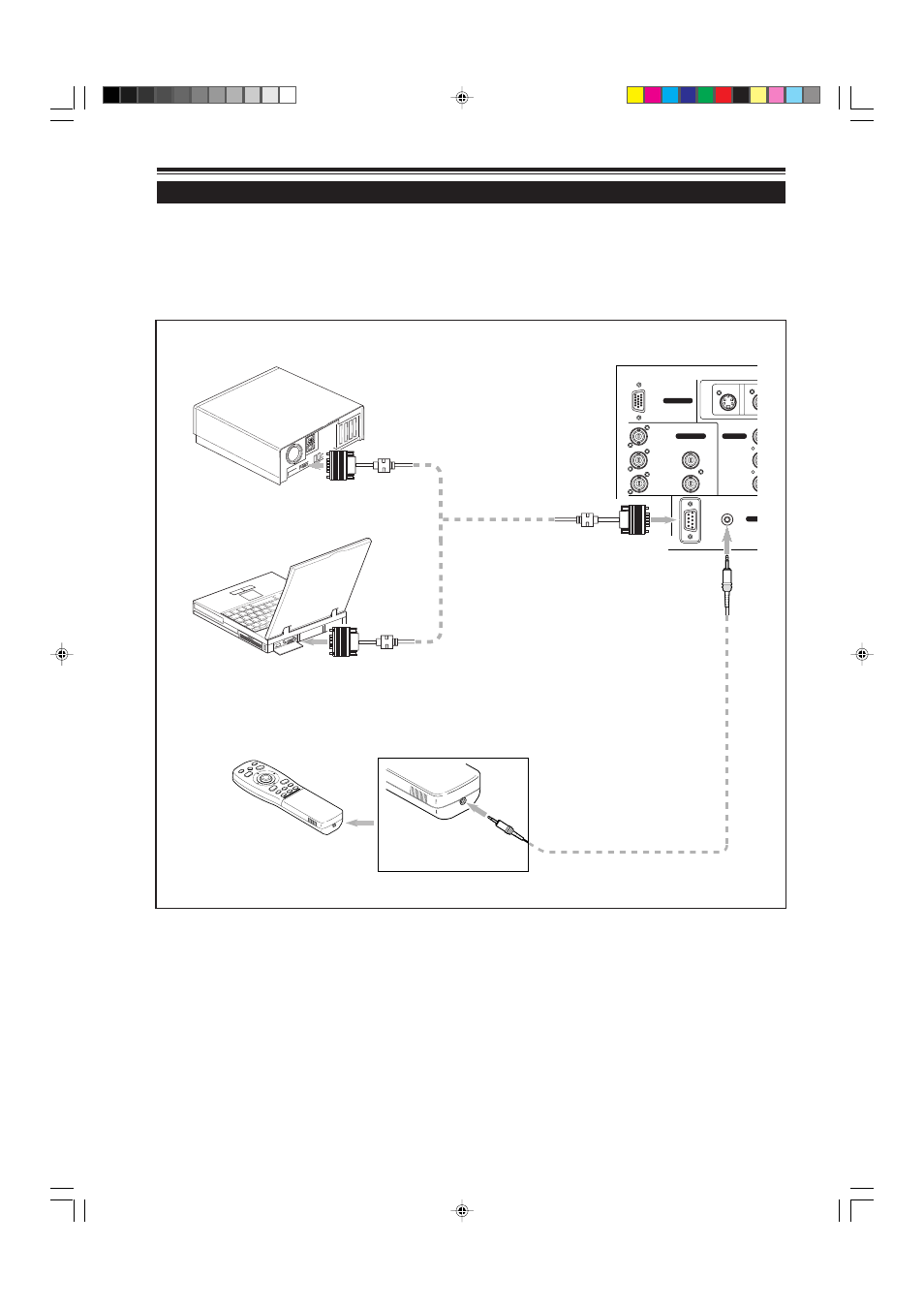

Connecting to Various Devices (Cont.)
Connecting to Devices which Control the Projector
Before connection, be sure to turn off both the projector and devices to be connected.
• Read the manual thoroughly which comes with each device to be connected.
• By connecting a computer to the RS-232C terminal, you can control the projector.
* For details, consult an authorized your dealer or service center.
• If you connect the cable terminal of the remote control and the REMOTE terminal of the projector with a remote control cable,
you can use the remote control in a place or at an angle from which the infrared beam cannot reach the projector.
Remote control cable
To remote control
cable terminal
• Remote control (when remote control cable is used)
• Note type
To RS-232C connector
To RS-232C connector
RS-232C reverse connection
cable (separately available)
To REMOTE terminal
To RS-232C connector
