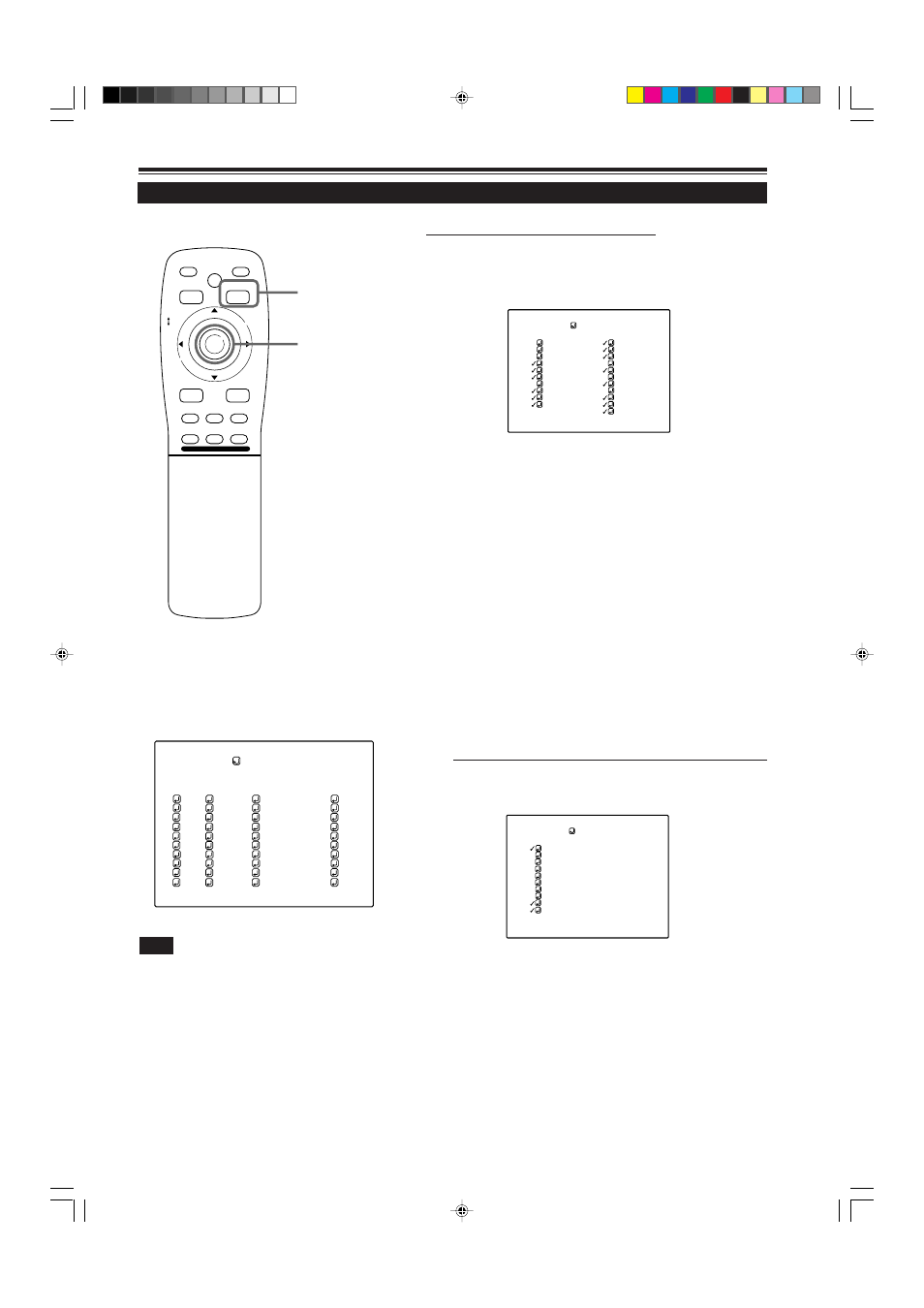

Setting Up Channels (SOURCE setup)

Operating the Main Menu (Cont.)

■

Remote control unit

Note

• The selected item is shown in magenta color. Items shown

in gray color cannot be operated or set in the current mode.

MEN

U/E

QUICK

ALIGN.

AV HIDE

OPERATE

PRESET

SHIFT

ZOOM

FOCUS

LENS

–

RGB/COMPUTER

LENS

LOCK

UNLOCK

PAGE BACK

Press MENU/ENTER toward the

∞

mark to select a source from the

“SOURCE” items.

• The selected item (text display) is shown in magenta color.

Press the MENU/ENTER button to set.

• When the item is set, a check mark is placed next to its source

name, which is registered as a “SOURCE”.

• If you place the cursor on a “SOURCE” item with a check mark

attached and press MENU/ENTER, the check mark will
disappear and the item will become unregistered as a
“SOURCE” item. (If the selected channel is the same with the
one in ( ) under the “CHANNEL” display at the top of the
CHANNEL setup/selection menu, the registration or settings
cannot be cleared.)

■

When “USER” is selected from “SOURCE registration menu” :

The “USER SOURCE registration menu” appears.

• Registered user sources are indicated with check marks.

PAGE BACK button

MENU/ENTER button

1
2
3
4
5
6
7
8
9

( A U T O )

C H A N N E L

N T S C ( 4 8 0 i )
P A L / S E C A M

777777777

77777

Y / C
V I D E O

1
2

L I N E

S O U R C E

SWNo

■

When “SOURCE” is selected :

The “SOURCE registration” screen appears.

• To be able to display a menu, a “LINE” needs to be already registered.
• Sources already selected are indicated with check marks.

(SOURCE registration menu)

N T S C ( 4 8 0 i )
S D T V ( 4 8 0 p )
H D T V ( 7 2 0 p )
H D T V ( 1 0 8 0 i )
P A L / S E C A M
P C – 9 8
V G A 1
V G A 3
M A C 1 3
V G A V E S A

S O U R C E

S V G A 1
S V G A 2
M A C 1 6
X G A 1
X G A 2
M A C 1 9
M A C 2 1
S X G A 1
S X G A 2
S X G A 3
U S E R

U S E R 1
U S E R 2
U S E R 3
U S E R 4
U S E R 5
U S E R 6
U S E R 7
U S E R 8
H D 1 0 3 5 I _ R
H D 1 0 3 5 I _ Y

S O U R C E

(USER SOURCE registration menu)

1.Press MENU/ENTER toward the

∞

mark to

select a source from the SOURCE items.

• The selected item (text display) is shown in magenta color.

■

CHANNEL setup

•

selection menu

(To be continued on the next page)
