12
Controls and Features (Cont.)

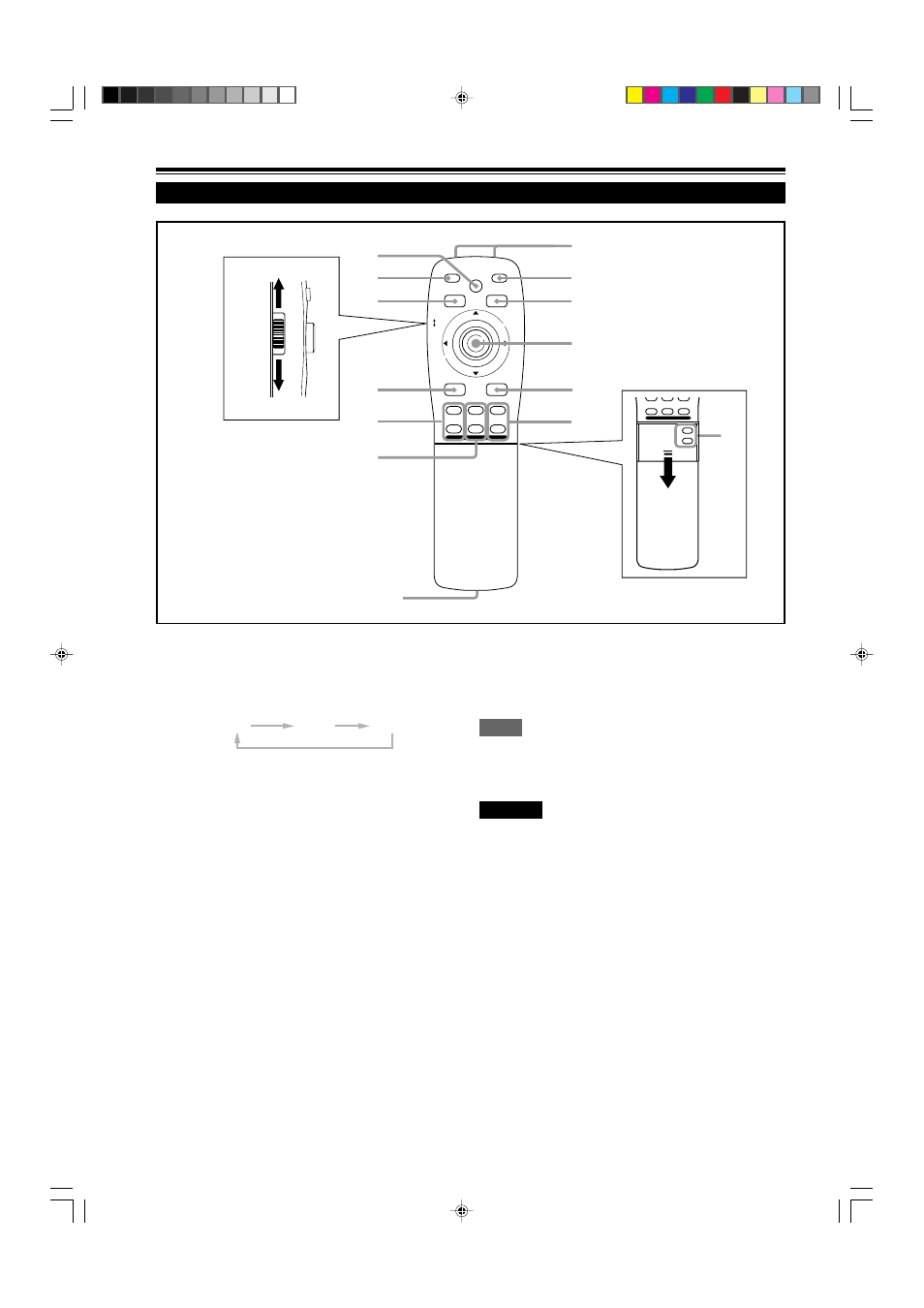

Remote Control Unit
MEN
U/E
N T E R
QUICK
ALIGN.
AV HIDE
OPERATE
PRESET
AV
SHIFT ZOOM FOCUS
LENS
U T +
D W –
RGB/COMPUTER
LENS
LOCK
UNLOCK
PAGE BACK
MEN U/E
N T E R
QUICK
ALIGN.
AV HIDE
OPERATE
PRESET
AV
SHIFT ZOOM FOCUS
LENS
U T +
D W –
RGB/COMPUTER
LENS
LOCK
UNLOCK
PAGE BACK
VOLUME
–
+
r
8
e
w
p
9 6
5
4
3
2
1
t
q
7
p AV button
Use this button to select the devices such as a video
connected to the projector’s AV IN (EXT. input) terminal.
Each time you press the button, the selection changes as
follows:
Y/C VIDEO YPBPR
* Y/C and VIDEO can be used only when a video board
separately sold has been installed.
q LENS LOCK Ô UNLOCK switch
With this switch set at the LOCK position, adjustment
operations (focus, zoom or shift) with the remote control
are disabled, preventing adjustment contents from being
inadvertently changed while the remote control is being
used. When adjustment is needed, set the switch to the
UNLOCK position.
w PRESET button
While making adjustment on the main or setting menu,
use this button to reset the setting of the selected item to
the factory-set value. This button works only for numerical
settings and does not work for switching ON to OFF.
e QUICK ALIGN. (Quick Alignment) button
Use this button to automatically adjust TRACKING,
PHASE, H. POS. and V. POS. of the projected video.
During the automatic adjustment, QUICK-ALIGNMENT
appears on the screen, and disappears after it is finished.
Memo
Quick alignment function:
Does not work for video input (EXT. IN input terminal) signals.
Works only for computer-related (RGB-1 and-2 input terminals)
signals.
CAUTION
• Automatic adjustment with the quick alignment function should be
done on a bright still-picture screen. This function may not work
correctly on a dark screen or motion-picture screen. If adjustment
with this function is not satisfactory, adjust TRACKING, PHASE, H.
POS. and V. POS. manually (see pages 30, 36 and 37).
r AV HIDE button
Use this button to turn off the video image temporarily.
Pressing it again makes the video image to resume.
t Not used with this projector
* *
