4

English

Step

3

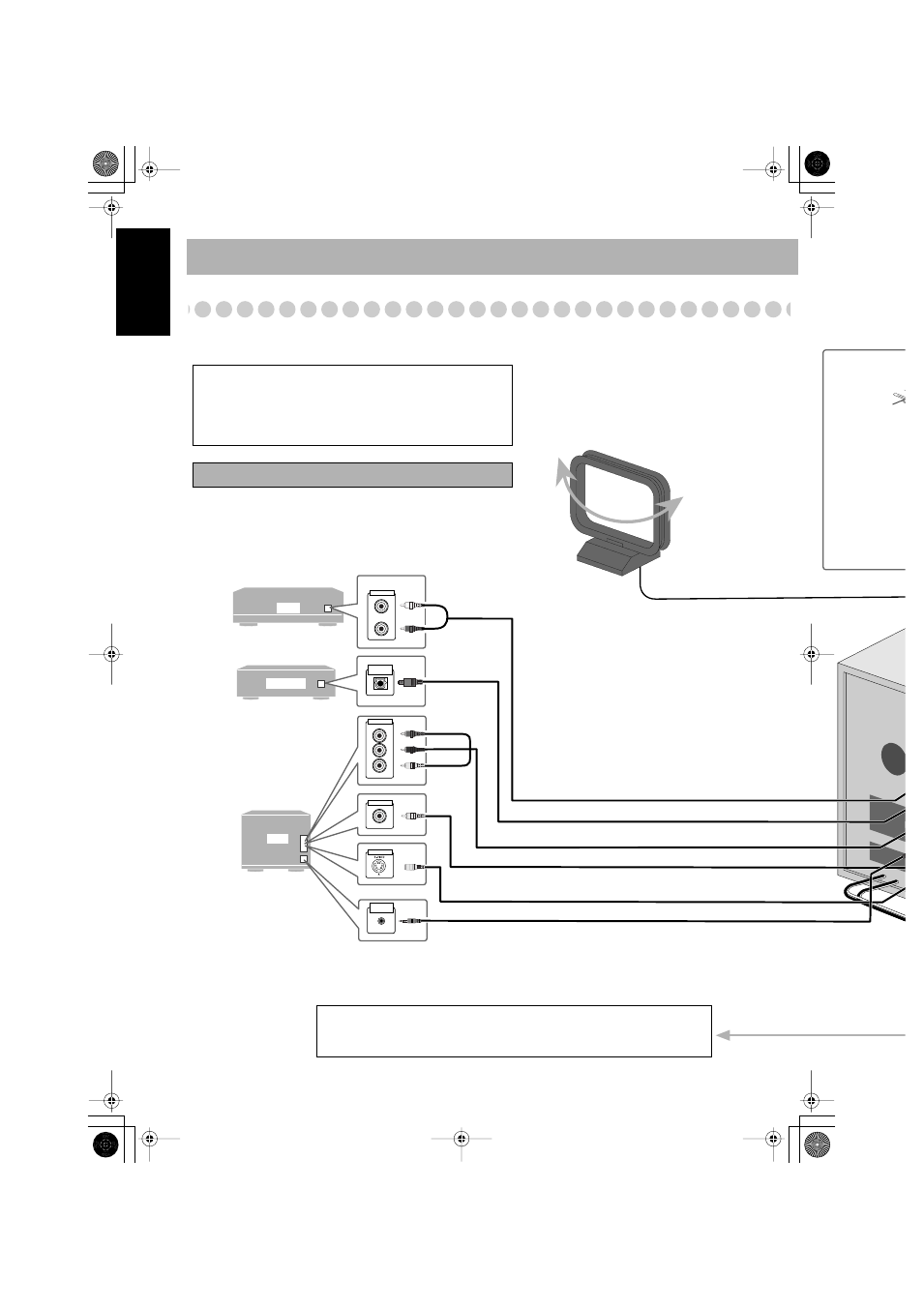

: Hook Up

If you need more detailed information, see page 6.

TV

AUX

DECODER

AUDIO OUT

P

B

P

R

Y

OPTICAL

DIGITAL IN

AV

COMPU LINK

VIDEO INPUT

VIDEO INPUT

VIDEO INPUT

Illustrations of the input/output terminals below are typical
examples.
When you connect other components, refer also to their
manuals since the terminal names actually printed on the rear
may vary.

Turn the power off to all components before connections.

Audio cord (not supplied)

VCR, etc.

White

Red

Optical digital cord (not supplied)

Component video cord (not supplied)

Red

Blue

Green

Composite video cord (supplied)

AM loop antenna (supplied)
Turn it until the best reception is
obtained.

To a wall outlet
Plug the AC power cord only after all connections are complete.
• If the wall outlet does not match the AC plug, use the supplied AC plug adaptor.

S-VIDEO cord (not supplied)

Yellow

AV COMPU LINK cord (not supplied)
(cord with monaural mini plug)

• For details, see “To connect the AV

COMPU LINK cords” on page 7.
