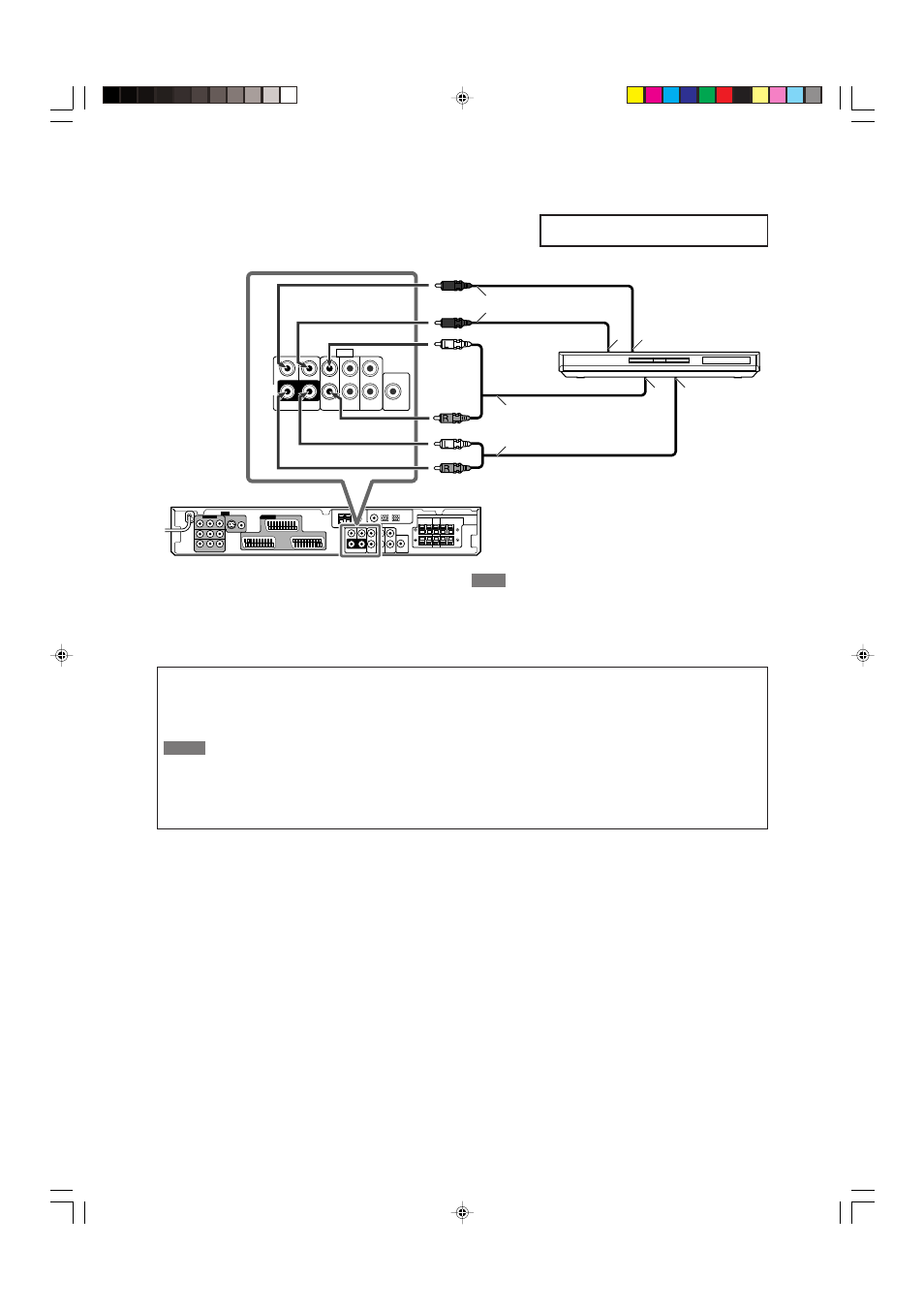

When you connect a DVD player with its analogue discrete output jacks (DVD MULTI IN):
This connection is the best connection method for enjoying DVD Audio sounds. When a DVD Audio disc is played back, the original high-
quality sounds can be reproduced only using this connection.
Stereo audio cable
(not supplied)
Monaural audio cable
(not supplied)
DVD player
Å To subwoofer output
ı To center channel audio output
Ç To left/right front channel audio output
Î To left/right surround channel audio output
Turn off all components before making
connections.
About “DVD MULTI”
When you select “DVD MULTI” as the source (see page 12), you can enjoy analogue discrete output sound (5.1-channel
reproduction) from the connected component.
• You may need to select analogue discrete output mode on the component.
NOTES
• When using the headphones, you can listen to the front channel sounds (left and right) only. (3D HEADPHONE mode is not
available.)
• When TV Direct is activated while “DVD MULTI” is selected as the source, the source changes to the last selected source from
among “DVR/DVD,” “VCR,” and “VIDEO” (see page 14).
• Surround/DSP modes (see pages 38 to 41) are not available for “DVD MULTI.”
NOTE
Do not connect different components to the DVD MULTI IN jacks
and AV IN/OUT (SCART) DVR/DVD terminal (see page 7);
otherwise, sounds from both components are come out of the
speakers at the same time.
