3
Insignia NS-PDP42 42" Plasma TV-720P
www.insignia-products.com

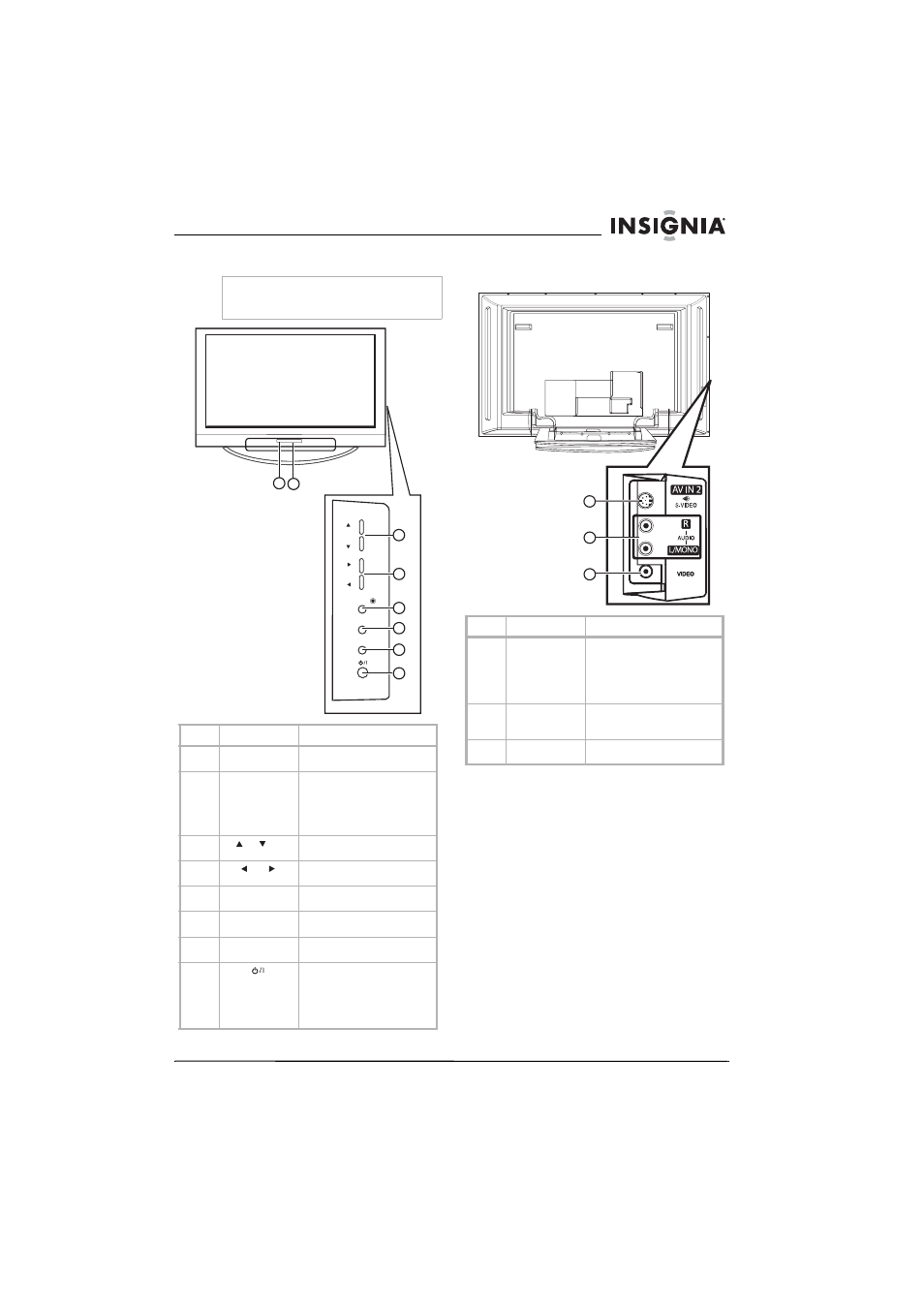

Front Back
Side jacks
Note
If your plasma TV stand has a protective film
covering, remove it, then wipe the stand with the
polishing cloth.
# Component Description
1 Remote control
sensor Receives signals from the remote
control. Do not block.
2 Power LED When your plasma TV is off, this
LED is red. When you turn on
your plasma TV, this LED blinks
green, then turns solid green just
before the image appears on the
screen.
3 CH /CH Press to go to the previous or
next channel.
4 VOL /VOL Press to decrease or increase the
volume.
5 ENTER Press to confirm selections in the
on-screen display (OSD).
6 MENU Press to open the on-screen
display (OSD).
7 INPUT Press to select the video input
source.
8 Power Press to turn your plasma TV on
or off.
Note: When your plasma TV is
off, power is still present. To
disconnect power, unplug the
power cord.
CH CH
VOL OL
ENTER ENTER
MENU MENU
INPUT INPUT
1 2
3
4
5
6
7
8
# Jack Description
1 S-VIDEO Connect an S-Video device to this
jack.
Note: An S-Video cable does not
carry sound. You must connect
an audio cable to the audio jacks
for sound.
2 AUDIO-R and
AUDIO L MONO Connect the right and left audio
for a standard AV or S-Video
device to these jacks.
3 VIDEO Connect the video for a standard
A/V device to this jack.
1
2
3
