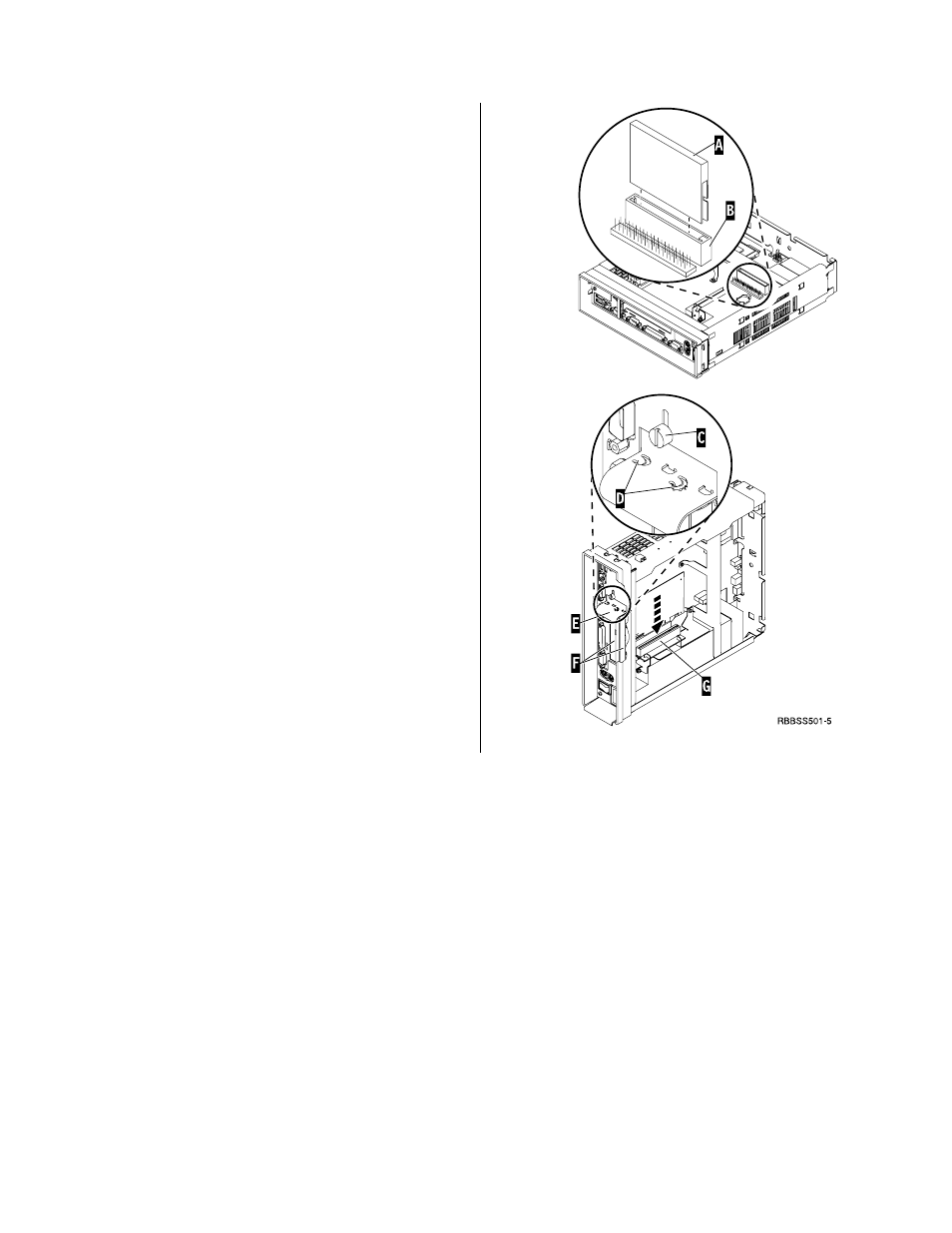

Replacing a CompactFlash card
Read “Caution notices” on page vi, and “Removing the logic
unit to install parts” on page 45 before continuing.
1. Uninstall the N2800e thin client CompactFlash card by
pulling it out of the connector
B .
2. Match the grooves on the sides of the CompactFlash
card that you are installing (
A ) to the inside of the
connector
B .
3. Install the CompactFlash card
A into the connector
B .
Note: Do not force the card into the connector, as it will
damage both the thin client, and the CompactFlash card.
4. See “Reassembling the thin client” on page 45.
Installing an optional PCI card
Complete the procedure, “Removing the logic unit to install
parts” on page 45 before performing the following
Peripheral Component Interconnect (PCI) procedure.
1. Loosen the thumb screw
C to slide the plate E up.
2. Remove the PCI slot covers
F .
3. From inside the logic unit, install the PCI card down
into both the slot, and the PCI socket
G .
Note: Inserting the first PCI card into the socket closest
to the logic board makes installing a second PCI card
easier.
4. Install PCI slot covers over any empty slots.
5. Slide the plate
E down until the tabs D secure the
PCI slot covers
F firmly into place.
6. Tighten the thumb screw
C ,
7. See “Reassembling the thin client” on page 45.
