EMC shield (CD-ROM drive bay)
To remove the EMC shield:
1.
Remove the front cover.
2.
Remove the single screw that holds the EMC shield in place.

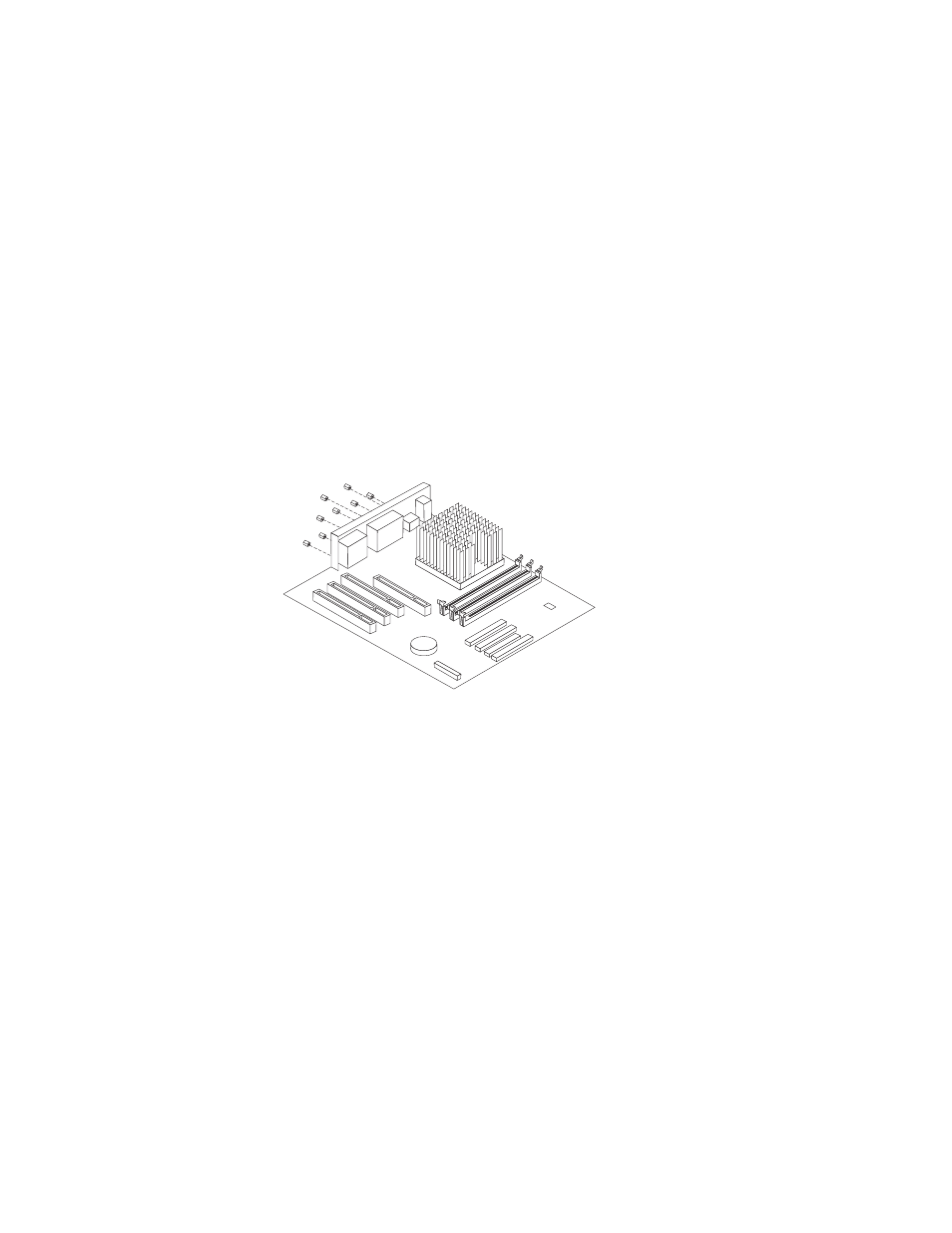

EMC shield (system board)
To remove the EMC shield from the system board:
1.
Remove the eight I/O screws that hold the EMC shield in place.
