2.8 Connecting I/O Devices

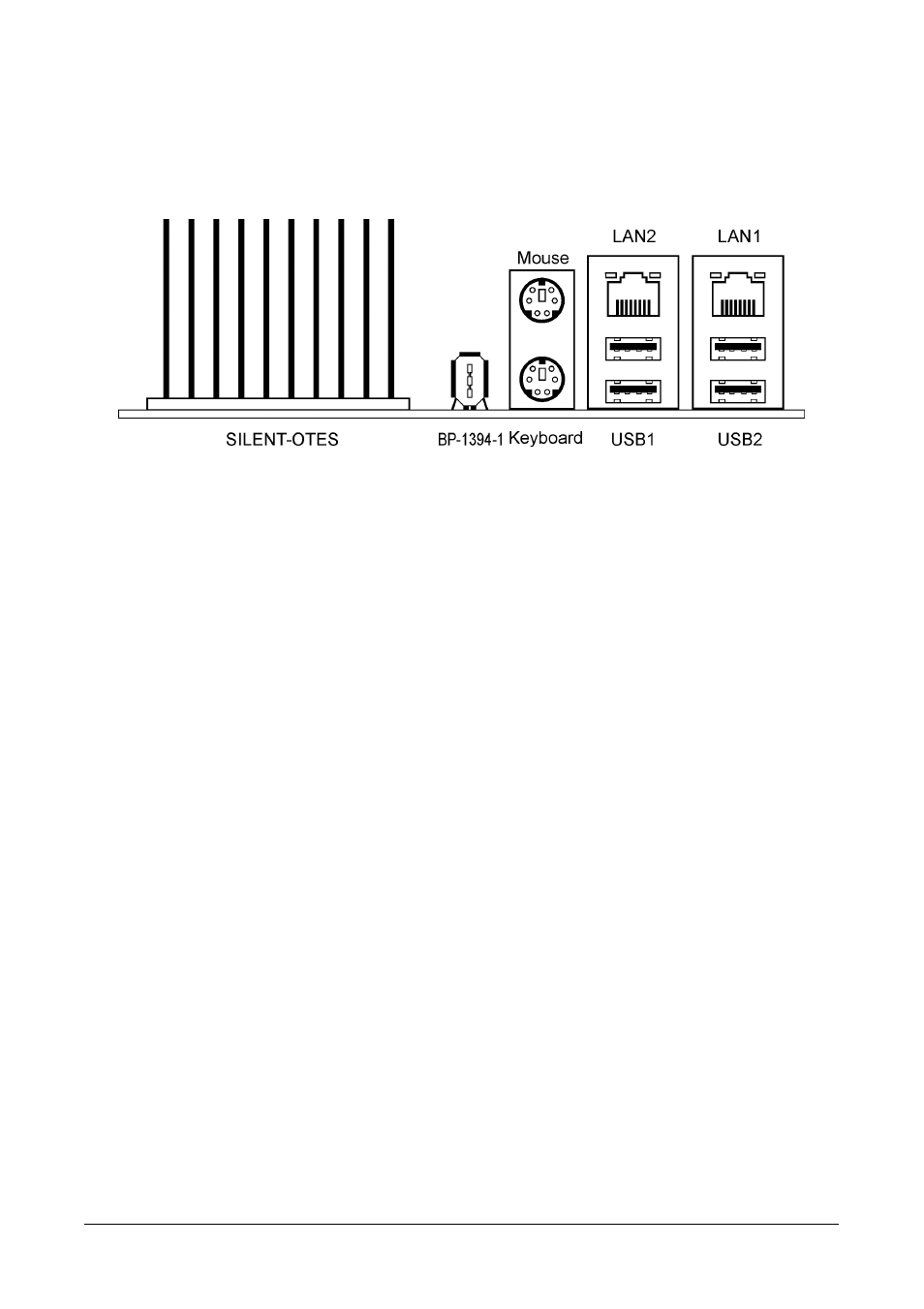

The rear I/O part of this motherboard provides the following I/O ports:
• Silent OTES: The Silent OTES (Silent Outside Thermal Exhaust System) is a device
specifically designed to silently cool the motherboard's North Bridge chipset.
(Keep the area for outgoing heat wave open.)
• BP-1394-1: Connects to devices of IEEE1394 protocol.
• Mouse: Connects to PS/2 mouse.
• Keyboard: Connects to PS/2 keyboard.
• LAN1/LAN2: Connects to Local Area Network.
• USB1/USB2: Connects to USB devices such as scanner, digital speakers, monitor, mouse,
keyboard, hub, digital camera, joystick etc.
2-26
AW8D
