2.6 Connecting Optional Devices

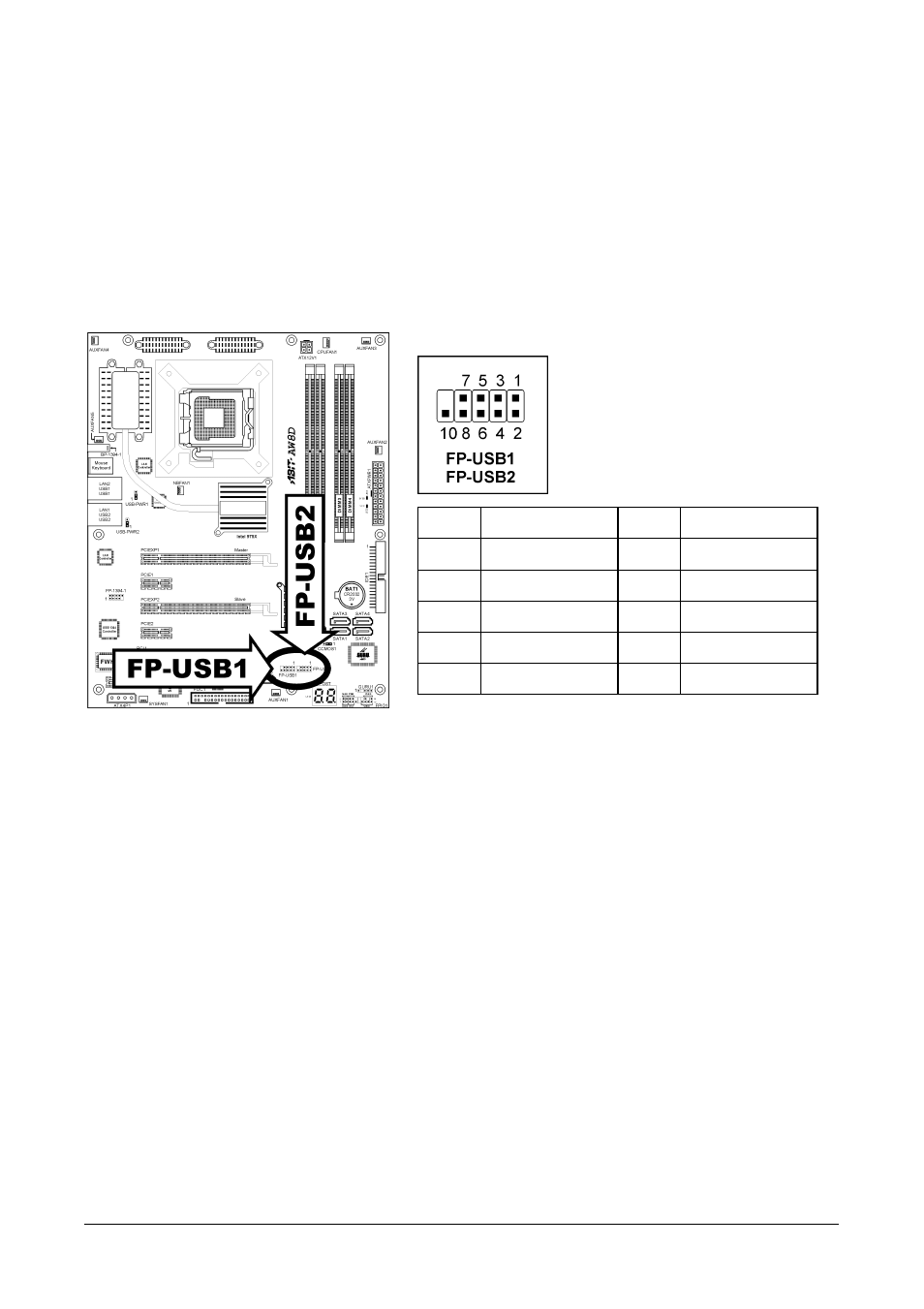

2.6.1 Additional USB 2.0 Port Headers
Besides the 4x USB 2.0 ports located at rear I/O part, this motherboard also features 2x more
USB 2.0 headers onboard. Each header supports 2x additional USB 2.0 ports by connecting
bracket or cable to the rear I/O panel or the front-mounted USB ports of your chassis.
Pin
Pin Assignment
Pin
Pin Assignment
1 VCC 2 VCC
3 Data0
- 4 Data1
-
5 Data0
+ 6 Data1
+
7 Ground 8 Ground
9 NC 10 NC
※ Make sure the connecting cable bears the same pin assignment.
2-22
AW8D
