Hardware Setup
AW8D
2-23

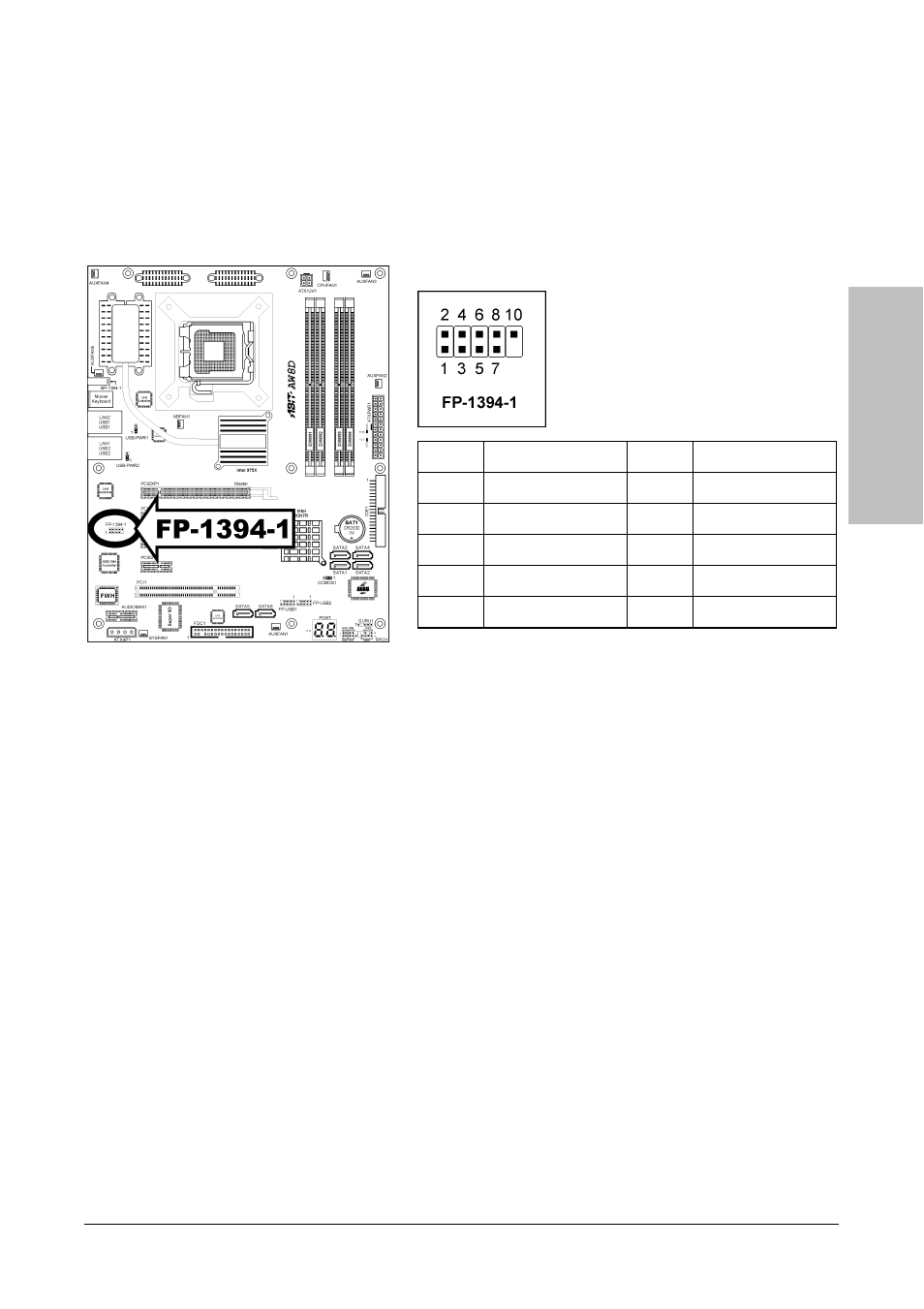

2.6.2 Additional IEEE1394 Port Header
Besides the 1x IEEE1394 port located at rear I/O part, this motherboard also features 1x more
IEEE1394 header onboard. Each header supports 1x additional IEEE1394 port by connecting
bracket or cable to the rear I/O panel or the front-mounted IEEE1394 port of your chassis.
Pin Pin
Assignment
Pin Pin
Assignment
1
TPA0 +
2
TPA0 -
3 Ground 4 Ground
5 TPB0
+ 6 TPB0
-
7 +12V 8 +12V
9 NC 10
Ground
※ Make sure the connecting cable bears the same pin assignment.
