Hardware Setup
AW8D
2-25

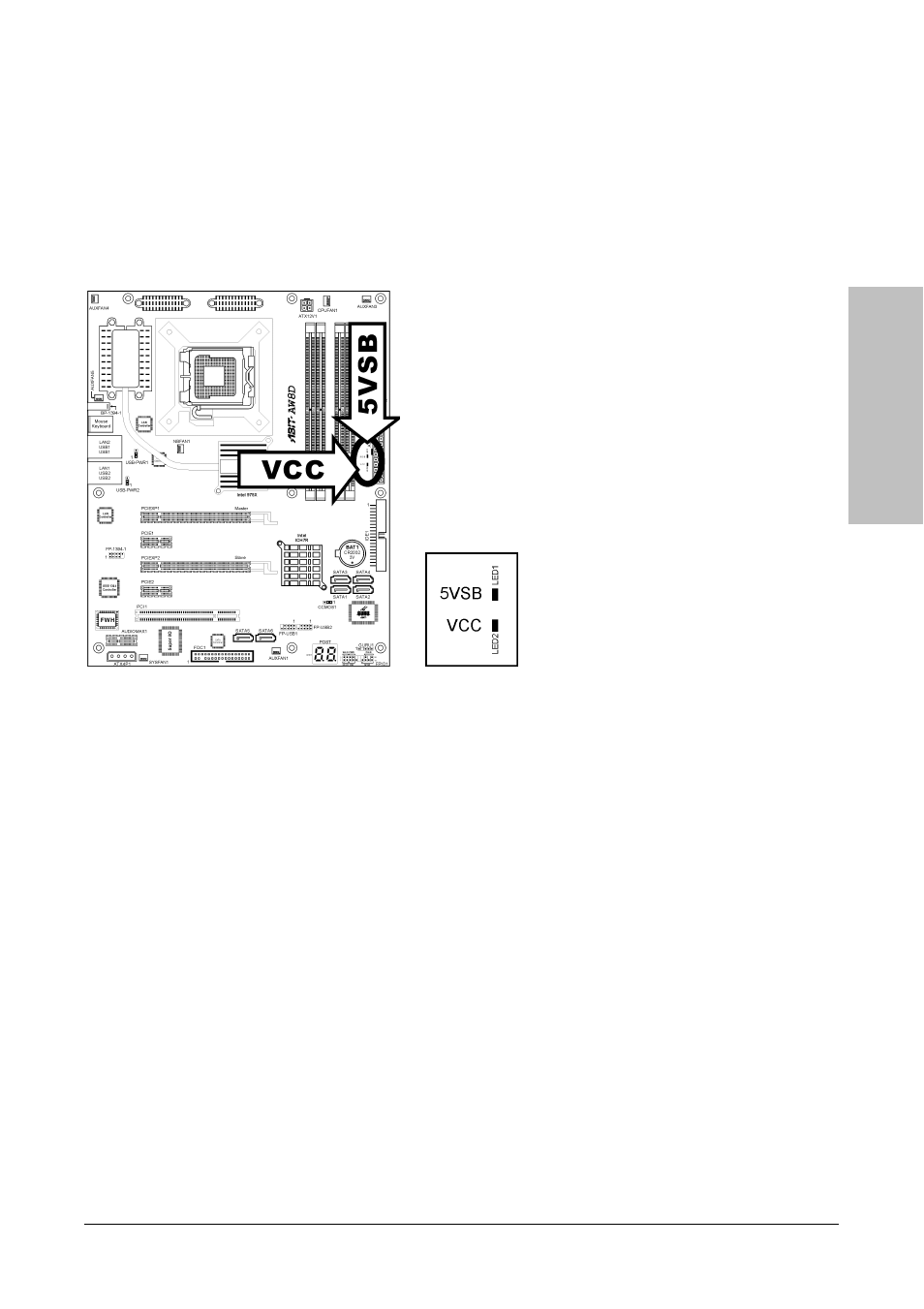

2.7.2 Power Source Indicators
These indicators work as a reminding device to display the power status of this motherboard
with power source connected.
• 5VSB: This LED lights up when the power supply is connected with power source.
• VCC: This LED lights up when the system power is on.
