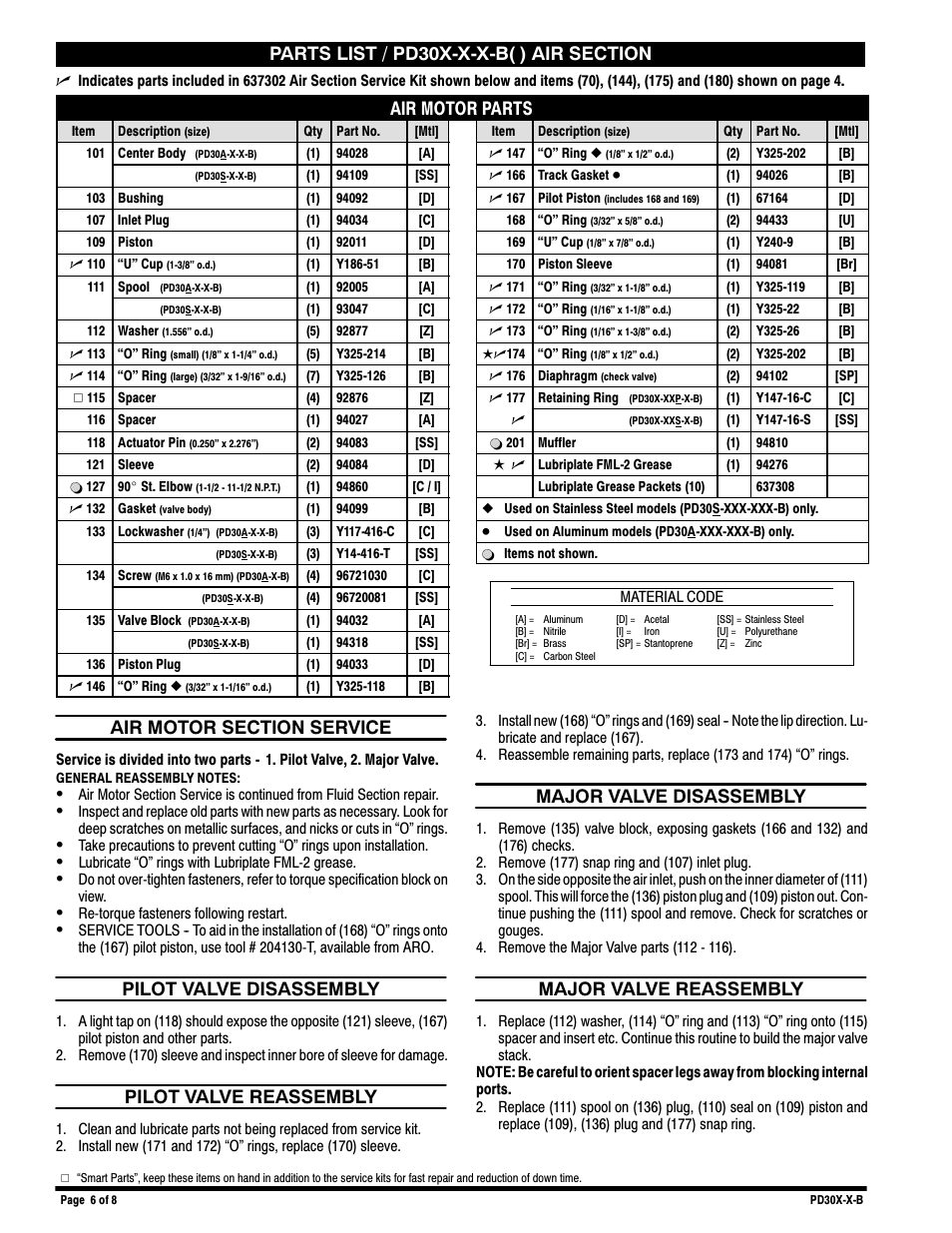

Air motor parts, Pilot valve disassembly, Pilot valve reassembly – Ingersoll-Rand PD30X-X-B User Manual
Page 6: Major valve disassembly, Major valve reassembly
