INSTALLATIONS

I815E User’s Manual

17

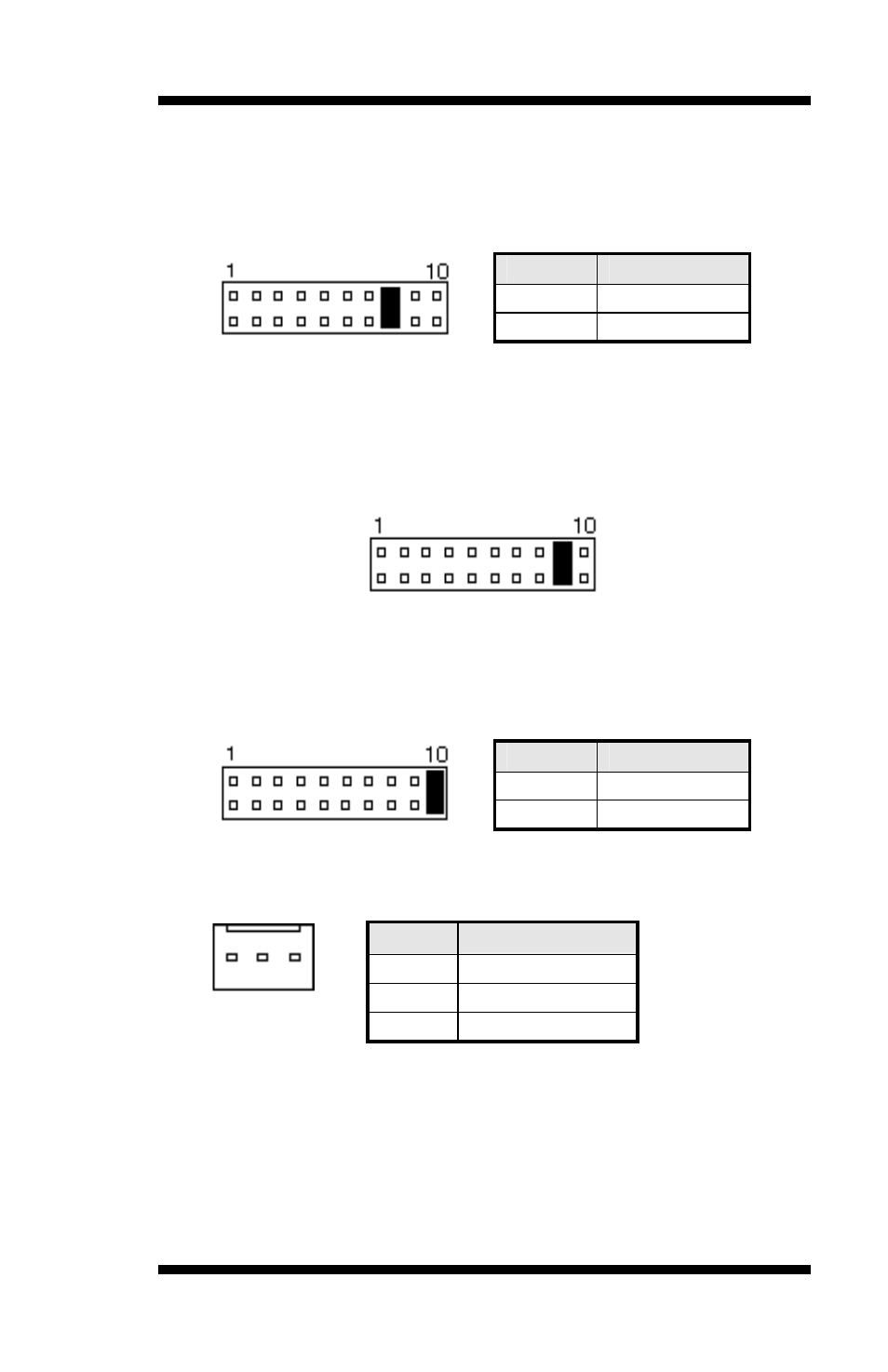

Turbo LED Connector: Pins 8 and 18
There is no turbo/deturbo function on the board. The Turbo
LED on the control panel will always be On when attached to
this connector.

Pin #

Signal Name

8

5V

18

Ground


Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without
turning the main power switch off and then on again.
Orientation is not required when making a connection to this
header.


Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on
control panel. This LED will flash when the HDD is being
accessed.

Pin #

Signal Name

10

Ground

20

5V


FAN1: CPU Fan Power Connector
FAN1 is a 3-pin header for the CPU fan. The fan must be a 12V fan.

Pin #

Signal Name

1

Ground

2

+12V

3 2 1

3

Rotation detection
