Dimm – Intel I815E User Manual
Page 11

INSTALLATIONS
I815E User’s Manual
7
Installing the Memory (DIMM)
The I815E board supports one 168-pin DIMM socket for a maximum
total memory of 256MB in SDRAM type. The memory module capacities
supported are 32MB, 64MB, 128MB and 256MB.
Installing and Removing DIMMs
To install the DIMM, locate the memory slot on the board and perform
the following steps:
1. Hold the DIMM so that the two keys of the DIMM align with those on
the memory slot.
2. Gently push the DIMM in an upright position until the clips of the slot
close to hold the DIMM in place when the DIMM touches the bottom
of the slot.
3. To remove the DIMM, press the clips with both hands.

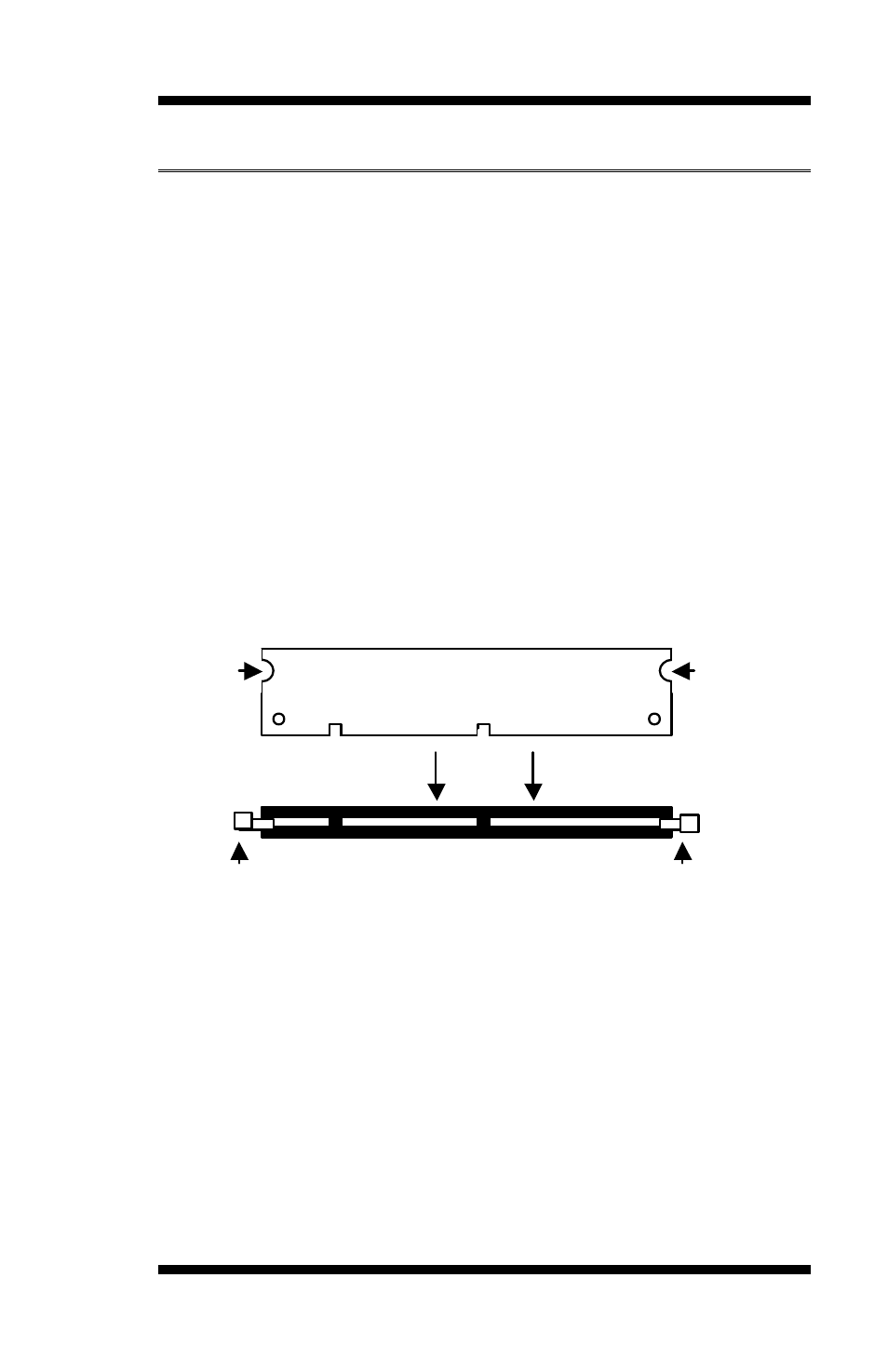

Top View of DIMM Socket
DIMM
Lock
Lock
Lock
Lock
