Chapter 2

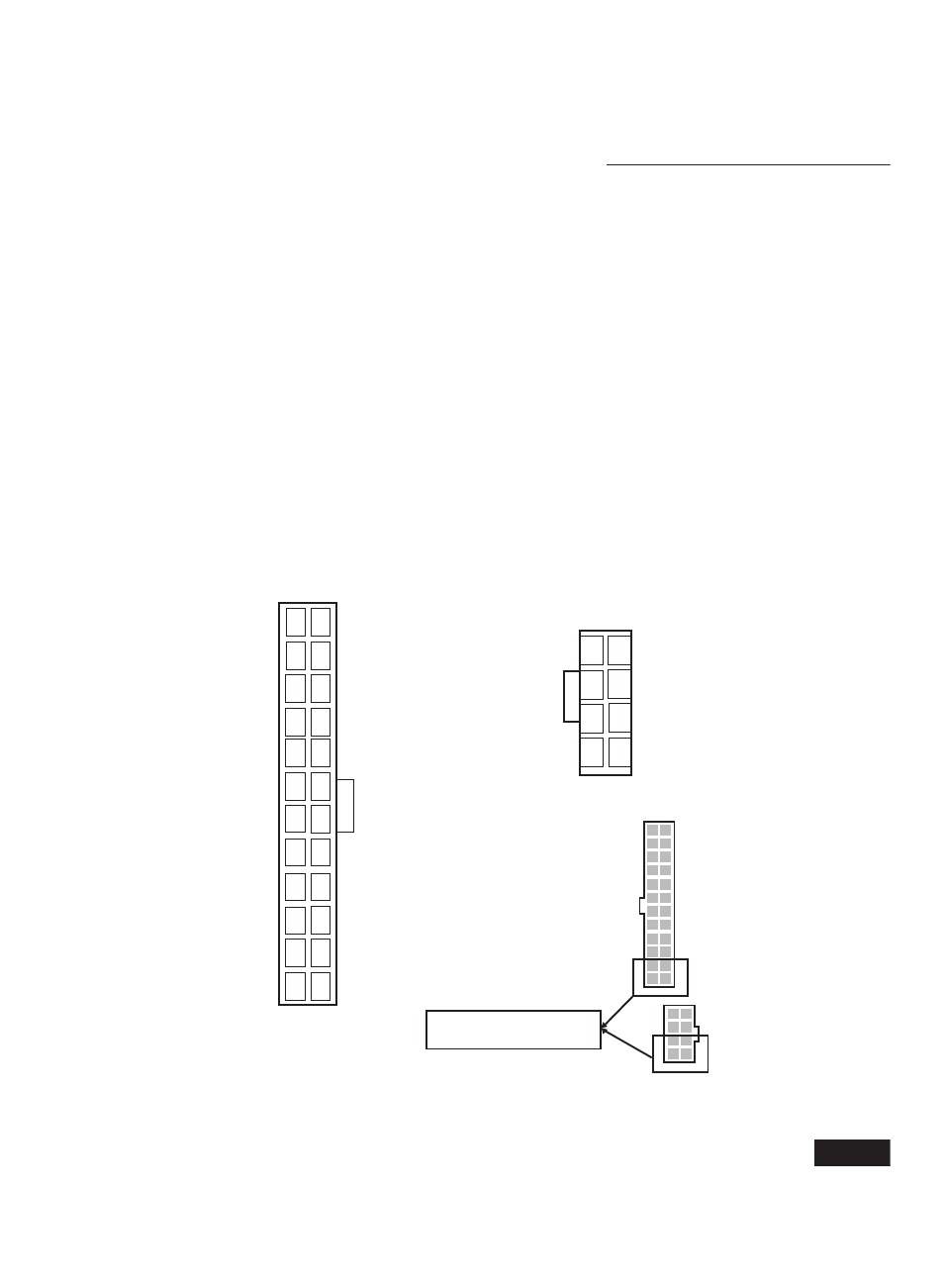

24-pin PowerSupply
Connector
8-pin PowerSupply
Connector(+12V)
+3.3V
+12V
+12V
5VSB
PWR_OK
COM
+5V
COM
+5V
COM
+3.3V
+3.3V
COM
+5V
+5V
+5V
RESERVED
COM
COM
COM
PS_ON
COM
-12V
+3.3V
Power Connectors:
This are for the required
EPS 12V power supply
EPS 12V PSU Only
2X12 24-pin Connector
2X4 8-pin Connector
+12V
+12V
+12V
+12V
GND
GND
GND
GND
EPS12V Power Connectors
There are two power connectors on the motherboard of the required
EPS 12V power supply. These are not standard ATX connectors. DJ800
needs a minimum 460-watt EPS 12V power supply that complies with
the Intel Xeon processor power supply design guidelines. Find the proper
orientation of the connectors and push down firmly to make sure that
the pins are aligned (the connector will only insert properly when prop-
erly aligned). The 8-pin connector is a dedicated power connector to
supply power for the CPUs.
2-14
