5
ENGLISH
Connecting your Monitor
Be sure to read the
‘Safety Information’ at
the front of this User Guide
before carrying out this
procedure.

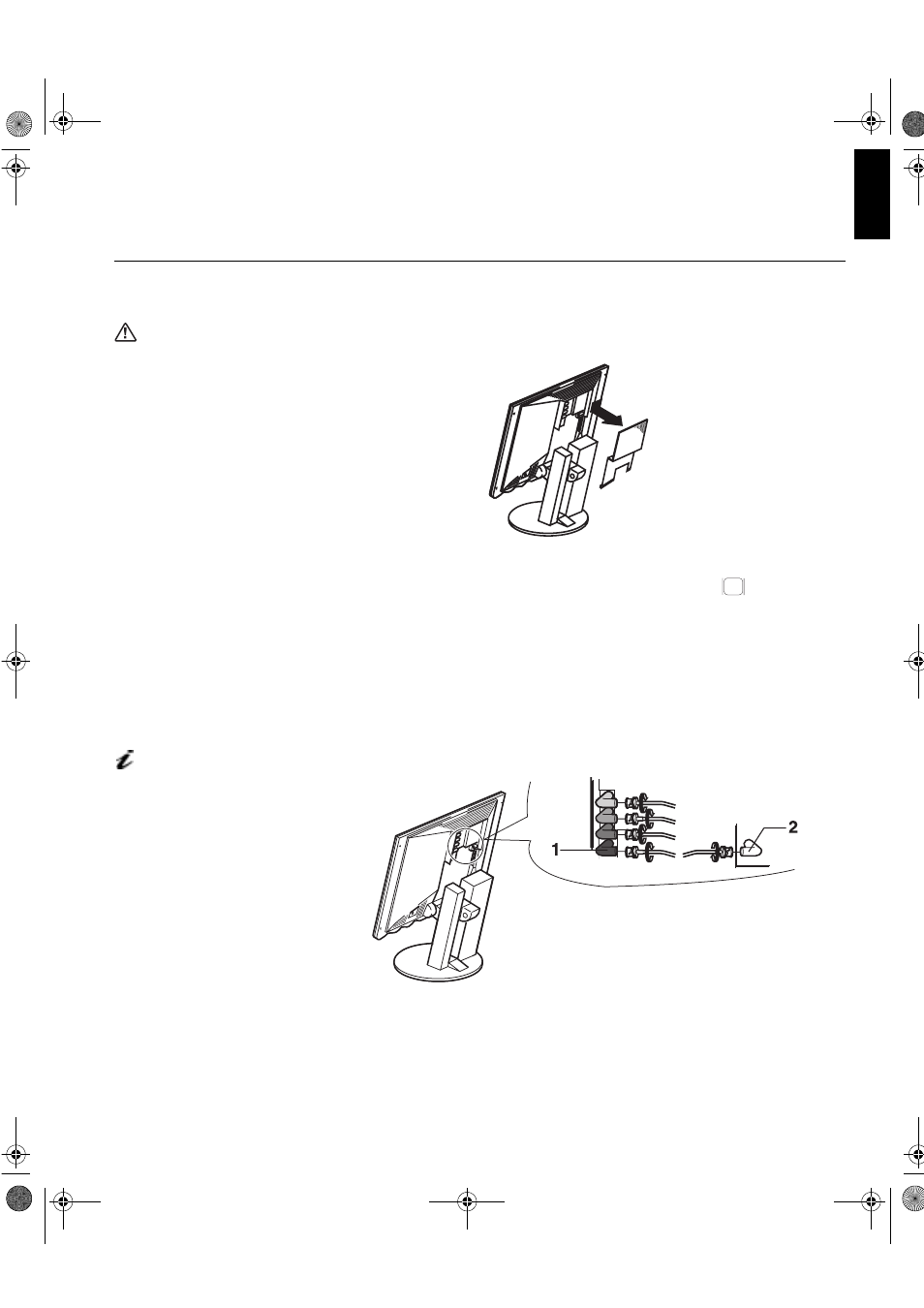

1. With the monitor standing vertically and at it’s greatest height, remove
the cable cover at the rear of the monitor.
2. Turn off your PC and all attached devices.
3. Plug the video interface cable into the socket marked on your
computer.
4. Connect the red, green and blue interface cables into the connectors of
the same color on the monitor. Position the ends of the cables in front of
the connectors, as shown. Plug the cables into the connectors and push
and twist the ends of the cables until they are firmly locked to the
connectors.
If power-saving function is
required, but the system
unit does not support power
management, then an optional
Keyboard/Mouse Y-cable (P/N:
03L7924) can be purchased
which allows access to this
function within the monitor.
5. If your cable has five connectors, connect the H-Sync (black) interface
cable to connection 1, and connect the V-Sync (white) interface cable to
connector 2.
