Page 53: Configuration

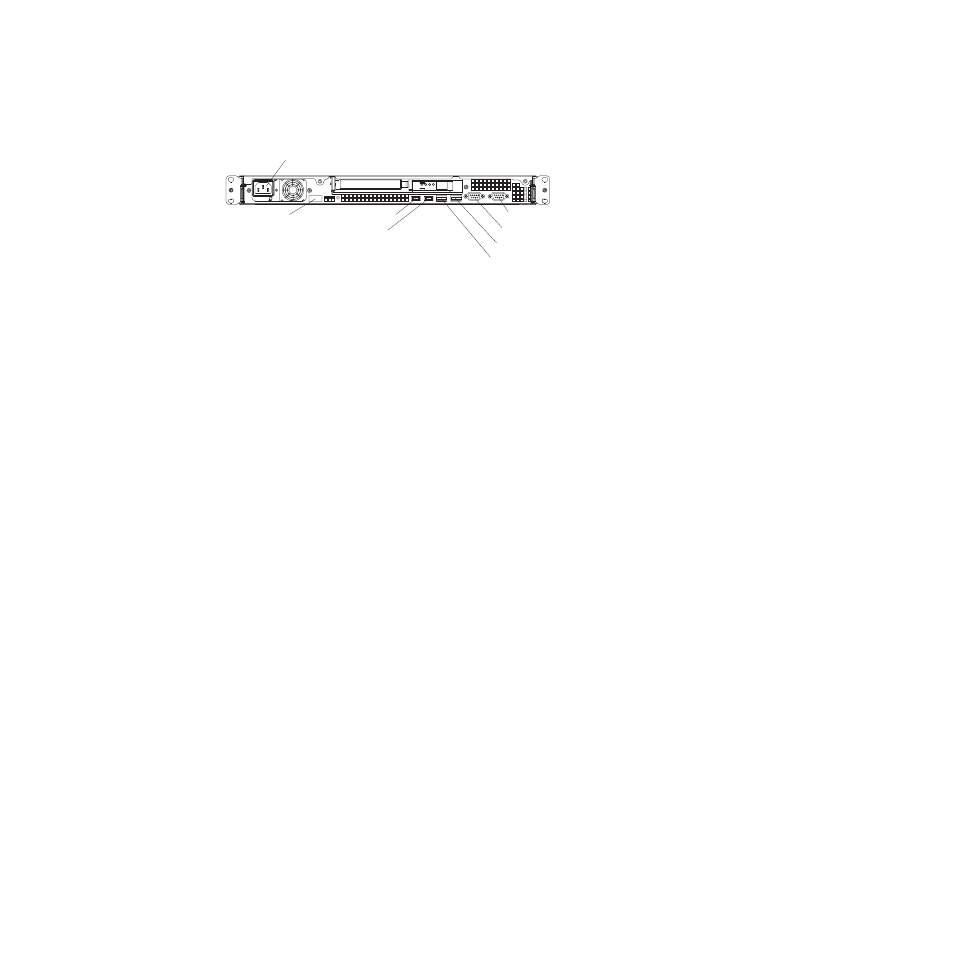

Rear
Power-cord connector
Serial connector
Video connector
Ethernet 2 connector
Ethernet 1 connector
USB 3 connector
USB 4 connector
Systems-management
connector
You
must
turn
off
the
server
before
you
connect
or
disconnect
cables.
See
the
documentation
that
comes
with
any
external
devices
for
additional
cabling
instructions.
It
might
be
easier
for
you
to
route
cables
before
you
connect
the
devices
to
the
server.
Cable
identifiers
are
printed
on
the
cables
that
come
with
the
server
and
devices.
Use
these
identifiers
to
connect
the
cables
to
the
correct
connectors.
If
the
server
comes
with
an
installed
operating
system,
see
the
documentation
that
comes
with
the
operating
system
for
additional
cabling
instructions.
There
is
no
keyboard
connector
or
mouse
connector
on
the
server.
You
can
connect
a
USB
keyboard
and
USB
mouse
to
the
server
by
using
the
USB
connectors.
Updating
the
server
configuration
When
you
start
the
server
for
the
first
time
after
you
add
or
remove
an
internal
optional
device
or
external
SAS
device,
you
might
receive
a
message
that
the
configuration
has
changed.
The
Configuration/Setup
Utility
program
starts
automatically
so
that
you
can
save
the
new
configuration
settings.
For
more
information,
see
Some
optional
devices
have
device
drivers
that
you
must
install.
For
information
about
installing
device
drivers,
see
the
documentation
that
comes
with
each
device.
If
the
server
has
a
RAID
configuration
that
uses
the
SAS/SATA
controller
with
integrated
RAID
(hot-swap
SATA
or
SAS
models
only)
and
you
have
installed
or
removed
a
hard
disk
drive,
you
might
have
to
reconfigure
the
disk
arrays.
If
the
server
has
an
optional
RAID
adapter
and
you
have
installed
or
removed
a
hard
disk
drive,
see
the
documentation
that
comes
with
the
RAID
adapter
for
information
about
reconfiguring
the
disk
arrays.
If
the
server
is
a
simple-swap
model
that
contains
a
SATA
RAID
back
plate,
you
can
use
the
LSI
Logic
Configuration
Utility
program
to
configure
the
simple-swap
SATA
hard
disk
drives.
For
information
about
configuring
an
integrated
Gigabit
Ethernet
controller,
see
Chapter
2.
Installing
optional
devices
39
