4.
Install
the
PCI-X
riser-card
power
cable.
a.
Separate
the
P4
connector
on
the
cable
that
connects
the
power
supply
to
the
CD/DVD
interposer
card.
b.
Connect
the
short
4-wire
length
of
the
riser-card
power
cable
(
2
to
3 )
to
the
two
halves
of
the
P4
connector,
as

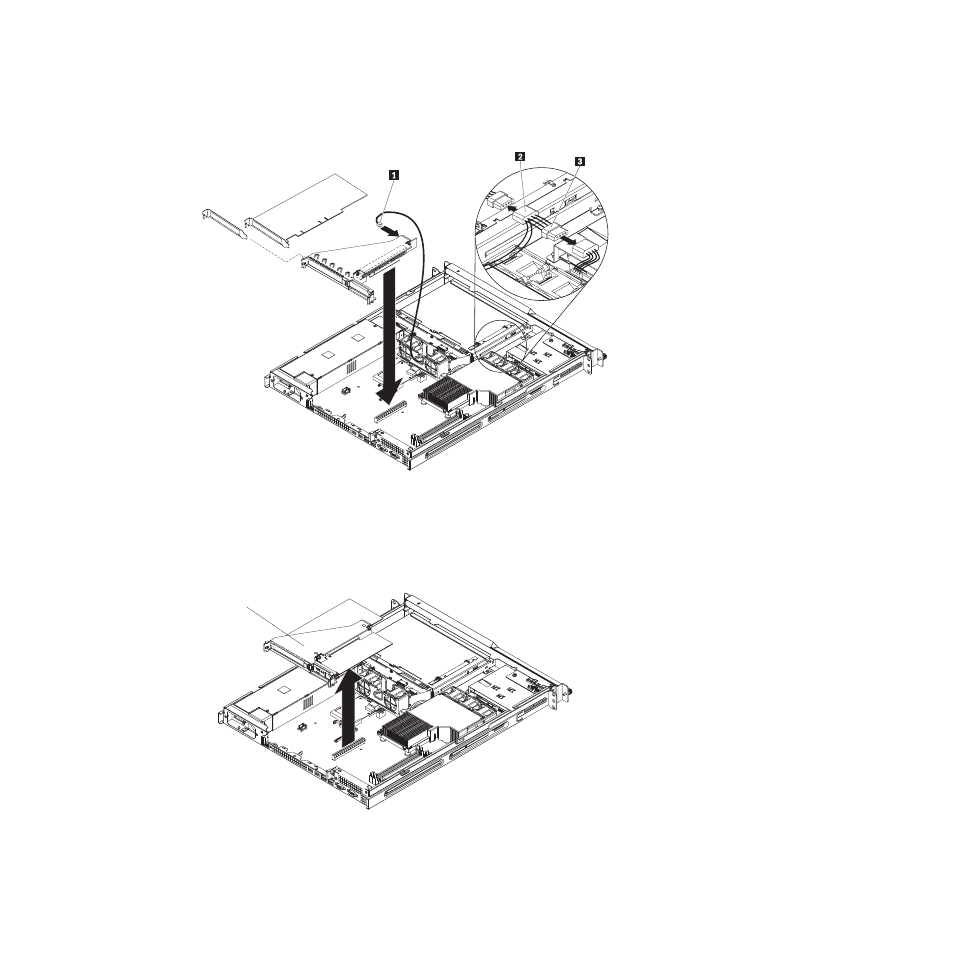

shown
in
the
illustration.
c.
Make
sure
that
the
long
2-wire
section
(
2
to
1 )
reaches
the
riser-card
assembly.
Route
the
cable
between
fans
4
and
5
to
reach
the
assembly.
Riser-card
assembly
5.
Touch
the
static-protective
package
that
contains
the
PCI-X
riser-card
assembly
to
any
unpainted
metal
surface
on
the
server.
Then,
remove
the
assembly
from
the
static-protective
package.
Avoid
touching
the
components
and
gold-edge
connectors
on
the
assembly.
