Page 33: Connectors
System-board
optional-device
connectors

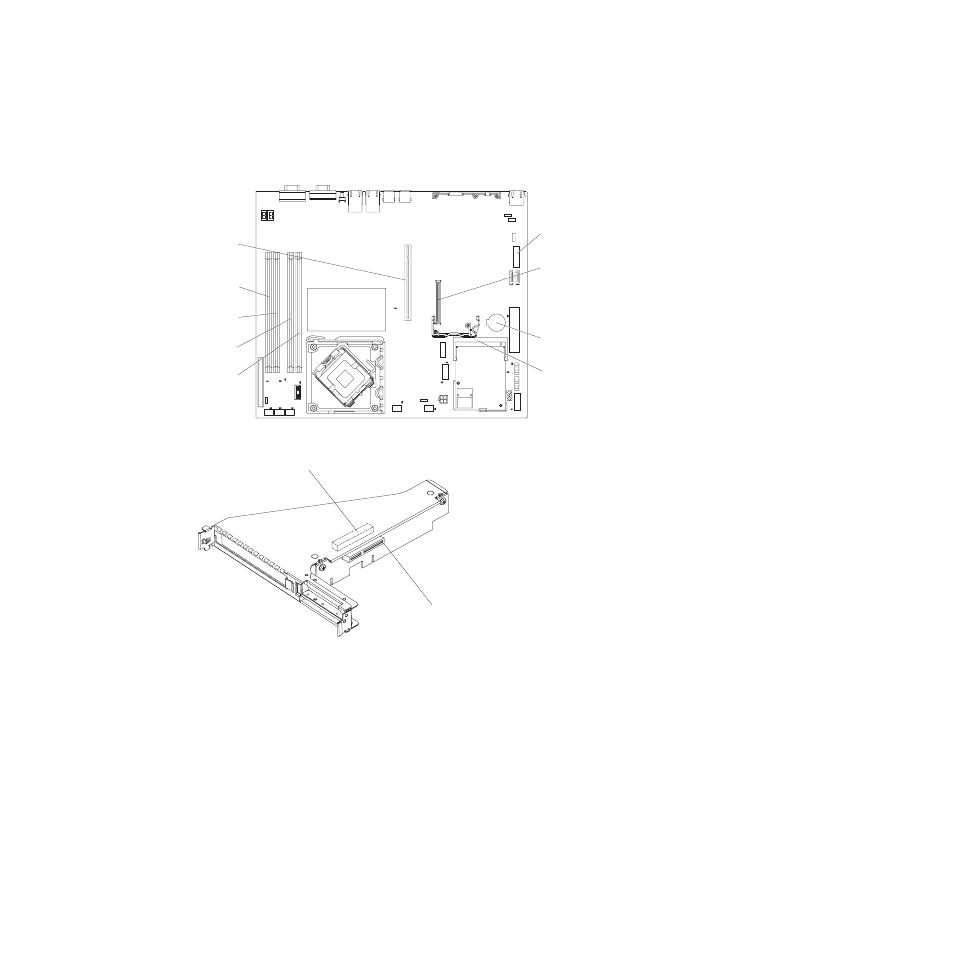

The
following
illustration
shows
the
connectors
for
user-installable
optional
devices.
Remote Supervisor
Adapter II SlimLine
connector
Other
systems-management
adapter connector
Battery connector
SAS/SATA controller
connector
DIMM 1
connector
DIMM 2
connector
DIMM 3
connector
DIMM 4
connector
Riser-card
connector
SAS/SATA
controller
card
The
following
illustration
shows
the
locations
of
the
PCI
Express
slots
on
the
riser-card
assembly.
PCI Express x8 slot 1
PCI Express x8 slot 2
Chapter
2.
Installing
optional
devices
19
