8.

Press

the

Remote

Supervisor

Adapter

II

SlimLine

firmly

into

the

connector

and

make

sure

that

all

tabs

on

both

mounting

brackets

secure

the

adapter

in

place.

Attention:

Incomplete

insertion

might

cause

damage

to

the

server

or

the

adapter.

9.

If

a

three-quarter-length

adapter

is

installed

in

expansion

slot

1

on

the

riser-card

assembly,

remove

it.

You

can

replace

it

with

a

half-length

adapter

if

you

choose

to

do

so.

10.

Carefully

align

the

riser-card

assembly

with

the

guides

on

the

rear

of

the

server

and

with

the

riser-card

connectors

on

the

system

board;

then,

press

down

on

the

assembly.

Make

sure

that

the

riser-card

assembly

is

fully

seated

in

the

riser-card

connectors

on

the

system

board.

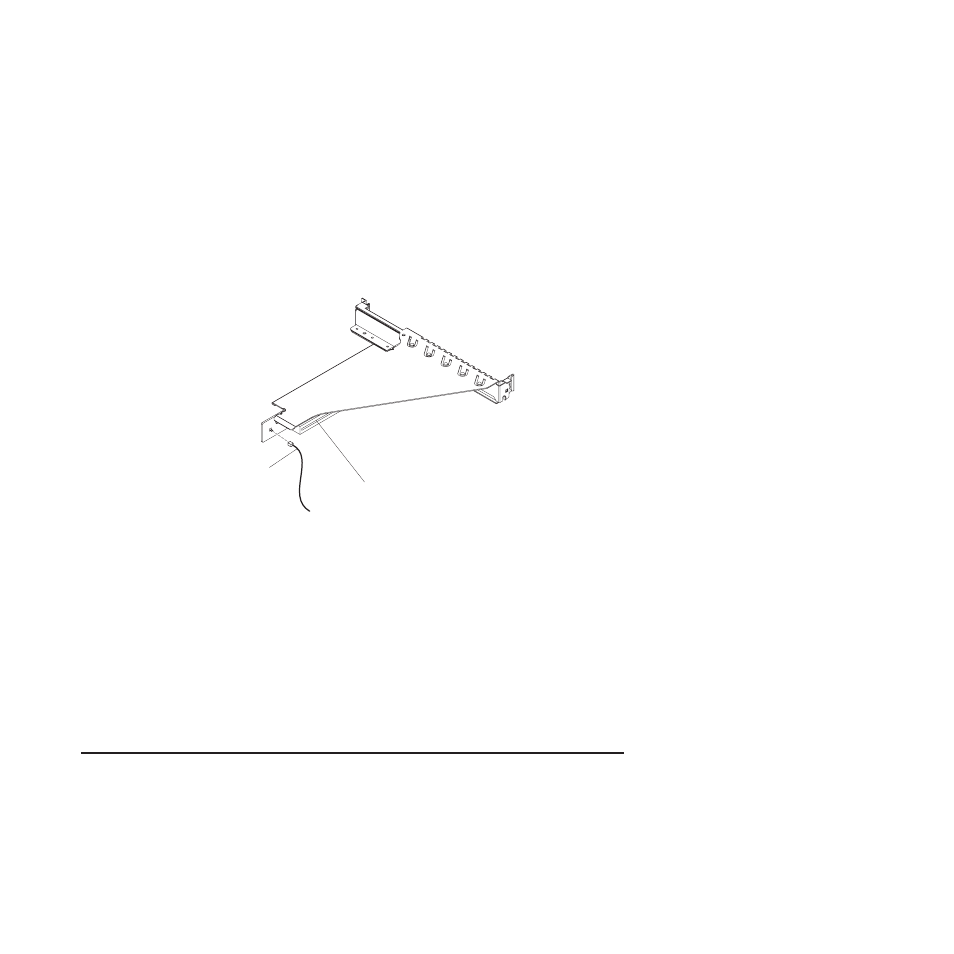

PCI-X slot

Power cable

11.

If

the

riser-card

assembly

is

an

optional

PCI-X

riser-card

assembly

in

the

server,

reconnect

the

riser-card

power

cable

to

the

riser-card

assembly.

Note:

If

you

have

to

remove

the

Remote

Supervisor

Adapter

II

SlimLine,

spread

the

mounting

bracket

retention

latches

as

you

lift

the

Remote

Supervisor

Adapter

II

SlimLine,

to

disconnect

it

from

the

system

board;

then,

lift

it

out

of

the

server.

You

can

press

the

middle

of

the

mounting

bracket

toward

the

back

of

the

server

to

spread

the

retention

latches.

See

the

documentation

that

comes

with

the

Remote

Supervisor

Adapter

II

SlimLine

for

information

about

installing

the

firmware

and

configuring

the

adapter.

Create

a

backup

copy

of

the

configuration

so

that

if

you

have

to

replace

the

adapter

in

the

future

you

can

restore

the

configuration.

If

you

have

other

devices

to

install

or

remove,

do

so

now.

Otherwise,

go

to

installation”

Installing

a

hard

disk

drive

Locate

the

documentation

that

comes

with

the

hard

disk

drive

and

follow

those

instructions

in

addition

to

the

instructions

in

this

chapter.

Attention:

To

avoid

damage

to

the

hard

disk

drive

connectors,

make

sure

that

the

cover

is

in

place

and

fully

closed

whenever

you

install

or

remove

a

hard

disk

drive.

Chapter

2.

Installing

optional

devices

29
