Page 29: Connectors
System-board
internal
connectors

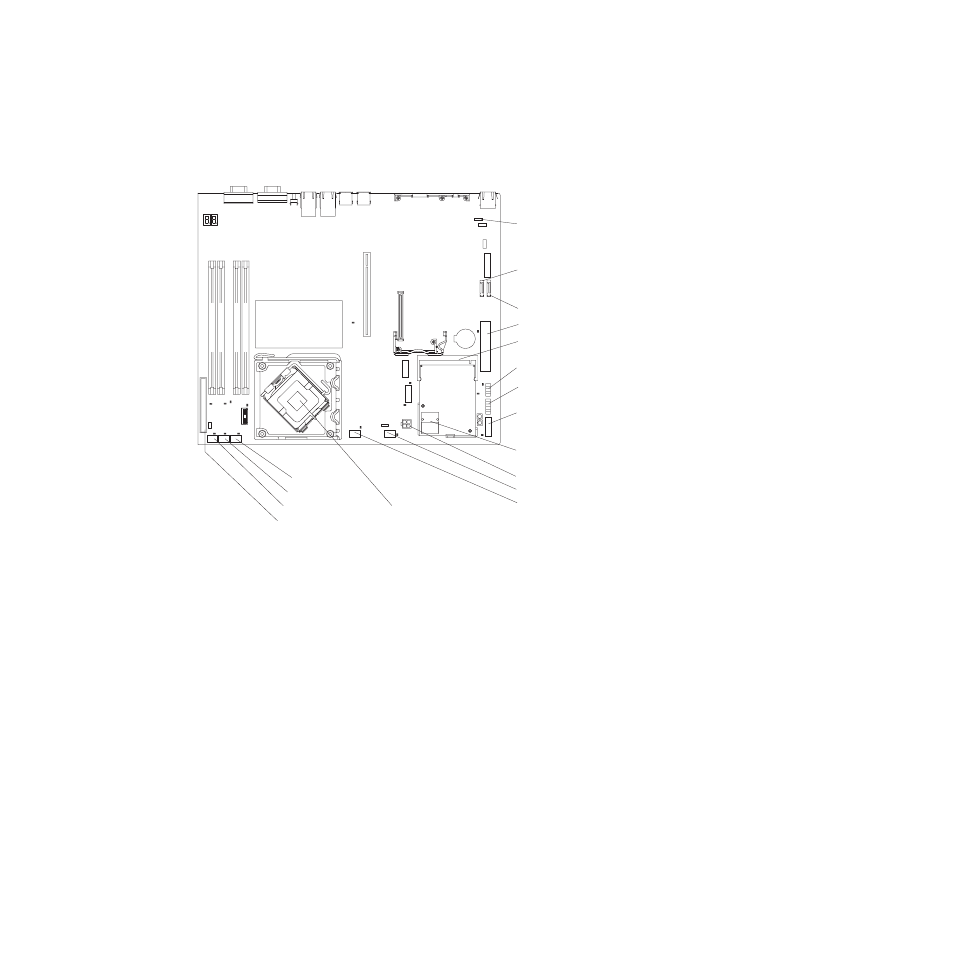

The
following
illustration
shows
the
internal
connectors
on
the
system
board.
SAS/SATA controller
card connector
Wake on LAN connector
SATA 2 connector
SATA 0 connector
Power connector
Front USB connector
Operator information
panel connector
Hot-swap SAS/SATA
backplane power
connector
Power connector
Fan 5 connector
Fan 4 connector
Microprocessor connector
Fan 3 connector
Fan 2 connector
Fan 1 connector
IDE connector
SAS signal connector
(some models)
DIMM 1 Slot
DIMM 2 Slot
DIMM 3 Slot
DIMM 4 Slot
SAS/SATA
controller
card
Important:
Use
only
a
supported
IBM
SAS/SATA
controller
in
the
SAS/SATA
controller
card
connector.
For
a
list
of
supported
optional
devices
for
the
server,
see
Chapter
2.
Installing
optional
devices
15
