Monessen Hearth DIRECT VENT GAS FIREPLACE KHLDV400 - Manual (Page 48)

48 73D0024
KHLDV Series Gas Fireplace

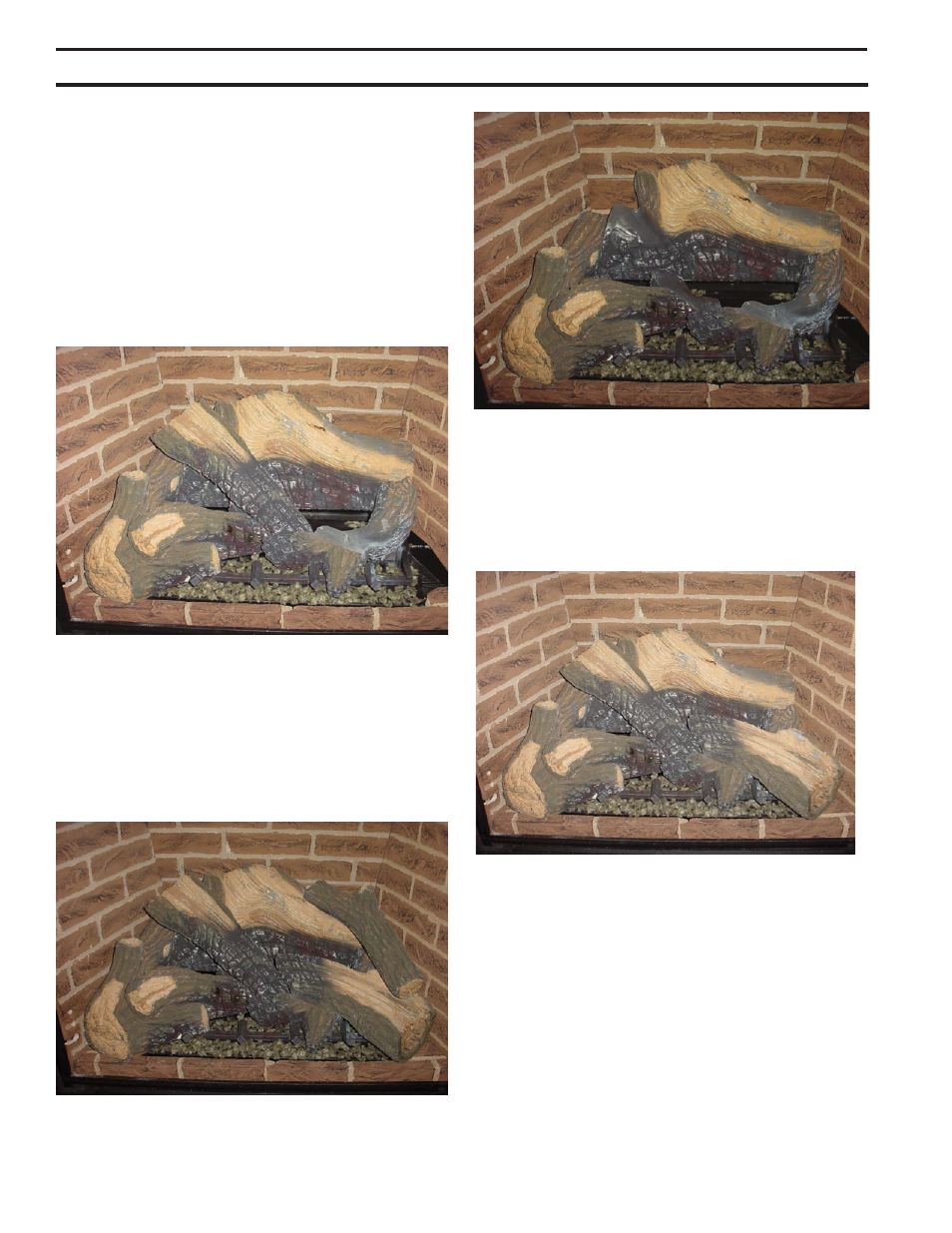

4. Place the middle log over the two burners by setting the
flat surface over the burner and matching the indenta-
tion located underneath the branch over the protrusion
located at V-branch on the left front log placed in step #3.
Rotate the right end of the log clockwise until it comes
in contact with the reverse bend on the bracket located
between the front and rear burner.
Step 7
LoG pLaceMent
Step 4
LG597
KHLDV middle log
LG597
Step 5
LG598
KHLDV upper left log
LG598
5. Place the upper left log at angle over the rear and the
middle logs by matching the indentation on the bottom
of the log with protrusion on the rear log. Set the pointed
end of the log over the flat surface of the middle log.
When this log is in place the pointed end will come in
contact with the back of the pilot log placed in step #2.
Step 6
LG599
KHLDV upper right log
LG599
6. Place the right upper log over the pilot log and the hearth
brick by matching the indentation on the bottom of the
log with the protrusion on the pilot log.
LG600
KHLDV upper right rear log
LG600
7. Place the upper right rear log over the rear log and the
right upper log by matching the indentations located at
the bottom with the protrusions on the rear log and the
right upper log.
8. Replace glass in reverse order of instructions on Page
45.
9. Slide the rings of the screen provided inside the unit
above the grate over the rod. Make sure the screen
handles are toward the center.
10.Hook the rod screen assemblies over the three hooks
located behind the face in front of the glass. note: The
opening of the hooks are toward the back.
