KHLDV Series Gas Fireplace
n Safety Features
1. Low Battery Detection
When low battery condition occurs, the transmitter will
turn off the fireplace.
A) Battery voltage is checked every one min-
ute. When the battery voltage is low, the
LCD displays a low battery icon which will
exist in all modes.
B) The transmitter will not operate with low
battery voltage. Change the batteries before the
batteries become too weak for normal operations.
2. Power On Initialization
After the power-on initialization, the transmitter sends
a signal to turn off the fireplace.
3. Thermal Shutdown
When the ambient temperature is more than 99°F, the
transmitter will turn off the fireplace.
A) The LCD will display “HI”.
B) The Transmitter will not function until the room tem-
perature has dropped below 99 degree
Fahrenheit.
4. Low Temperature Condition
When the ambient temperature is less
than 40 degrees Fahrenheit, the LCD will
display “LO”, and NO SIGNAL will be
sent to turn on the appliance.
All functions still remain the same for
both Manual Mode and Thermostat
Mode
5. Child-proof Protection
The child-proof icon will be shown when
the child-proof mode is activated by
pressing the ON button and the OFF
button at the same time for three sec-
onds.
A) Enter childproof mode by pressing
and holding both the ON button and the OFF but-
ton simultaneously for 3 seconds. The Childproof
indicator will be shown on the LCD.
B) Deactivate childproof mode by pressing and hold-
ing the ON button and the OFF button simultane-
ously for 3 seconds again. The Childproof indicator
disappears on the LCD.
C) The transmitter cannot be operated in childproof
mode.
toucH Screen reMote controL operatIon
4. After the signal is sent, the On/up and Off/down but-
tons become flame height controller again.
5. When the light button is flashing, slide up and down on
the arrow buttons will turn the light brightness to HIGH
or Off directly without pressing the light button again to
confirm
aux control (rear Burner on/off control)
The AUX control function is used to turn on or turn
off the rear burner connected to the AC module
of the Signature Command System. Press the
AUX button to turn on or turn off the rear burner.
1. When the rear burner is turned on, the icon
will become solid text and the “ON” icon will
appear below the “AUX” icon.
2. When the rear burner is turned off, the icon will be-
come hollow text and the “ON” icon will disappear.
note: If Smart Mode is entered when rear burner is off,
the rear burner will be turned on automatically; when the
transmitter is in Smart Mode, AUX button will be disabled.
See Smart Mode section for more information.
Setting up Blank Screen or constant Display in Idle
Figure 61
There is an option to
set up how the LCD
displays and func-
tions when the trans-
mitter is in idle. There
are two choices:
1. A) Mode. When
the transmitter is
in idle, the icons
in the “touch area”
(timer, thermostat,
blower, light and
AUX) will disappear, as shown in the figure on the left.
When any of the touch buttons is pressed, those icons
will appear and are ready to operate (default).
2. B) Mode. The transmitter always displays all available
icons showing current status of timer, thermostat,
blower, light and AUX as shown in the figure on the
right.
Press TIMER and THERMO buttons at the same time for
3 seconds to toggle between A) and B).
1. When the current setting is A), touch any place in the
touch area to bring up the icons then press TIMER but-
ton and THERMO button at the same time for 3 sec-
onds. The backlight will flash once to indicate that the
setting has changed to B).
2. When the current setting is B), pressing TIMER button
and THERMO button at the same time for 3 seconds
will switch to A) Mode. The touch area icons will disap-
pear.

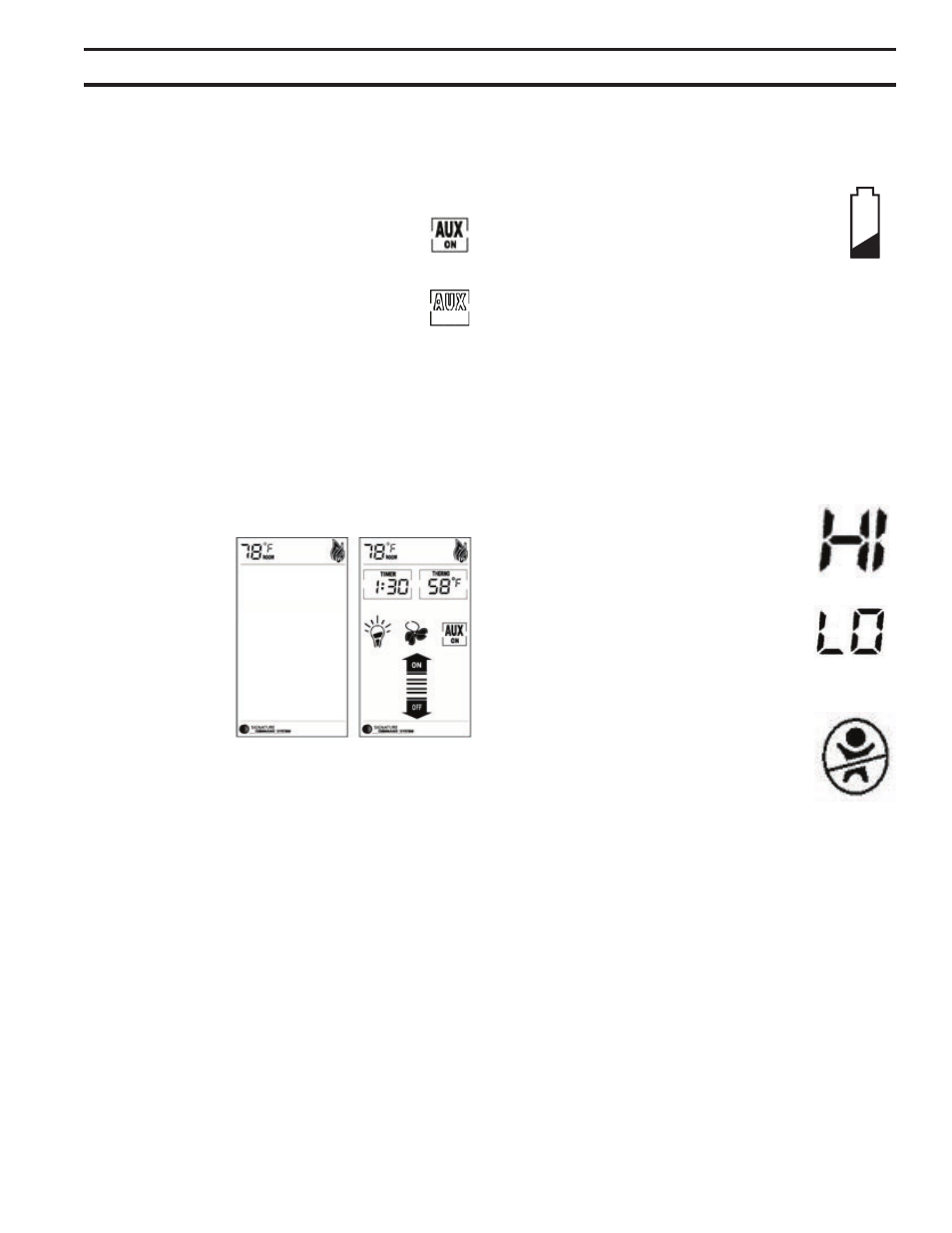

FP2658
