eLectrIcaL InStaLLatIon
caut
Ion
electrical connections should only be
performed by a qualified, licensed electrician.
Main power supply must be turned off before
connecting fans to the main electrical power
supply or performing service.

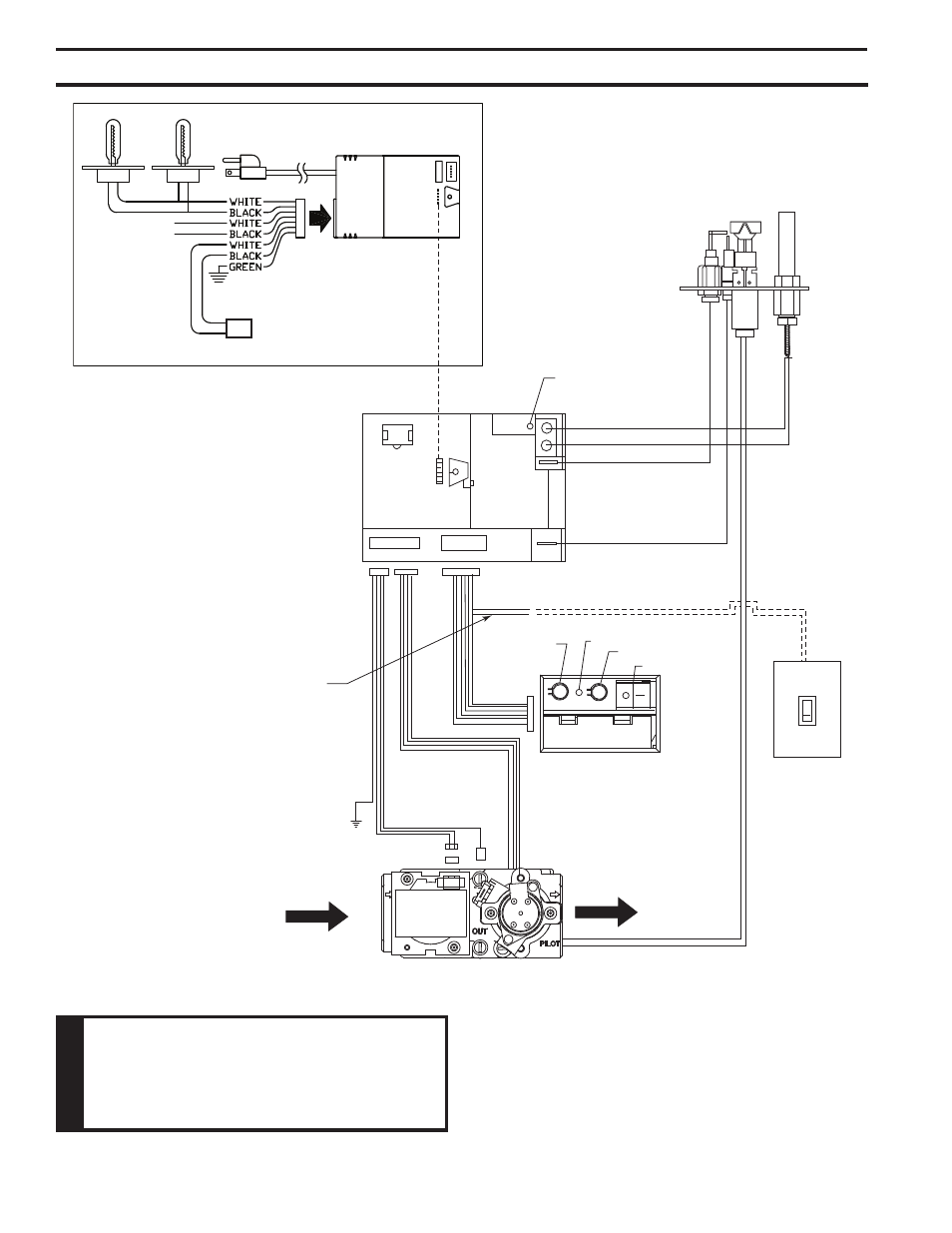

Figure 46 -
Signature Command Wiring Diagram
note: Wall switch wires must
be connected together if a wall
switch is not being used.
