Page 21: Main circuit breaker
MQp20p STaNDBY geNeRaTOR • OpeRaTiON aND paRTS MaNual — Rev. #1 (11/28/11) — page 21
OuTleT CONNeCTORS
The Camlok outlet box has the following connectors
Ground (GRND.)
Neutral (NEUT.)
LEG 1, LEG 2, LEG 3 (3-phase only)
COnnECtOr OutLEt bOx anD MaIn CIrCuIt brEakEr
Ground
Neutral
L1
L1
Ground
(Green)
Neutral
(White)
Leg 1
(Black)
Leg 2
(Red)
Camlok
Panel
Circuit
Breaker
100A
Generator
L2
L2
Green
Green
White
White
Black
Red
Red
Green
White
Red
Black
Black
Ground
Neutral
L1
L1
Ground
(Green)
Neutral
(White)
Leg 1
(Black)
Leg 2
(Red)
Leg 3
(Blue)
Camlok
Panel
Circuit
Breaker
30A
Generator
L2
L3
L2
L3
Green
Green
White
White
Black
Red
Blue
Red
Green
White
Black
Black
Blue
Red
Blue
Single Phase
Three Phase

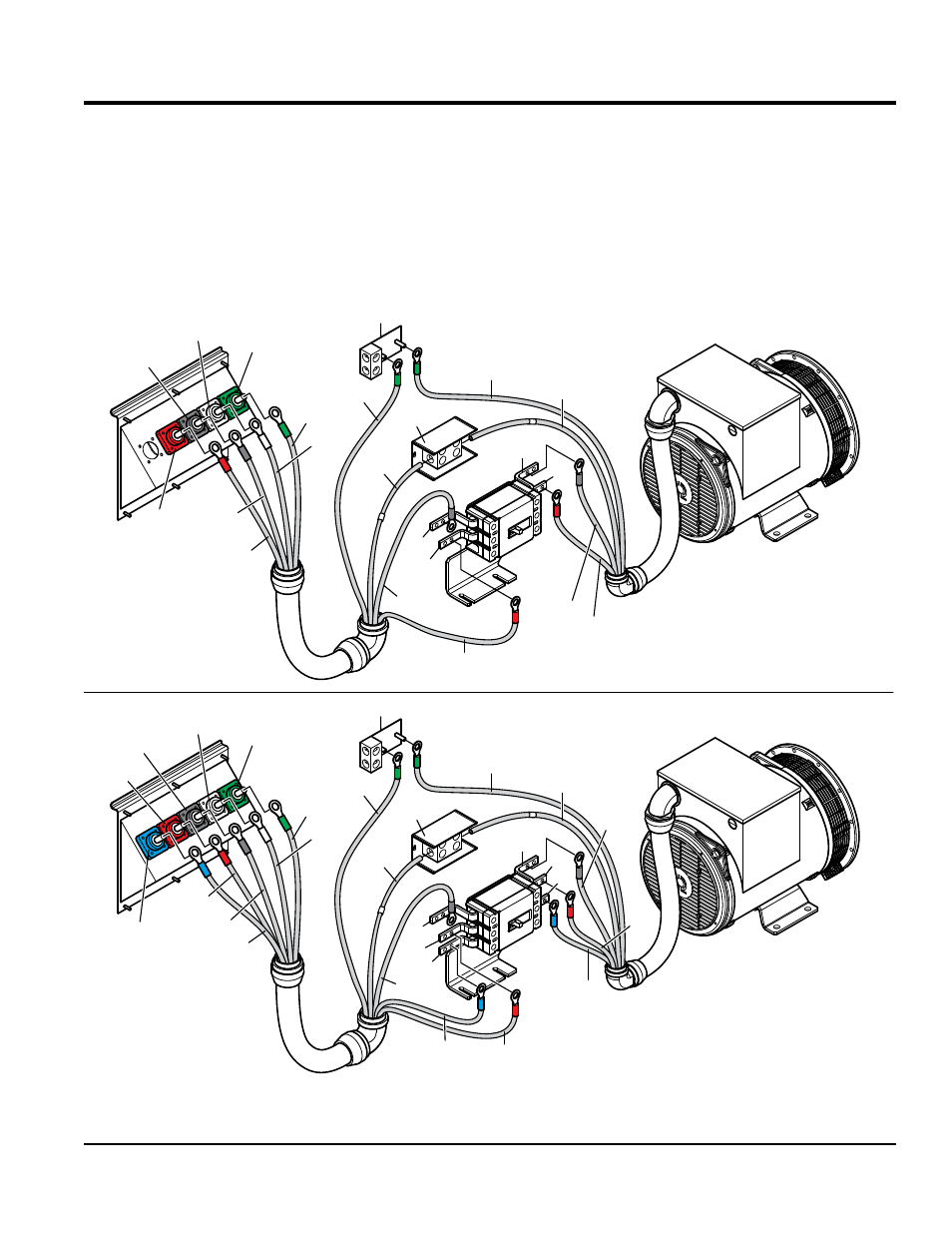

Figure 6. Camlok Box and Circuit Breaker Connections
MaiN CiRCuiT BReakeR
The generator is equipped with a three-pole, 100 or 30
amp, (single/three phase) circuit breaker to protect the
generator from overload.
See Figure 6 for connections.
