MQp20p STaNDBY geNeRaTOR • OpeRaTiON aND paRTS MaNual — Rev. #1 (11/28/11) — page 13
DIMEnSIOnS

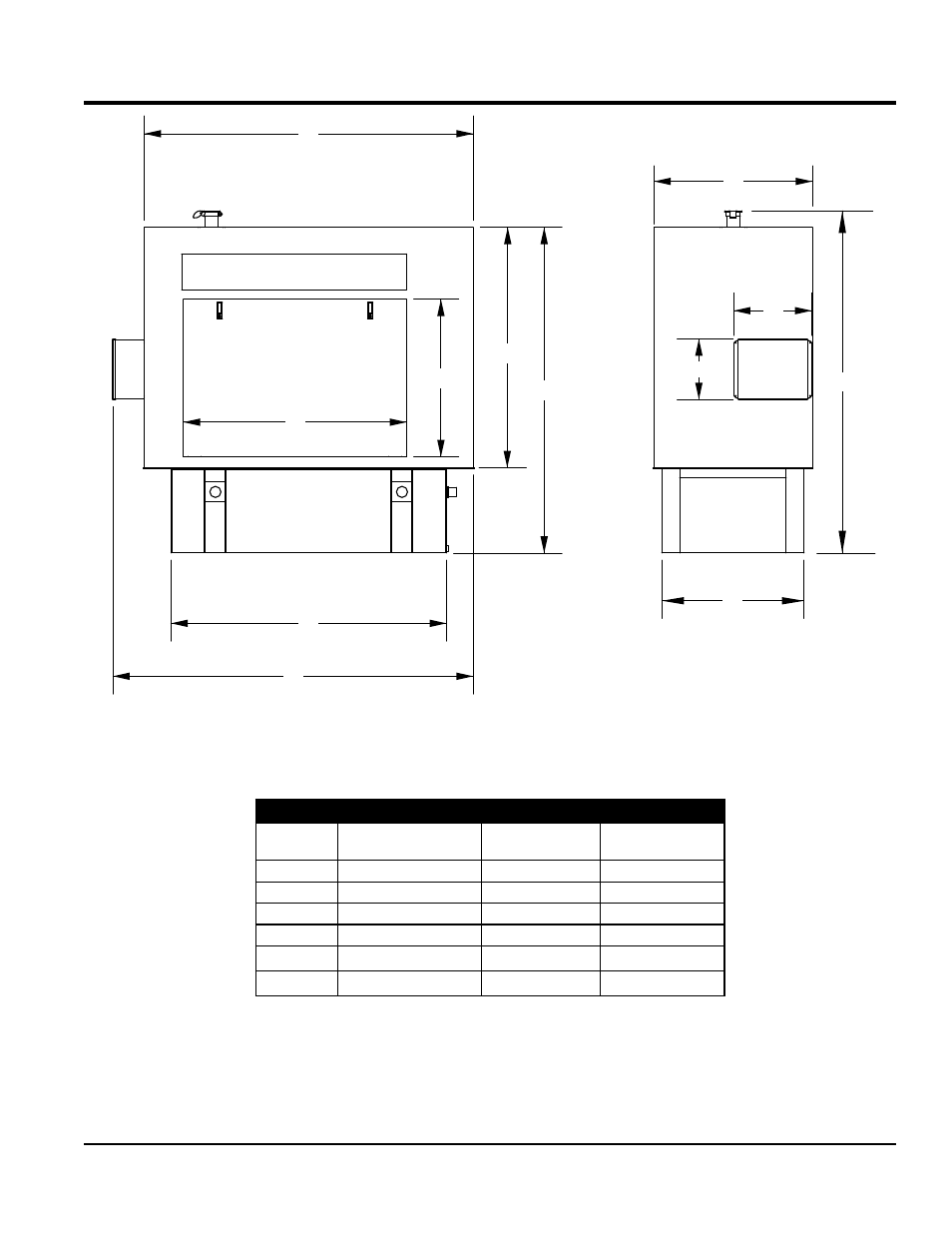

Figure 1. Dimensions
A
G
H
D
L
E
F
C
B
J
M
K
Table 3. Dimensions
Reference
letter
Dimension in. (mm) Reference letter Dimension in. (mm)
A 74 in. (1879.6 mm.) G 50.19 in. (1274.8 mm.)
B 32 in. (812.8 mm.) H 35.31 in. (896.9 mm.)
C 77 in. (1955.8 mm.) J 17.5 in. (444.5 mm.)
D 73.06 in. (1855.7 mm.) K 15 in. (381 mm.)
E 62 in. (1574.8 mm.) L 54.06 in. (1373.1 mm.)
F 82.5 in. (2095.5 mm.) M 35.5 in. (901.7 mm.)
