page 20 —MQp20p STaNDBY geNeRaTOR • OpeRaTiON aND paRTS MaNual — Rev. #1 (11/28/11)

DIgItaL COntrOLLEr PanEL

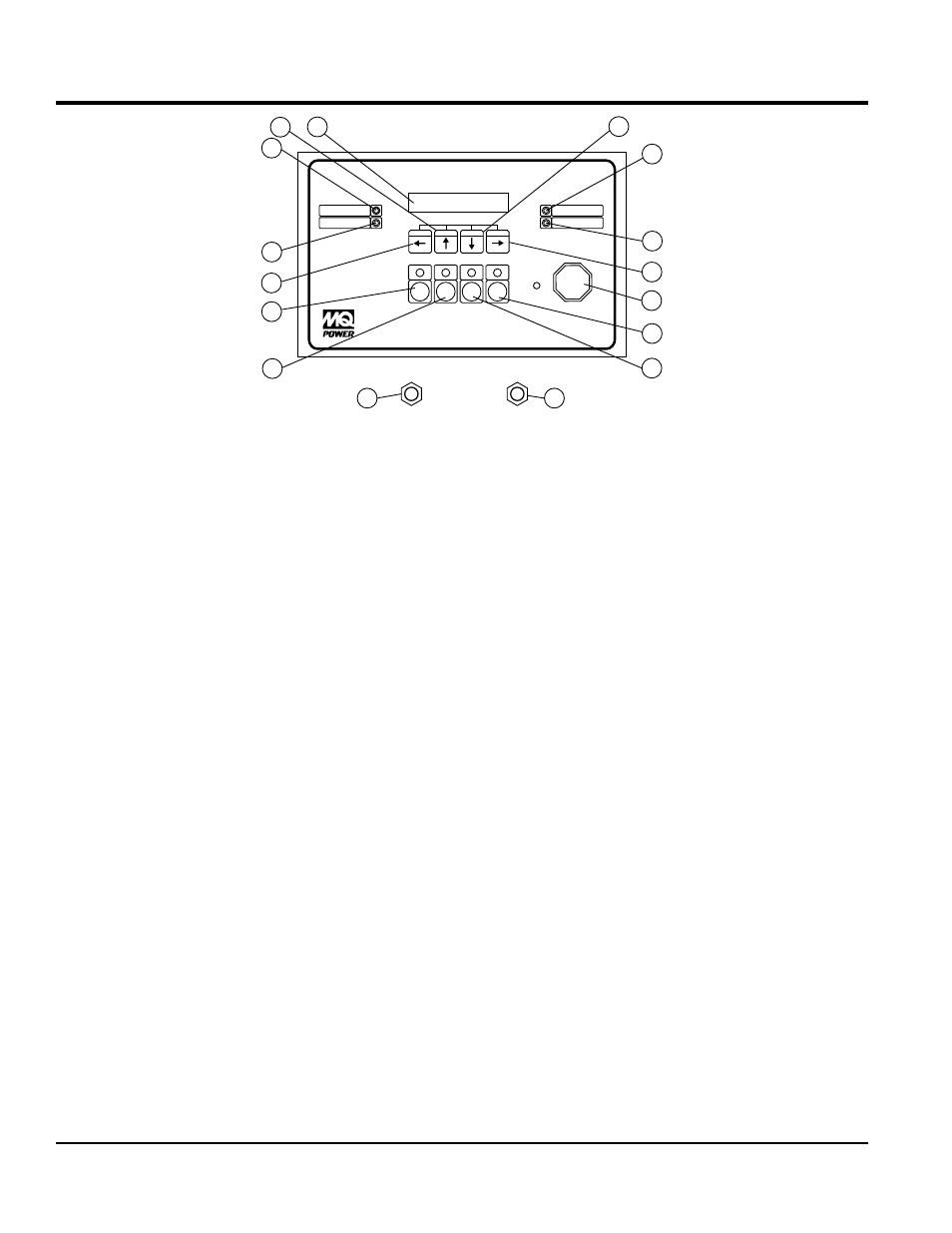

Figure 5. Digital Controller Components

RUN

OFF

AUTO

LOAD

TEST

Vavg

600

Aavg

508

Freq

60.0

Microprocessor Engine Controller

MEC 20

ALARM

SHUTDOWN

EMERGENCY

STOP

READY

SPEED SIGNAL

LAMP TEST

SILENCE

RESET

DECREMENT

INCREMENT

EXIT

ENTER

1

13

14

2

3

6

8

9

10

11

4

5

12

7

FREQUENCY

ADJUST

VOLTAGE

ADJUST

15

16

1.

liquid Crystal Display — Displays voltage, amperage,

frequency,engine information, fault warnings, and other

generator and engine information.

2.

exiT pushbutton — Press button to scroll backwards

through the status menus or programming prompts.

Press and hold for approximately 2 seconds to exit

programming menu when in the programming mode.

3.

DeCReMeNT pushbutton — Press button to change

a programming value while in the programming

mode. Press and hold this button to decrease value

continuously and release when desired value is

displayed. NOTE: The longer the button is held down,

the faster the value will decrease.

4.

iNCReMeNT pushbutton — Press button to change

a programming value while in the programming mode

or to select a desired programming menu loop. Press

and hold this button to increase value continuously and

release when desired value is displayed. NOTE: The

longer the button is held down, the faster the value

will increase.

5.

eNTeR pushbutton — Press button to scroll through

the status menus or programming prompts. This

button is used to enter a programming mode as well

as accepting changed programming values. NOTE:

The longer the button is held down, the faster the next

menu prompt will appear.

6.

RuN pushbutton and leD — Press button to initiate

a manual start signal to the generator. The LED will

light when in RUN mode.

7.

OFF pushbutton and leD — Press button to initiate

a stop signal to the generator. The LED will light when

in OFF mode.

8.

auTO pushbutton and leD — Press button to initiate

automatic operation of the generator. The LED will light

when in AUTO mode.

9.

lOaD TeST pushbutton and leD — Press button to

initiate load test of the generator when connected to

an associated transfer switch. The LED will light when

in LOAD TEST mode.

10.

eMeRgeNCY STOp pushbutton and leD — Press

button to initiate an emergency stop signal to the

generator.

11.

ReaDY leD — Lights when the generator is set for

automatic operation and no shutdown or alarm faults

have been activated.

12.

SpeeD SigNal leD — Lights when the engine speed

signal is detected.

13.

alaRM leD — Lights when any pre-programmed

alarm fault has been activated.

14.

SHuTDOWN leD — Flashes when any pre-

programmed shutdown fault has been activated.

15.

FReQueNCY aDJuST — This screwdriver adjustable

potentiometer is used to fine tune the roll-off frequency

from 54 to 61 Hz.

16.

vOlTage aDJuST — This screwdriver adjustable

potentiometer is used to fine tune the generator output

voltage.
