HBDV7 Series Direct Vent Gas Fireplace

54D8000

7

eleCtRICAl INStAllAtIoN

ReMote WAll MouNteD SWItCH

A remote wall switch and up to fifteen (15) feet of 18 Ga.
wire may be used with this appliance. Attach the wall
switch in a junction box at the desired location on the
wall. Figure 45. Do not extend beyond the wall switch wire
length provided.
Note: extended lengths of wire may cause the
fireplace not to function properly. longer length of
wire is permitted if the wire is made out of larger gauge
(diameter) wire. Always check with local code.

W

ARNING

Do not connect wall switch to (110 V)
circuit.

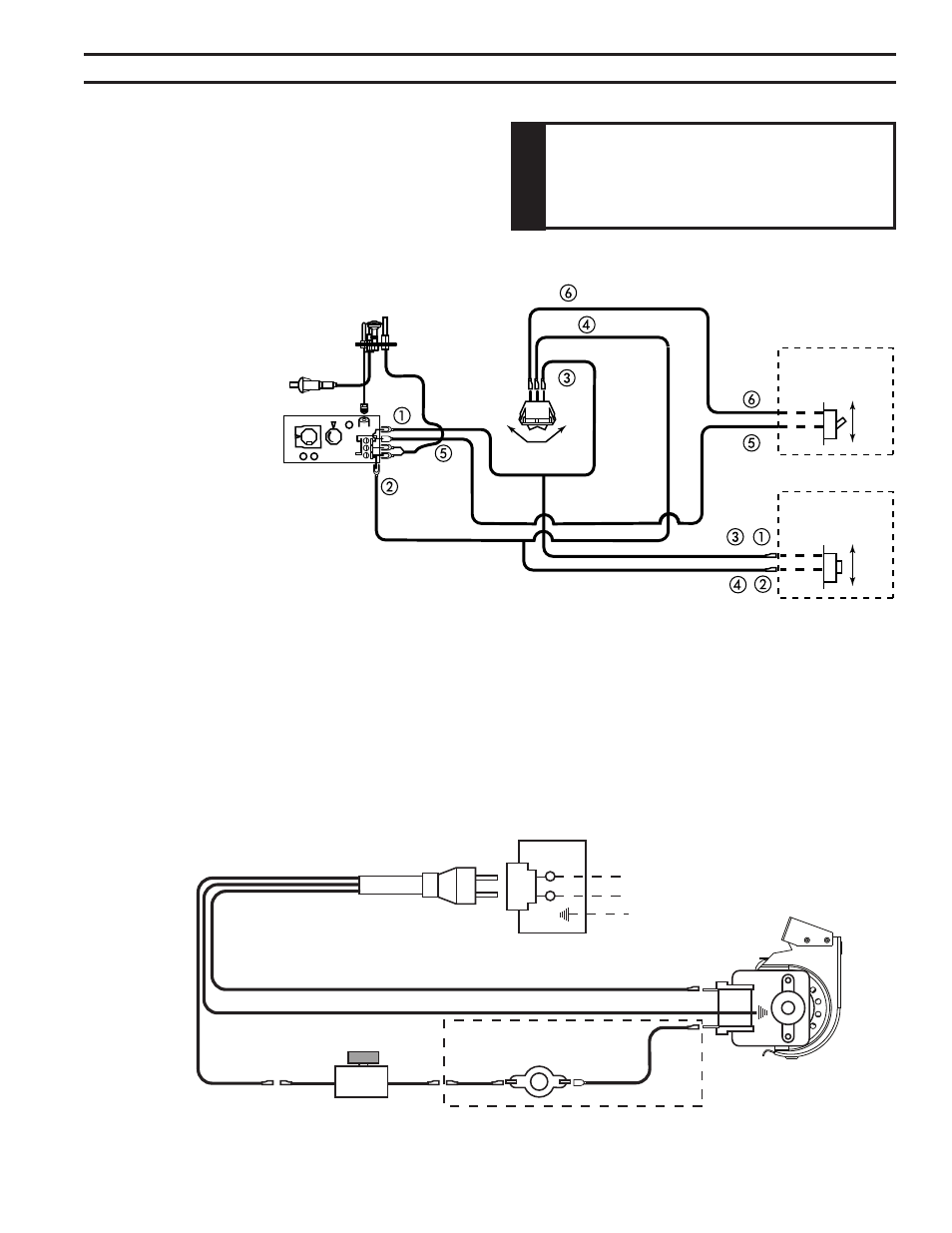

Figure 45 -
Wiring Diagram for Wall Switch

ReMote WAll SWItCH

Position the wall switch. Do not extend beyond the 15 feet of wire.

oPtIoNAl DC ReMote SySteMS

These instructions replace the section entitled Hearth Mount in the Millivolt hand held remote instruc-
tions supplied with the remote.
1. Plug in remote connector wire to remote receiver.
. Connect the wire terminal from the remote receiver. This replaces the 15' wall switch connection to

the switch. Figure 46

3. Mount remote control receiver at junction box (for your wall switch).

oPtIoNAl FAN/BloWeR SySteMS

The junction box for the fan/blower systems has been factory installed. This system requires that 110-
10V AC to be wired to the factory installed junction box before the fireplace is permanently installed.
Figure 46

BLACK

BLACK

WHITE

GREEN

BLACK

BLACK

BLACK

Receptacle

Junction

Box

120VAC

Optional Thermostatic Switch

Speed Control

FP2101
BDV blower wiring

Receptacle

Junction

Box

10VAC

Optional Thermostatic Switch

Speed Control

Figure 46 -
Blower Wiring Diagram

ON

OFF

OPTIONAL REMOTE

WALL SWITCH

ON

OFF

OPTIONAL REMOTE

WALL SWITCH

PILOT

HI

LO

ON

OFF

TH
TP

TH/TP

ON

OFF

RS

FP1980
Dv wiring diagram

White

Black

Blue

Gray

Black

Blue

Black
