HBDV7 Series Direct Vent Gas Fireplace

10

54D8000

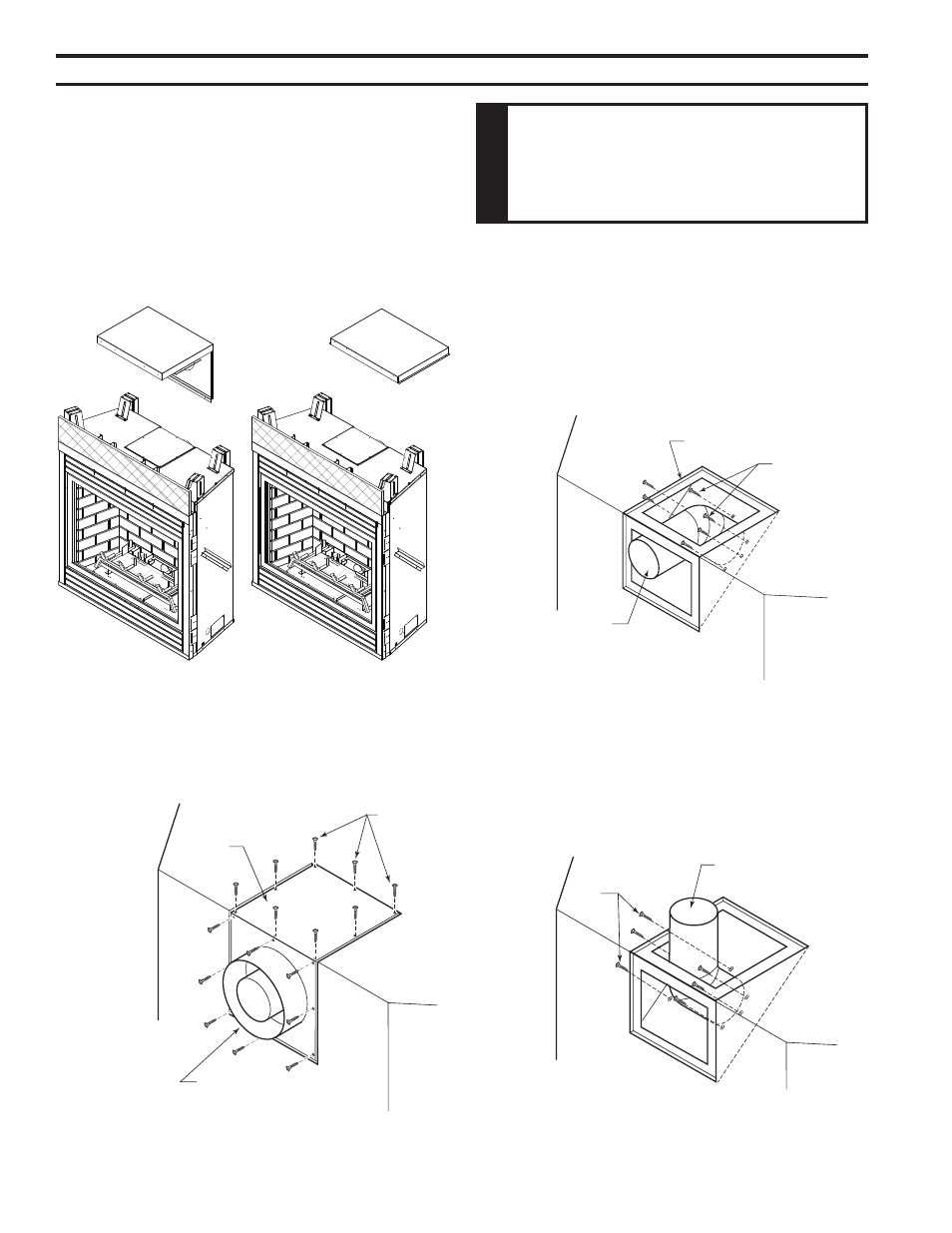

oPtIoNAl toP VeNt APPlICAtIoN

oPtIoNAl toP VeNt APPlICAtIoN

The appliance is shipped as a rear vent unit. If the installa-
tion layout requires the unit to be a top vent configuration
the appliance can be converted by following the steps
below.

Note: ReMoVe AND DISCARD toP Box AND INSu-
lAtIoN oN toP oF tHe uNIt BetWeeN tHe StAND-
oFFS. tHIS Box IS oNly utIlIZeD WItH ReAR-VeNt
APPlICAtIoNS.

W

ARNING

After conversion to top vent configuration,
the 4” (102 mm) flue pipe should be
concentric within the 6B\,” (175 mm) outer
collar (within 1/4”)

FP1992
remove flue pipe

Flue Cover

Screws

Flue Pipe

FP199

Figure 9 -
Remove Flue Pipe

FP1993
attach flue pipe

Flue Pipe

Screws

FP1993

Figure 10 -
Attach Flue Pipe to Top Vent Configurations

FP2584
remove top box

Figure 7 -
Remove Top Box and Insulation

FP584

HBDV300

HBDV400

FP1991
remove screws

Screws

Flue Pipe
Cover

Flue Pipe
Adapter

FP1991

Figure 8 -
Remove 16 Screws from Flue Pipe Adapter
and Flue Pipe Cover

When removing and refitting the plates and adapter be
sure the associated gaskets are undamaged and refitted
as required.
1. Remove the eight (8) screws securing the flue pipe

adapter to the fireplace body. Figure 8

. Set the flue pipe adapter aside, complete with the

gasket. Do not damage the gaskets as the adapter and
gasket must be refitted.

3. Remove the eight (8) screws securing the flue pipe cover

to the top of the intake box and remove the cover and
gasket. Figure 8

4. Remove the six (6) screws securing the flue pipe to the

back of the intake box and remove the pipe and gasket.
Figure 9

5. Replace flue pipe to top of firebox. Ensure the gasket is

in place and undamaged. Secure with six (6) screws.
Figure 10

6. Place the flue pipe cover and gasket removed in step

3 over the flue opening in back of the intake box.

7. Refit the flue pipe adapter and gasket to the top of fire-

place. Secure the adapter with eight (8) screws removed
in step 1.
